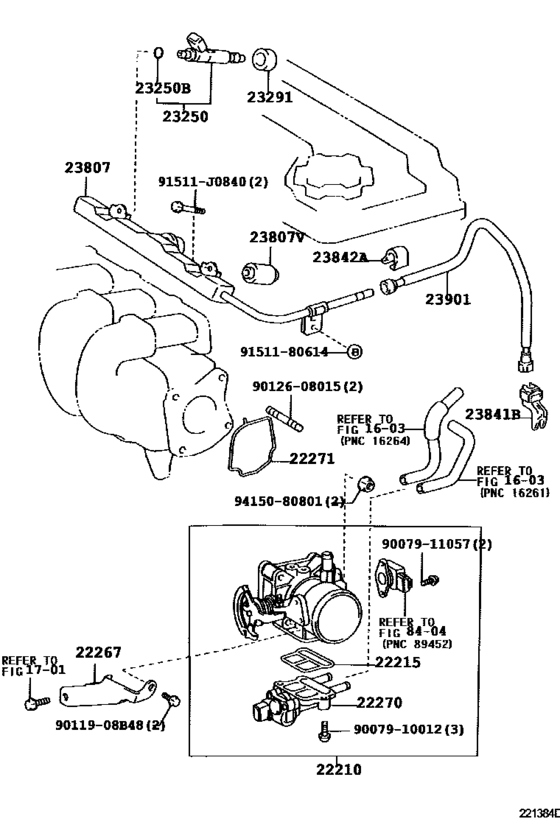

Fuel Injection System ([09.2002 - ] (0209- )1ZZFE) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2002 - 2006
- Sales region
- Japan
- Frame
- ZZE122
- ENGINE
- 1ZZFE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 09.2006
- Gear Shift Type
- 4FC
- Vehicle Model
- RUNX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-22130 Body Assy, Throttle[09.2002 - 04.2004] 1ZZFE..ZZE122,124 |
22210-22130 |
US $1,016.29 |
||
|
22215
|
22215
22215-7A680 Gasket, Throttle Body Cover[09.2002 - 04.2004] 1NZFE..NZE12#; 1ZZFE,2ZZGE..ZZE12# |
22215-7A680 |
from US $3.32 |
||
|
22267
|
22267
22267-22030 Bracket, Throttle Body[09.2002 - 04.2004] 1ZZFE..ZZE122,124 |
22267-22030 |
US $15.14 |
||
|
22270
|
22270
22270-0D040 Valve Assy, Idle Speed Control(For Thlottle Body)[11.2002 - 04.2004] 1ZZFE..ZZE122,124 （Ｌ） |
22270-0D040 |
US $601.33 |
||
|
22270
|
22270
22270-22060 Valve Assy, Idle Speed Control(For Thlottle Body)[09.2002 - 03.2003] 1ZZFE..ZZE122,124 （Ｊ） |
22270-22060 |
US $601.33 |
||
| replacement | |||||
|
22270
|
22270
22270-22061 Valve Assy, Idle Speed Control(For Thlottle Body)[09.2002 - 03.2003] 1ZZFE..ZZE122,124 （Ｊ） |
22270-22061 |
US $568.29 |
||
|
22270
|
22270
22270-22061 Valve Assy, Idle Speed Control(For Thlottle Body)[03.2003 - 04.2004] 1ZZFE..ZZE122,124 （Ｊ） |
22270-22061 |
US $568.29 |
||
|
22271
|
22271
22271-22040 Gasket, Throttle Body[09.2002 - 04.2004] 1ZZFE..ZZE122,124 |
22271-22040 |
from US $3.74 |
||
|
23250
|
23250
23209-22040 Injector Assy, Fuel[09.2002 - 04.2004] 1ZZFE..ZZE122,124 |
23209-22040 |
from US $238.93 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[09.2002 - 04.2004] 1NZFE..NZE12#; 1ZZFE,2ZZGE..ZZE12# |
90301-07024 |
from US $2.65 |
||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[07.2006 - 09.2006] 1NZFE..NZE12#; 1ZZFE,2ZZGE..ZZE12# |
90301-07037 |
from US $2.18 |
||
|
23291
|
23291
23291-22020 Insulator, Injector Vibration[09.2002 - 04.2004] 1ZZFE..ZZE122,124 |
23291-22020 |
from US $2.81 |
||
|
23807
|
23807
23807-22030 Pipe Sub-Assy, Fuel Delivery[09.2002 - 04.2004] 1ZZFE..ZZE122,124 |
23807-22030 |
US $178.21 |
||
| replacement | |||||
|
23807
|
23807
23807-22061 Pipe Sub-Assy, Fuel Delivery[09.2002 - 04.2004] 1ZZFE..ZZE122,124 |
23807-22061 |
from US $87.96 |
||
|
23807V
|
23807V
90561-08055 Spacer, No.1(For Delivery Pipe)[09.2002 - 04.2004] 1ZZFE..ZZE122,124 |
90561-08055 |
US $3.94 |
||
|
23841B
|
23841B
23841-28010
Clamp, Fuel Pipe, No.1(For Efi)
[09.2002 - 04.2004] 1NZFE..NZE12#; 1ZZFE,2ZZGE..ZZE12# |
23841-28010 |
— | ||
| replacement | |||||
|
23841B
|
23841B
23841-21050 Clamp, Fuel Pipe, No.1(For Efi)[09.2002 - 04.2004] 1NZFE..NZE12#; 1ZZFE,2ZZGE..ZZE12# |
23841-21050 |
US $3.94 |
||
|
23842A
|
23842A
23842-22020 Clamp, Fuel Pipe, No.1(For Efi)[09.2002 - 04.2004] 1NZFE..NZE12#; 1ZZFE..ZZE122,124 |
23842-22020 |
US $9.86 |
||
|
23901
|
23901
23901-22140 Tube Sub-Assy, Fuel[09.2002 - 04.2004] 1ZZFE..ZZE122,124 |
23901-22140 |
US $84.91 |
||
|
91511J0840
|
91511J0840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $1.44 |
||
|
9011908B48
|
9011908B48
90119-08B48 New Genuine Part |
90119-08B48 |
US $1.79 |
||
|
9007910012
|
9007910012
90079-10012 SCREW |
90079-10012 |
US $1.97 |
||
|
9007911057
|
9007911057
90079-11057 SCREW WWASHER |
90079-11057 |
US $1.97 |
||
|
9012608015
|
9012608015
90126-08015 Stud |
90126-08015 |
US $3.76 |
||
|
9151180614
|
9151180614
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.25 |
||
|
9415080801
|
9415080801
94150-80801 Nut |
94150-80801 |
US $1.43 |
||
