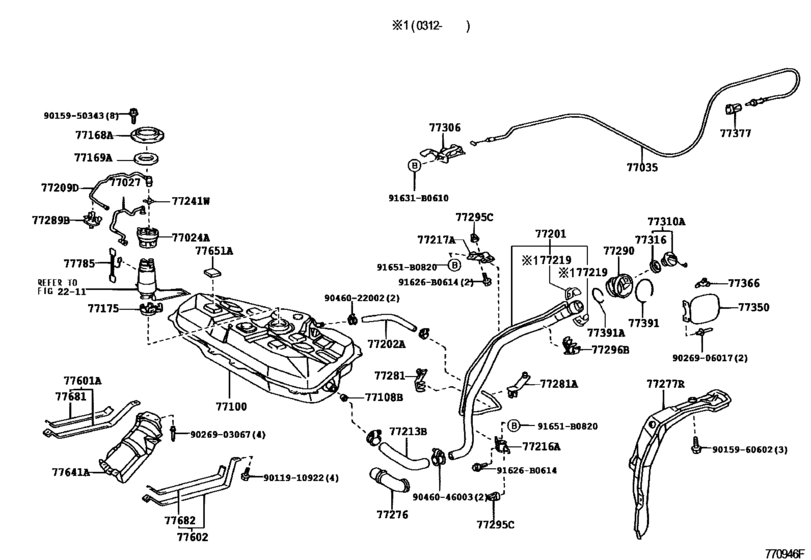

Fuel Tank & Tube ([01.2001 - ] ﾌｭｰｴﾙ ﾀﾝｸ (0101- )NZE121,ZZE122,123) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2002 - 2006
- Sales region
- Japan
- Frame
- ZZE122
- ENGINE
- 1ZZFE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 09.2006
- Gear Shift Type
- 4FC
- Vehicle Model
- RUNX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77024A
|
77024A
77024-12010 Plate Sub-Assy, Fuel Suction[09.2002 - 04.2004] NZE121,ZZE122,123 |
77024-12010 |
from US $44.54 |
||
|
77027
|
77027
77027-12020 Tube Sub-Assy, Fuel Evaporation, No.2[09.2002 - 04.2004] NZE121,ZZE122,123 |
77027-12020 |
from US $19.38 |
||
|
77035
|
77035
77035-12400 Cable Sub-Assy, Fuel Lid Lock Control[09.2002 - 04.2004] NZE12#,ZZE12# |
77035-12400 |
US $23.88 |
||
|
77100
|
77100
77001-12820 Tank Assy, Fuel[09.2002 - 02.2003] NZE121,ZZE122,123 |
77001-12820 |
US $538.72 |
||
| replacement | |||||
|
77100
|
77100
77001-12C40 Tank Assy, Fuel[09.2002 - 02.2003] NZE121,ZZE122,123 |
77001-12C40 |
US $596.96 |
||
|
77100
|
77100
77001-12830 Tank Assy, Fuel[02.2003 - 04.2004] NZE121,ZZE122,123 |
77001-12830 |
US $538.72 |
||
| replacement | |||||
|
77100
|
77100
77001-12C40 Tank Assy, Fuel[02.2003 - 04.2004] NZE121,ZZE122,123 |
77001-12C40 |
US $596.96 |
||
|
77100
|
77100
77001-12C40 Tank Assy, Fuel[11.2005 - 09.2006] NZE121; ZZE122,123 |
77001-12C40 |
US $596.96 |
||
|
77108B
|
77108B
77108-12040 Valve Sub-Assy, Fuel Tank Filler Check[09.2002 - 04.2004] NZE121,ZZE122,123 |
77108-12040 |
US $6.12 |
||
|
77168A
|
77168A
77168-52010 Plate, Fuel Tank Vent Tube Set[09.2002 - 04.2004] NZE121,ZZE122,123 |
77168-52010 |
from US $12.48 |
||
|
77169A
|
77169A
77169-33020 Gasket, Fuel Pump Bracket[04.2004 - 11.2005] NZE121,ZZE122,123 |
77169-33020 |
from US $7.88 |
||
|
77175
|
77175
77175-47010 Support, Fuel Suction, No.2[09.2002 - 04.2004] NZE121,ZZE122,123 |
77175-47010 |
US $13.51 |
||
|
77201
|
77201
77201-12580 Pipe Sub-Assy, Fuel Tank Inlet[09.2002 - 04.2004] NZE12#,ZZE12# |
77201-12580 |
from US $103.14 |
||
|
77201
|
77201
77201-12591 Pipe Sub-Assy, Fuel Tank Inlet[04.2004 - 09.2006] NZE12#,ZZE12# |
77201-12591 |
from US $90.52 |
||
|
77202A
|
77202A
95313-13034 Hose, Fuel, No.1 (For Breather Tube)[09.2002 - 04.2004] NZE121,ZZE122,123 長さ＝３４０ |
95313-13034 |
from US $9.50 |
||
|
77209D
|
77209D
77209-12160 Tube Sub-Assy, Fuel Tank Main[09.2002 - 04.2004] NZE121,ZZE122,123 |
77209-12160 |
US $34.42 |
||
|
77213B
|
77213B
77213-32090 Hose, Fuel Tank To Filler Pipe[09.2002 - 04.2004] NZE121,ZZE122,123 |
77213-32090 |
from US $28.22 |
||
|
77216A
|
77216A
77216-32060 Support, Fuel Tank Filler Pipe, No.1[09.2002 - 04.2004] NZE12#,ZZE12# |
77216-32060 |
from US $7.27 |
||
|
77217A
|
77217A
77217-32050 Support, Fuel Tank Filler Pipe, No.2[09.2002 - 04.2004] NZE12#,ZZE12# |
77217-32050 |
US $12.54 |
||
|
77219
|
77219
77219-52050 Cover, Fuel Tank Filler Pipe[12.2003 - 04.2004] NZE12#,ZZE12# |
77219-52050 |
US $5.53 |
||
|
77241W
|
77241W
77241-33011 Clip, Tube Joint[09.2002 - 04.2004] NZE12#,ZZE12# |
77241-33011 |
from US $0.88 |
||
|
77276
|
77276
77276-12050 Protector, Fuel Hose[09.2002 - 04.2004] NZE12#,ZZE12# |
77276-12050 |
US $24.17 |
||
| replacements | |||||
|
77276
|
77276
77276-12120 Protector, Fuel Hose[09.2002 - 04.2004] NZE12#,ZZE12# |
77276-12120 |
US $17.76 |
||
|
77276
|
77276
77276-12130 Protector, Fuel Hose[09.2002 - 04.2004] NZE12#,ZZE12# |
77276-12130 |
US $29.90 |
||
|
77277R
|
77277R
77277-12170 Protector, Fuel Tank Filler Pipe[09.2002 - 04.2004] NZE12#,ZZE12# |
77277-12170 |
US $37.63 |
||
|
77281
|
77281
77281-32040 Bracket, Fuel Main Tube, No.1[09.2002 - 04.2004] NZE12#,ZZE12# |
77281-32040 |
US $13.62 |
||
|
77281A
|
77281A
77281-12070 Clamp, Fuel Filler Pipe[09.2002 - 04.2004] NZE12#,ZZE12# |
77281-12070 |
US $11.29 |
||
|
77289B
|
77289B
77289-12030 Clamp, Fuel Tube, No.3[09.2002 - 04.2004] NZE121,ZZE122,123 |
77289-12030 |
US $11.71 |
||
|
77290
|
77290
77291-12150 Shield Assy, Fuel Tank Filler Pipe[09.2002 - 04.2004] NZE12#,ZZE12# |
77291-12150 |
US $31.30 |
||
|
77295C
|
77295C
77295-12070 Grommet, Fuel Tube[09.2002 - 04.2004] NZE12#,ZZE12# |
77295-12070 |
US $2.87 |
||
|
77296B
|
77296B
77296-12030 Support, Fuel Tube Protector, No.1[09.2002 - 04.2004] NZE12#,ZZE12# |
77296-12030 |
US $10.93 |
||
|
77306
|
77306
77306-13020 Lever Sub-Assy, Fuel Lid Lock Open[09.2002 - 04.2004] NZE12#,ZZE12# |
77306-13020 |
US $12.72 |
||
|
77310A
|
77310A
77310-48010 Cap Assy, Fuel Tank[09.2002 - 04.2004] NZE12#,ZZE12# |
77310-48010 |
from US $29.52 |
||
|
77316
|
77316
77316-16010 Gasket (For Fuel Tank Cap)[09.2002 - 04.2004] NZE12#,ZZE12# |
77316-16010 |
from US $11.06 |
||
|
77350
|
77350
77350-13080 Lid Assy, Fuel Filler Opening[09.2002 - 04.2004] NZE12#,ZZE12# |
77350-13080 |
US $48.34 |
||
|
77366
|
77366
77360-30080 Spring Assy, Fuel Filler Opening Lid[09.2002 - 04.2004] NZE12#,ZZE12# |
77360-30080 |
from US $3.37 |
||
|
77377
|
77377
77377-12050 Bracket, Fuel Lid Lock Control[09.2002 - 04.2004] NZE12#,ZZE12# |
77377-12050 |
from US $4 |
||
|
77391
|
77391
77391-12040 Ring, Fuel Inlet Box[09.2002 - 04.2004] NZE12#,ZZE12# |
77391-12040 |
US $3.94 |
||
|
77391A
|
77391A
77391-12020 Ring, Fuel Inlet Box[09.2002 - 04.2004] NZE12#,ZZE12# |
77391-12020 |
from US $1.97 |
||
|
77601A
|
77601A
77601-12230 Band Sub-Assy, Fuel Tank, No.1[09.2002 - 04.2004] NZE121,ZZE122,123 |
77601-12230 |
US $20.22 |
||
|
77602
|
77602
77602-12180 Case Sub-Assy, Fuel Tank, Upper[09.2002 - 04.2004] NZE121,ZZE122,123 |
77602-12180 |
US $24.62 |
||
|
77641A
|
77641A
77641-12160 Protector, Fuel Tank, No.1[09.2002 - 04.2004] NZE121,ZZE122,123 |
77641-12160 |
US $20.97 |
||
|
77651A
|
77651A
77651-20090 Cushion, Fuel Tank, No.1[09.2002 - 04.2004] NZE121,ZZE122,123 |
77651-20090 |
US $4.48 |
||
|
77681
|
77681
77681-34030 Seat, Fuel Tank Band, Rh[09.2002 - 04.2004] NZE121,ZZE122,123 |
77681-34030 |
US $15.14 |
||
|
77682
|
77682
77681-32060 Seat, Fuel Tank Band, Rh[09.2002 - 04.2004] NZE121,ZZE122,123 |
77681-32060 |
US $38.30 |
||
|
77785
|
77785
77785-52020 Harness, Fuel Pump[09.2002 - 04.2004] NZE12#,ZZE12# |
77785-52020 |
from US $3.90 |
||
|
91626B0614
|
91626B0614
91626-B0614 BOLT, W/WASHER |
91626-B0614 |
US $1.08 |
||
|
91631B0610
|
91631B0610
91631-B0610 BOLTWWASHER |
91631-B0610 |
from US $0.90 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $3.11 |
||
|
9011910922
|
9011910922
90119-10922 BOLT WWASHER |
90119-10922 |
US $3.05 |
||
|
9015950343
|
9015950343
90159-50343 SCREW, W-WASHER |
90159-50343 |
from US $0.68 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.62 |
||
|
9026903067
|
9026903067
90269-03067 RIVET |
90269-03067 |
from US $0.82 |
||
|
9026906017
|
9026906017
90269-06017 RIVET |
90269-06017 |
from US $1.15 |
||
|
9046022002
|
9046022002
90460-22002 CLAMP |
90460-22002 |
US $9.50 |
||
| replacement | |||||
|
9046022002
|
9046022002
90460-22001 CLAMP |
90460-22001 |
from US $4.23 |
||
|
9046046003
|
9046046003
90460-46003
Clamp (For Fuel Filler Pipe)
|
90460-46003 |
— | ||
| replacement | |||||
|
9046046003
|
9046046003
90460-46005 Clamp (For Fuel Filler Pipe) |
90460-46005 |
from US $2.69 |
||
