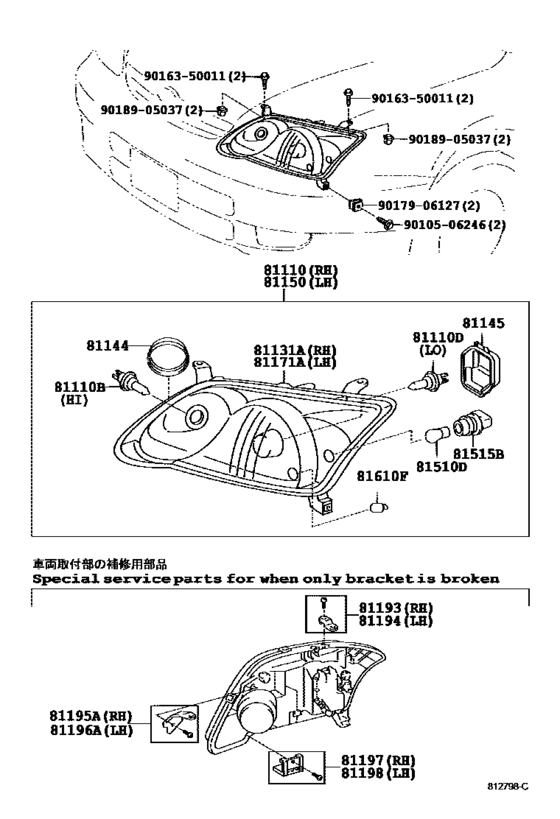

Headlamp ([04.2004 - ] (0404- )) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2002 - 2006
- Sales region
- Japan
- Frame
- ZZE122
- ENGINE
- 1ZZFE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 09.2006
- Gear Shift Type
- 4FC
- Vehicle Model
- RUNX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-13280 Headlamp Assy, Rh[09.2002 - 04.2004] NZE12#,ZZE122,124 |
81110-13280 |
US $452.82 |
||
|
81110
|
81110
81110-13290 Headlamp Assy, Rh[09.2002 - 04.2004] NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ |
81110-13290 |
US $1,557.92 |
||
|
81110
|
81110
81110-13360 Headlamp Assy, Rh[04.2004 - 09.2006] NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ |
81110-13360 |
US $1,572.48 |
||
|
81110B
|
81110B
90981-13079 Bulb(For Headlamp, No.1)[09.2002 - 04.2004] NZE12#,ZZE12# １２Ｖ ５５Ｗ，ハロゲン,ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ |
90981-13079 |
US $29.12 |
||
|
81110D
|
81110D
90981-13079 Bulb(For Headlamp, No.1)[09.2002 - 04.2004] NZE12#,ZZE122,124 １２Ｖ ５５Ｗ，ハロゲン |
90981-13079 |
US $29.12 |
||
|
81131A
|
81131A
81130-13280 Unit, Headlamp, Rh[09.2002 - 04.2004] NZE12#,ZZE122,124 |
81130-13280 |
US $366.60 |
||
|
81131A
|
81131A
81145-13290 Unit, Headlamp, Rh[09.2002 - 04.2004] NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ |
81145-13290 |
US $626.08 |
||
|
81131A
|
81131A
81145-13360 Unit, Headlamp, Rh[04.2004 - 09.2006] NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ |
81145-13360 |
from US $673.59 |
||
|
81144
|
81144
81135-13290 Cover, Headlamp[09.2002 - 04.2004] NZE12#,ZZE12# |
81135-13290 |
US $17.98 |
||
|
81144
|
81144
81139-13330
Cover, Headlamp, No.1
[04.2004 - 09.2006] NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ |
81139-13330 |
— | ||
|
81145
|
81145
81135-13280 Cover, Headlamp, No.2[09.2002 - 04.2004] NZE12#,ZZE122,124 右側 |
81135-13280 |
US $13.98 |
||
|
81145
|
81145
81135-13290 Cover, Headlamp[09.2002 - 04.2004] NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ |
81135-13290 |
US $17.98 |
||
|
81145
|
81145
81135-13360 Cover, Headlamp, No.2[04.2004 - 09.2006] NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ,右側 |
81135-13360 |
US $14.27 |
||
|
81145
|
81145
81175-13280 Cover, Headlamp, No.2[09.2002 - 04.2004] NZE12#,ZZE122,124 左側 |
81175-13280 |
US $13.98 |
||
|
81145
|
81145
81175-13360 Cover, Headlamp, No.2[04.2004 - 09.2006] NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ,左側 |
81175-13360 |
US $14.27 |
||
|
81150
|
81150
81150-13280 Headlamp Assy, Lh[09.2002 - 04.2004] NZE12#,ZZE122,124 |
81150-13280 |
US $452.82 |
||
|
81150
|
81150
81150-13290 Headlamp Assy, Lh[09.2002 - 04.2004] NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ |
81150-13290 |
US $1,557.92 |
||
|
81150
|
81150
81150-13360 Headlamp Assy, Lh[04.2004 - 09.2006] NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ |
81150-13360 |
US $1,572.48 |
||
|
81171A
|
81171A
81170-13280 Unit, Headlamp, Lh[09.2002 - 04.2004] NZE12#,ZZE122,124 |
81170-13280 |
US $321.78 |
||
|
81171A
|
81171A
81185-13290 Unit, Headlamp, Lh[09.2002 - 04.2004] NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ |
81185-13290 |
US $626.08 |
||
|
81171A
|
81171A
81185-13360 Unit, Headlamp, Lh[04.2004 - 09.2006] NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ |
81185-13360 |
US $712.92 |
||
|
81193
|
81193
81193-13020 Retainer, Headlamp Protector, Upper Rh[09.2002 - 04.2004] NZE12#,ZZE12# |
81193-13020 |
US $5.24 |
||
|
81194
|
81194
81193-13020 Retainer, Headlamp Protector, Upper Rh[09.2002 - 04.2004] NZE12#,ZZE12# |
81193-13020 |
US $5.24 |
||
|
81195A
|
81195A
81195-13020 Retainer, Headlamp Protector, Lower Rh[09.2002 - 04.2004] NZE12#,ZZE12# |
81195-13020 |
US $7.86 |
||
|
81196A
|
81196A
81196-13020 Retainer, Headlamp Protector, Lower Lh[09.2002 - 04.2004] NZE12#,ZZE12# |
81196-13020 |
US $7.86 |
||
|
81197
|
81197
81197-13010 Bracket, Headlamp, Lower Rh[09.2002 - 04.2004] NZE12#,ZZE12# |
81197-13010 |
US $9.46 |
||
|
81198
|
81198
81197-13010 Bracket, Headlamp, Lower Rh[09.2002 - 04.2004] NZE12#,ZZE12# |
81197-13010 |
US $9.46 |
||
|
81510D
|
81510D
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[09.2002 - 04.2004] NZE12#,ZZE12# １２Ｖ ２１Ｗ，アンバー,ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ |
90981-15011 |
from US $4.60 |
||
|
81510D
|
81510D
90981-15020 Bulb (For Front Turn Signal Lamp)[09.2002 - 04.2004] NZE12#,ZZE122,124 １２Ｖ ２１Ｗ，アンバー |
90981-15020 |
from US $4.76 |
||
|
81515B
|
81515B
81515-42050 Plug Assy, Front Turn Signal Lamp[09.2002 - 04.2004] NZE12#,ZZE12# ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ |
81515-42050 |
from US $10.41 |
||
|
81515B
|
81515B
90069-81027
Socket, Front Turn Signal Lamp
[09.2002 - 04.2004] NZE12#,ZZE122,124 |
90069-81027 |
— | ||
|
81610F
|
81610F
99132-12050 Bulb (12V 5W)[09.2002 - 04.2004] NZE12#,ZZE12# １２Ｖ ５Ｗ |
99132-12050 |
from US $1.97 |
||
| replacement | |||||
|
81610F
|
81610F
90080-81053 Bulb(For Clearance Lamp)[09.2002 - 04.2004] NZE12#,ZZE12# １２Ｖ ５Ｗ |
90080-81053 |
US $1.01 |
||
|
9010506246
|
9010506246
90105-06246 BOLT |
90105-06246 |
US $1.97 |
||
|
9016350011
|
9016350011
90163-50011 SCREW HEXAGON |
90163-50011 |
US $1.97 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $0.68 |
||
|
9018905037
|
9018905037
90189-05037 GROMMET |
90189-05037 |
US $2.33 |
||
