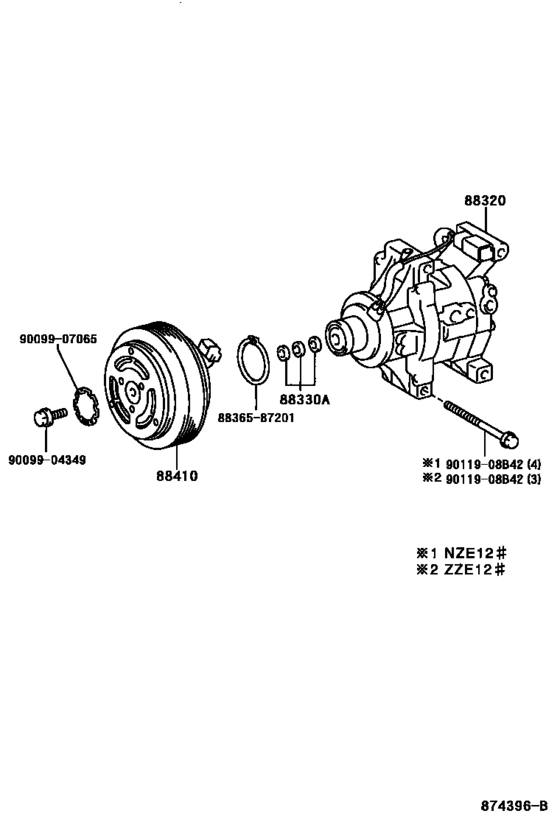

Heating & Air Conditioning - Compressor ([01.2001 - 04.2004] (0101-0404) ; (0404-0609)NZE124,ZZE12#) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2002 - 2006
- Sales region
- Japan
- Frame
- ZZE122
- ENGINE
- 1ZZFE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 09.2006
- Gear Shift Type
- 4FC
- Vehicle Model
- RUNX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-1A491
Compressor Assy, Cooler
[08.2003 - 04.2004] ZZE12# |
88320-1A491 |
— | ||
|
88320
|
88320
88320-1A570
Compressor Assy, Cooler
[09.2002 - 08.2003] ZZE12# |
88320-1A570 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[09.2002 - 04.2004] ZZE12# |
88335-14020 |
from US $1.24 |
||
|
88410
|
88410
88410-1A260 Clutch Assy, Magnet[09.2002 - 08.2003] ZZE12# |
88410-1A260 |
from US $549.33 |
||
|
88410
|
88410
88410-1A290 Clutch Assy, Magnet[08.2003 - 04.2004] ZZE12# |
88410-1A290 |
US $583.86 |
||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.15 |
||
|
8836587201
|
8836587201
88365-87201 Ring, Snap |
88365-87201 |
from US $1.75 |
||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.13 |
