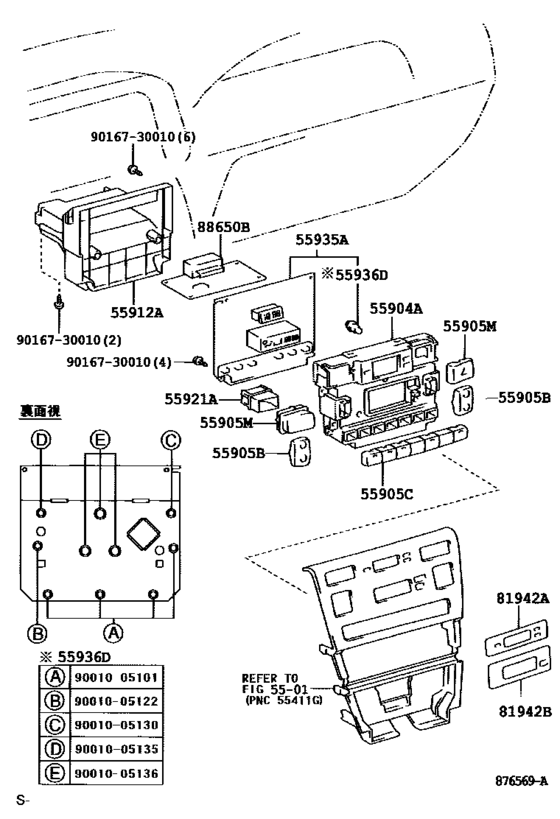

Heating & Air Conditioning - Control & Air Duct ([01.2001 - 09.2006] ｺﾝﾄﾛ-ﾙ ﾊﾟﾈﾙ--ｵ-ﾄ ｴｱｺﾝ (0101-0609)) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2002 - 2006
- Sales region
- Japan
- Frame
- ZZE122
- ENGINE
- 1ZZFE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 09.2006
- Gear Shift Type
- 4FC
- Vehicle Model
- RUNX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55904A
|
55904A
55904-12010 Housing Sub-Assy, Heater Control[09.2002 - 04.2004] NZE12#,ZZE12# |
55904-12010 |
US $126.28 |
||
|
55905B
|
55905B
55905-12670 Knob, Heater Control, No.2[09.2002 - 04.2004] NZE12#,ZZE12# ブロワ |
55905-12670 |
US $9.32 |
||
|
55905B
|
55905B
55905-12680 Knob, Heater Control, No.2[09.2002 - 04.2004] NZE12#,ZZE12# ＴＥＭＰ |
55905-12680 |
US $9.32 |
||
|
55905B
|
55905B
55905-12790 Knob, Heater Control, No.2[04.2004 - 09.2006] NZE12#,ZZE12# ブロワ |
55905-12790 |
US $10.93 |
||
|
55905B
|
55905B
55905-12800 Knob, Heater Control, No.2[04.2004 - 09.2006] NZE12#,ZZE12# ＴＥＭＰ |
55905-12800 |
US $7.71 |
||
|
55905C
|
55905C
55905-12690 Knob, Heater Control, No.3[09.2002 - 04.2004] NZE12#,ZZE12# |
55905-12690 |
US $36.81 |
||
|
55905C
|
55905C
55905-12810 Knob, Heater Control, No.3[04.2004 - 09.2006] NZE12#,ZZE12# |
55905-12810 |
US $42.77 |
||
|
55905M
|
55905M
55905-12650 Knob Sub-Assy, Control[09.2002 - 04.2004] NZE12#,ZZE12# 助手席シートベルト |
55905-12650 |
US $11.36 |
||
|
55905M
|
55905M
55905-12660 Knob Sub-Assy, Control[09.2002 - 04.2004] NZE12#,ZZE12# ハザード |
55905-12660 |
US $9.32 |
||
|
55905M
|
55905M
55905-12770 Knob Sub-Assy, Control[04.2004 - 09.2006] NZE12#,ZZE12# 助手席シートベルト |
55905-12770 |
US $12.52 |
||
|
55905M
|
55905M
55905-12780 Knob Sub-Assy, Control[04.2004 - 09.2006] NZE12#,ZZE12# ハザード |
55905-12780 |
US $7.71 |
||
|
55912A
|
55912A
55912-12060
Housing, Heater Control
[09.2002 - 04.2004] NZE12#,ZZE12# |
55912-12060 |
— | ||
|
55921A
|
55921A
55921-12140 Retainer, Heater Control[09.2002 - 04.2004] NZE12#,ZZE12# ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
55921-12140 |
US $7.98 |
||
|
55935A
|
55935A
55935-12040 Circuit, Center Cluster Module[09.2002 - 04.2004] NZE12#,ZZE12# |
55935-12040 |
US $494.52 |
||
|
55936D
|
55936D
90010-05101 Bulb, Air Conditioner Control[09.2002 - 04.2004] NZE12#,ZZE12# １４Ｖ １．１２Ｗ，グリーンキャップ付き,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,厚さ＝４．２ |
90010-05101 |
from US $1.44 |
||
|
55936D
|
55936D
90010-05122 Blub, Center Cluster Module Switch[09.2002 - 04.2004] NZE12#,ZZE12# １４Ｖ １．４Ｗ，キャップ付き,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
90010-05122 |
US $6.99 |
||
|
55936D
|
55936D
90010-05130 Bulb, Air Conditioner Control[09.2002 - 04.2004] NZE12#,ZZE12# １４Ｖ １．４Ｗ,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
90010-05130 |
US $8.91 |
||
|
55936D
|
55936D
90010-05135 Bulb, Air Conditioner Control[09.2002 - 04.2004] NZE12#,ZZE12# １４Ｖ ０．９１Ｗ,TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
90010-05135 |
from US $5.07 |
||
|
55936D
|
55936D
90010-05136 Bulb, Air Conditioner Control[09.2002 - 04.2004] NZE12#,ZZE12# １４Ｖ １．１２Ｗ，キャップ付き,TYPE E:ｲﾗｽﾄｻﾝｼﾖｳ,厚さ＝４．８ |
90010-05136 |
from US $5.07 |
||
|
81942A
|
81942A
81942-12640 Sheet, Heater Control Name, No.1[09.2002 - 04.2004] ZZE12# |
81942-12640 |
US $18.35 |
||
| replacement | |||||
|
81942A
|
81942A
81942-12810 Sheet, Heater Control Name, No.1[09.2002 - 04.2004] ZZE12# |
81942-12810 |
US $18.17 |
||
|
81942A
|
81942A
81942-12830 Sheet, Heater Control Name, No.1[04.2004 - 09.2006] ZZE12# |
81942-12830 |
US $18.35 |
||
| replacement | |||||
|
81942A
|
81942A
81942-12810 Sheet, Heater Control Name, No.1[04.2004 - 09.2006] ZZE12# |
81942-12810 |
US $18.17 |
||
|
81942B
|
81942B
81942-12650 Sheet, Heater Control Name, No.2[09.2002 - 04.2004] ZZE12# |
81942-12650 |
US $18.35 |
||
| replacement | |||||
|
81942B
|
81942B
81942-12820 Sheet, Heater Control Name, No.2[09.2002 - 04.2004] ZZE12# |
81942-12820 |
US $18.17 |
||
|
81942B
|
81942B
81942-12840 Sheet, Heater Control Name, No.2[04.2004 - 09.2006] ZZE12# |
81942-12840 |
US $18.35 |
||
| replacement | |||||
|
81942B
|
81942B
81942-12820 Sheet, Heater Control Name, No.2[04.2004 - 09.2006] ZZE12# |
81942-12820 |
US $18.17 |
||
|
88650B
|
88650B
88650-1E471
Amplifier Assy, Airconditioner
[09.2002 - 04.2004] NZE12#,ZZE12# |
88650-1E471 |
— | ||
|
9016730010
|
9016730010
90167-30010 SCREW PAN TAPPING |
90167-30010 |
US $1.08 |
||
