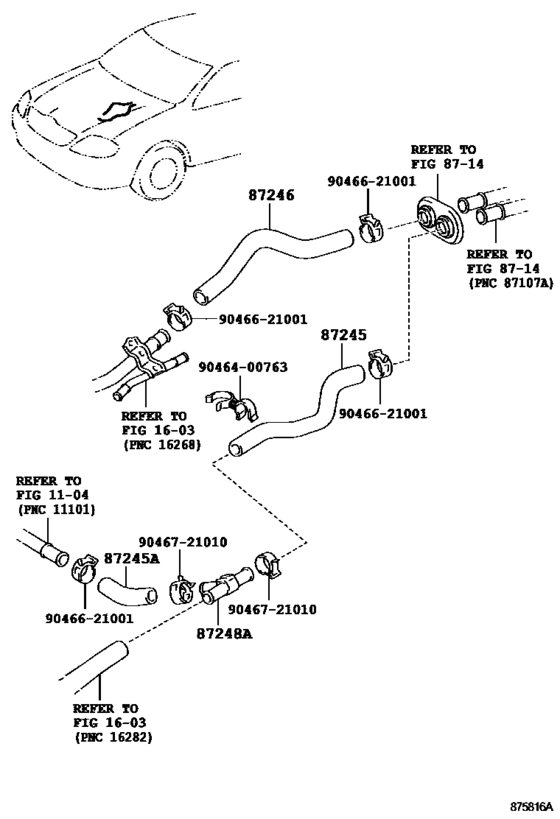

Heating & Air Conditioning - Water Piping ([09.2002 - 09.2005] (0209-0509)ZZE122) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2002 - 2006
- Sales region
- Japan
- Frame
- ZZE122
- ENGINE
- 1ZZFE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 09.2006
- Gear Shift Type
- 4FC
- Vehicle Model
- RUNX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87245
|
87245
87245-1E071 Hose, Heater Water, Inlet[09.2005 - 08.2006] ZZE122 |
87245-1E071 |
US $26.50 |
||
| replacement | |||||
|
87245
|
87245
87245-1E072 Hose, Heater Water, Inlet[09.2005 - 08.2006] ZZE122 |
87245-1E072 |
US $26.50 |
||
|
87245
|
87245
87245-1E180 Hose, Heater Water, Inlet[09.2002 - 04.2004] ZZE122 |
87245-1E180 |
US $24.70 |
||
|
87245A
|
87245A
87245-1E360 Hose, Heater Water, Inlet A[09.2002 - 04.2004] ZZE122 |
87245-1E360 |
US $8.15 |
||
| replacement | |||||
|
87245A
|
87245A
87245-12C60 Hose, Heater Water, Inlet A[09.2002 - 04.2004] ZZE122 |
87245-12C60 |
US $13.26 |
||
|
87246
|
87246
87245-12C60 Hose, Heater Water, Inlet A[09.2005 - 09.2006] ZZE122 |
87245-12C60 |
US $13.26 |
||
|
87246
|
87246
87245-1E080 Hose, Heater Water, Outlet[09.2002 - 04.2004] ZZE122,124 |
87245-1E080 |
US $18.64 |
||
| replacement | |||||
|
87246
|
87246
87245-1E081 Hose, Heater Water, Outlet[09.2002 - 04.2004] ZZE122,124 |
87245-1E081 |
US $18.64 |
||
|
87248A
|
87248A
87248-20380 Pipe, Heater Water Inlet, A[09.2002 - 04.2004] ZZE122 |
87248-20380 |
from US $2.62 |
||
|
9046400763
|
9046400763
90464-00763 Clamp, Hose(For Water Hose) |
90464-00763 |
US $1.38 |
||
|
9046621001
|
9046621001
90466-21001 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90466-21001 |
from US $3.94 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
