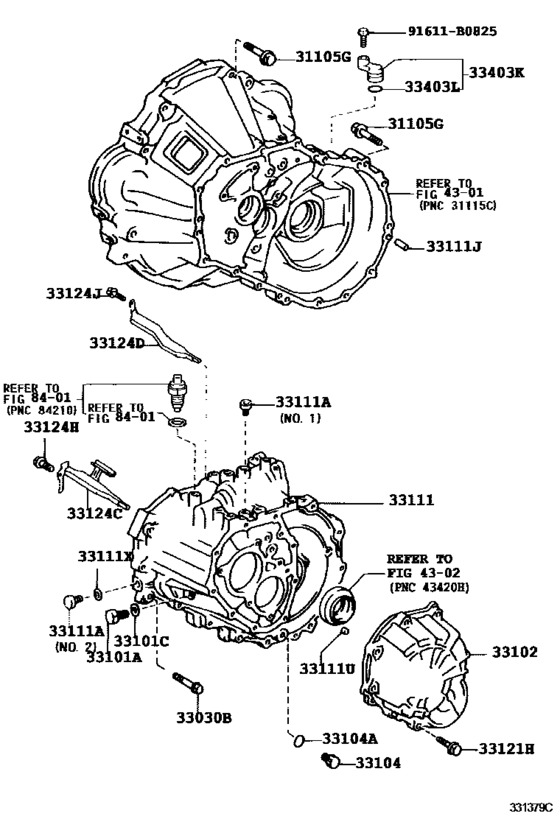

Clutch Housing & Transmission Case (Mtm) ([01.2001 - ] C60 (0101- )6F) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2001 - 2006
- Sales region
- Japan
- Frame
- ZZE123
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- From
- 01.2001
- To
- 09.2006
- Gear Shift Type
- 6F
- Vehicle Model
- RUNX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105G
|
31105G
91619-61255 Bolt(For Transaxle & Engine Setting)[01.2001 - 09.2002] ZZE123..6F ＊１２−１．２５ＰＸ５５−３０ |
91619-61255 |
US $2.15 |
||
|
31105G
|
31105G
91642-81055 Bolt(For Transaxle & Engine Setting)[01.2001 - 09.2002] ZZE123..6F ＊１０−１．２５ＰＸ５５−３０ |
91642-81055 |
US $3.94 |
||
|
33030B
|
33030B
90105-08064
Bolt(For Transaxle Case & Transmission Case Setting)
[01.2001 - 09.2002] ZZE123..6F ＊８−１．２５ＰＸ５１−２８ |
90105-08064 |
— | ||
| replacement | |||||
|
33030B
|
33030B
90105-08353 Bolt(For Head To Camshaft Bearing Cap)[01.2001 - 09.2002] ZZE123..6F ＊８−１．２５ＰＸ５１−２８ |
90105-08353 |
from US $0.92 |
||
|
33030B
|
33030B
90105-08086 Bolt(For Transaxle Case & Transmission Case Setting)[01.2001 - 09.2002] ZZE123..6F ＊８−１．２５ＰＸ４５−２７．５ |
90105-08086 |
US $1.97 |
||
|
33030B
|
33030B
90105-08353 Bolt(For Head To Camshaft Bearing Cap)[09.2002 - 04.2004] ZZE123..6F ＊８−１．２５ＰＸ５０−３０ |
90105-08353 |
from US $0.92 |
||
|
33030B
|
33030B
90105-08430 Bolt(For Transaxle Case & Transmission Case Setting)[07.2006 - 09.2006] ZZE123..6F ＊８−１．２５ＰＸ４５−２７．５ |
90105-08430 |
US $0.79 |
||
|
33101A
|
33101A
90341-18038 Plug(For Manual Transmission Filler)[01.2001 - 09.2002] ZZE123..6F |
90341-18038 |
from US $3.94 |
||
|
33101C
|
33101C
90430-18008 Gasket[01.2001 - 09.2002] ZZE123..6F |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[01.2001 - 09.2002] ZZE123..6F |
90430-T0021 |
US $1.01 |
||
|
33102
|
33102
33102-20050 Cover Sub-Assy, Manual Transmission Case[01.2001 - 09.2002] ZZE123..6F |
33102-20050 |
US $284.79 |
||
|
33104
|
33104
90341-18006 Plug (No magnet)[01.2001 - 09.2002] ZZE123..6F |
90341-18006 |
from US $3.23 |
||
|
33104
|
33104
90341-18033 Plug(For Manual Transmission Filler)[05.2005 - 09.2006] ZZE123..6F |
90341-18033 |
from US $3.40 |
||
|
33104A
|
33104A
90430-18008 Gasket[01.2001 - 09.2002] ZZE123..6F |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33104A
|
33104A
90430-T0021 Gasket(For Manual Transmission Filler Plug)[01.2001 - 09.2002] ZZE123..6F |
90430-T0021 |
US $1.01 |
||
|
33111
|
33111
33111-12230 Case, Manual Transmission[01.2001 - 09.2002] ZZE123..6F |
33111-12230 |
US $512.51 |
||
| replacements | |||||
|
33111
|
33111
33111-12250 Case, Manual Transmission[01.2001 - 09.2002] ZZE123..6F |
33111-12250 |
US $513.97 |
||
|
33111
|
33111
90389-15009 Bush, Bimetal Formed (For Shift & Select Lever Shaft)[01.2001 - 09.2002] ZZE123..6F |
90389-15009 |
US $2.33 |
||
|
33111
|
33111
90101-08166 Bolt, Stud Or Bolt(For Transmission Case)[01.2001 - 09.2002] ZZE123..6F |
90101-08166 |
US $1.46 |
||
|
33111
|
33111
90201-08049 Washer(For Rear Wheel Cylinder)[01.2001 - 09.2002] ZZE123..6F |
90201-08049 |
US $1.10 |
||
|
33111
|
33111
33111-12231 Case, Manual Transmission[09.2002 - 04.2004] ZZE123..6F |
33111-12231 |
US $513.97 |
||
| replacements | |||||
|
33111
|
33111
33111-12250 Case, Manual Transmission[09.2002 - 04.2004] ZZE123..6F |
33111-12250 |
US $513.97 |
||
|
33111
|
33111
90101-08166 Bolt, Stud Or Bolt(For Transmission Case)[09.2002 - 04.2004] ZZE123..6F |
90101-08166 |
US $1.46 |
||
|
33111
|
33111
90201-08049 Washer(For Rear Wheel Cylinder)[09.2002 - 04.2004] ZZE123..6F |
90201-08049 |
US $1.10 |
||
|
33111
|
33111
33111-12232 Case, Manual Transmission[08.2004 - 09.2006] ZZE123..6F |
33111-12232 |
US $513.97 |
||
| replacements | |||||
|
33111
|
33111
33111-12250 Case, Manual Transmission[08.2004 - 09.2006] ZZE123..6F |
33111-12250 |
US $513.97 |
||
|
33111
|
33111
90101-08166 Bolt, Stud Or Bolt(For Transmission Case)[08.2004 - 09.2006] ZZE123..6F |
90101-08166 |
US $1.46 |
||
|
33111
|
33111
90201-08049 Washer(For Rear Wheel Cylinder)[08.2004 - 09.2006] ZZE123..6F |
90201-08049 |
US $1.10 |
||
|
33111A
|
33111A
90341-10065 Plug, Straight, No.1[01.2001 - 09.2002] ZZE123..6F ＮＯ．１ |
90341-10065 |
US $3.94 |
||
|
33111A
|
33111A
90341-18023 Plug, W/head Straight Screw, No.1[01.2001 - 09.2002] ZZE123..6F ＮＯ．２ |
90341-18023 |
from US $3.40 |
||
|
33111J
|
33111J
90250-08054 Pin, Straight[01.2001 - 09.2002] ZZE123..6F 長さ＝２３，外径＝８ |
90250-08054 |
from US $0.98 |
||
|
33111U
|
33111U
90253-11001 Pin, Ring(For Camshaft Bearing Cap Setting)[01.2001 - 09.2002] ZZE123..6F 長さ＝１１，外径＝１１ |
90253-11001 |
US $2.15 |
||
|
33111X
|
33111X
90430-18008 Gasket[01.2001 - 09.2002] ZZE123..6F |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
33111X
|
33111X
90430-T0021 Gasket(For Manual Transmission Filler Plug)[01.2001 - 09.2002] ZZE123..6F |
90430-T0021 |
US $1.01 |
||
|
33121H
|
33121H
90119-08429 Bolt, W/washer(For Transmission Case Cover)[05.2005 - 09.2006] ZZE123..6F |
90119-08429 |
US $1.97 |
||
|
33121H
|
33121H
91611-60835 Bolt(For Clutch Release Cylinder Setting)[01.2001 - 09.2002] ZZE123..6F |
91611-60835 |
from US $1.61 |
||
|
33124C
|
33124C
33124-20050 Pipe, Oil Receiver, No.1(Mtm)[01.2001 - 09.2002] ZZE123..6F |
33124-20050 |
US $5.59 |
||
|
33124D
|
33124D
33124-20060 Pipe, Oil Receiver, No.2(Mtm)[01.2001 - 09.2002] ZZE123..6F |
33124-20060 |
US $13.29 |
||
|
33124H
|
33124H
91611-G0820 Bolt[01.2001 - 09.2002] ZZE123..6F |
91611-G0820 |
from US $1.21 |
||
|
33124J
|
33124J
91611-G0820 Bolt[01.2001 - 09.2002] ZZE123..6F |
91611-G0820 |
from US $1.21 |
||
|
33403K
|
33403K
33403-35230 Cover Sub-Assy, Speedometer Driven Hole[01.2001 - 09.2002] ZZE123..6F |
33403-35230 |
from US $19.82 |
||
|
33403L
|
33403L
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[01.2001 - 09.2002] ZZE123..6F |
96711-24030 |
from US $2.20 |
||
|
91611B0825
|
91611B0825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
