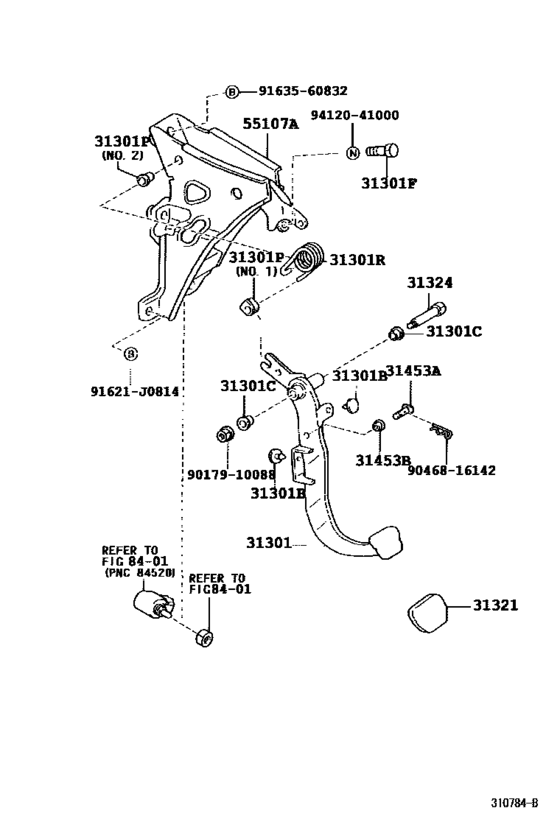

Clutch Pedal & Flexible Hose ([01.2001 - ] (0101- )6F) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2001 - 2006
- Sales region
- Japan
- Frame
- ZZE123
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- From
- 01.2001
- To
- 09.2006
- Gear Shift Type
- 6F
- Vehicle Model
- RUNX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31301
|
31301
31301-12450
Pedal Sub-Assy, Clutch
[01.2001 - 09.2002] ZZE123..6F |
31301-12450 |
— | ||
|
31301B
|
31301B
90541-06036 Cushion, No.1(For Clutch Pedal)[01.2001 - 09.2002] ZZE123..6F |
90541-06036 |
from US $0.90 |
||
| replacement | |||||
|
31301B
|
31301B
90541060361
CUSHION
[01.2001 - 09.2002] ZZE123..6F |
90541060361 |
— | ||
|
31301C
|
31301C
90386-13015 Bush(For Clutch Pedal)[01.2001 - 09.2002] ZZE123..6F |
90386-13015 |
from US $0.64 |
||
|
31301F
|
31301F
90101-10369 Bolt(For Clutch Pedal Stopper)[01.2001 - 09.2002] ZZE123..6F |
90101-10369 |
from US $1.31 |
||
|
31301P
|
31301P
90386-05017 Bush(For Clutch Pedal Turnover)[01.2001 - 09.2002] ZZE123..6F ＮＯ．１ |
90386-05017 |
from US $1.85 |
||
|
31301P
|
31301P
90389-05019 Bush(For Clutch Pedal Turnover)[01.2001 - 09.2002] ZZE123..6F ＮＯ．２ |
90389-05019 |
US $3.20 |
||
|
31301R
|
31301R
90949-03100 Spring, Compression(For Turn Over Spring Seat)[01.2001 - 09.2002] ZZE123..6F |
90949-03100 |
US $7.86 |
||
|
31321
|
31321
31321-52010 Pad, Brake Pedal[01.2001 - 09.2002] ZZE123..6F |
31321-52010 |
from US $1.99 |
||
|
31324
|
31324
90109-10167 Shaft, Clutch Pedal[01.2001 - 09.2002] ZZE123..6F |
90109-10167 |
US $3.40 |
||
|
31453A
|
31453A
90249-08243 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[01.2001 - 09.2002] ZZE123..6F 長さ＝３０ |
90249-08243 |
US $2.80 |
||
|
31453B
|
31453B
90386-08002 Bush(For Clutch Pedal Over Center Spring Pin)[01.2001 - 09.2002] ZZE123..6F |
90386-08002 |
from US $3.22 |
||
|
55107A
|
55107A
55107-12200 Support Sub-Assy, Clutch Pedal[01.2001 - 09.2002] ZZE123..6F |
55107-12200 |
US $45.43 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $0.99 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.82 |
||
|
9163560832
|
9163560832
91635-60832 New Genuine Part |
91635-60832 |
US $1.43 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.76 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
