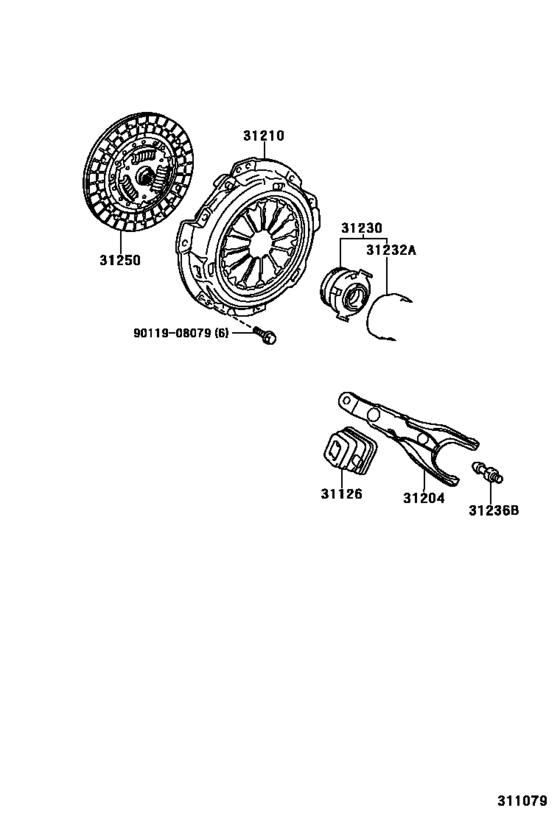

Clutch & Release Fork ([01.2001 - ] (0101- )6F) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2001 - 2006
- Sales region
- Japan
- Frame
- ZZE123
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- From
- 01.2001
- To
- 09.2006
- Gear Shift Type
- 6F
- Vehicle Model
- RUNX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-12051 Boot, Clutch Release Fork[01.2001 - 09.2002] ZZE123..6F |
31126-12051 |
from US $11.29 |
||
|
31204
|
31204
31204-17010 Fork Sub-Assy, Clutch Release[01.2001 - 09.2002] ZZE123..6F |
31204-17010 |
from US $45.49 |
||
|
31210
|
31210
31210-12250
Cover Assy, Clutch
[07.2005 - 01.2006] ZZE123..6F |
31210-12250 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-12291 Cover Assy, ClutchCLUTCH [07.2005 - 01.2006] ZZE123..6F |
31210-12291 |
from US $143.09 |
||
|
31210
|
31210
31210-12251 Cover Assy, Clutch[02.2006 - 09.2006] ZZE123..6F |
31210-12251 |
US $122.30 |
||
| replacement | |||||
|
31210
|
31210
31210-12291 Cover Assy, ClutchCLUTCH [02.2006 - 09.2006] ZZE123..6F |
31210-12291 |
from US $143.09 |
||
|
31210
|
31210
31210-20380 Cover Assy, Clutch[01.2001 - 09.2002] ZZE123..6F |
31210-20380 |
US $154.34 |
||
| replacement | |||||
|
31210
|
31210
31210-12291 Cover Assy, ClutchCLUTCH [01.2001 - 09.2002] ZZE123..6F |
31210-12291 |
from US $143.09 |
||
|
31230
|
31230
31230-12191 Bearing Assy, Clutch Release[01.2001 - 09.2002] ZZE123..6F |
31230-12191 |
from US $35.57 |
||
|
31232A
|
31232A
31232-12070 Clip, Release Bearing Hub[01.2001 - 09.2002] ZZE123..6F |
31232-12070 |
US $3.58 |
||
|
31236B
|
31236B
31236-12020 Support, Release Fork[01.2001 - 09.2002] ZZE123..6F |
31236-12020 |
from US $8.79 |
||
|
31250
|
31250
31250-12360
Disc Assy, Clutch
[01.2001 - 09.2001] ZZE123..6F |
31250-12360 |
— | ||
| replacement | |||||
|
31250
|
31250
31250-12361 Disc Assy, Clutch[01.2001 - 09.2001] ZZE123..6F |
31250-12361 |
from US $103.43 |
||
|
31250
|
31250
31250-12550 Disc Assy, Clutch[12.2005 - 09.2006] ZZE123..6F |
31250-12550 |
US $116.48 |
||
|
31250
|
31250
31250-20280 Disc Assy, Clutch[10.2001 - 09.2002] ZZE123..6F |
31250-20280 |
US $116.48 |
||
| replacement | |||||
|
31250
|
31250
31250-12570 Disc Assy, Clutch[10.2001 - 09.2002] ZZE123..6F |
31250-12570 |
from US $144.51 |
||
|
9011908079
|
9011908079
90119-08079 Bolt(For Transmission Input Damper Cover & Flywheel) |
90119-08079 |
from US $0.64 |
||
