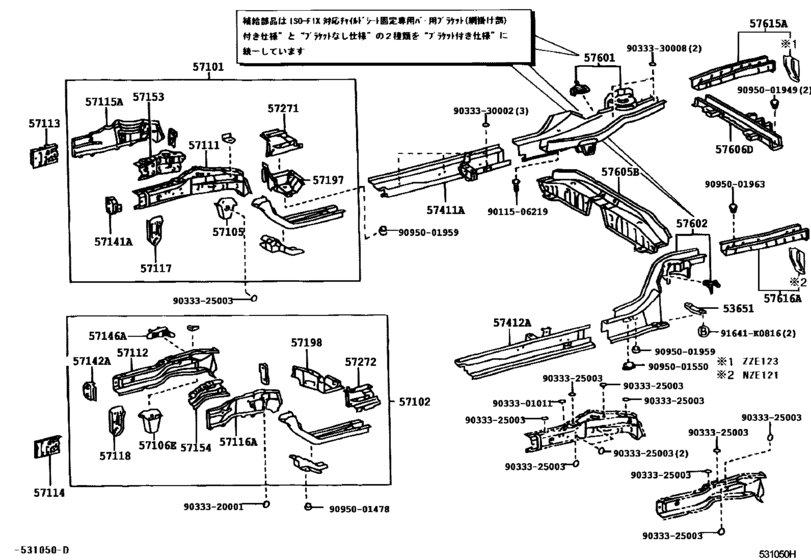

Floor Side Member ([01.2001 - 09.2002] (0101-0209)NZE121,ZZE123) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2001 - 2006
- Sales region
- Japan
- Frame
- ZZE123
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- From
- 01.2001
- To
- 09.2006
- Gear Shift Type
- 6F
- Vehicle Model
- RUNX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53651
|
53651
53651-32010 Brace, Rear Floor Side Member[01.2001 - 09.2002] NZE121,ZZE123 |
53651-32010 |
US $5.39 |
||
|
57101
|
57101
57101-12890 Member Sub-Assy, Front Side, Rh[01.2001 - 05.2001] NZE12#,ZZE123 |
57101-12890 |
US $783.33 |
||
|
57101
|
57101
57101-1A290 Member Sub-Assy, Front Side, Rh[05.2001 - 09.2002] NZE12#,ZZE123 |
57101-1A290 |
US $984.26 |
||
|
57101
|
57101
57101-1A330 Member Sub-Assy, Front Side, Rh[09.2002 - 04.2004] NZE12#,ZZE12# |
57101-1A330 |
from US $689.66 |
||
|
57102
|
57102
57102-12810 Member Sub-Assy, Front Side, Lh[01.2001 - 05.2001] NZE12#;ZZE123..6F |
57102-12810 |
US $783.33 |
||
|
57102
|
57102
57102-1A270 Member Sub-Assy, Front Side, Lh[05.2001 - 09.2002] NZE12#;ZZE123..6F |
57102-1A270 |
US $898.35 |
||
|
57102
|
57102
57102-1A310 Member Sub-Assy, Front Side, Lh[09.2002 - 04.2004] ZZE123..6F;NZE12#,ZZE122,124 |
57102-1A310 |
US $898.35 |
||
|
57105
|
57105
57105-12140 Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh[01.2001 - 05.2001] NZE12#,ZZE123 |
57105-12140 |
US $52.85 |
||
|
57106E
|
57106E
57106-12130 Bracket Sub-Assy, Front Suspension Member Mounting, Front Lh[01.2001 - 05.2001] NZE12#;ZZE123..6F |
57106-12130 |
US $54.16 |
||
|
57111
|
57111
57111-12210 Member, Front Side, Rh[01.2001 - 05.2001] NZE12#,ZZE123 |
57111-12210 |
from US $205.30 |
||
|
57111
|
57111
57111-12240 Member, Front Side, Rh[05.2001 - 09.2002] NZE12#,ZZE123 |
57111-12240 |
from US $205.30 |
||
|
57112
|
57112
57112-12170 Member, Front Side, Lh[01.2001 - 05.2001] NZE12#,ZZE123 |
57112-12170 |
from US $203.84 |
||
|
57113
|
57113
57113-12190 Extension, Front Side Member, Rh[01.2001 - 09.2002] NZE12#,ZZE123 |
57113-12190 |
US $23.59 |
||
|
57114
|
57114
57114-12160 Extension, Front Side Member, Lh[01.2001 - 09.2002] NZE12#,ZZE123 |
57114-12160 |
US $23.59 |
||
|
57115A
|
57115A
57115-12080 Plate, Front Side Member, Outer Rh[01.2001 - 05.2001] NZE12#,ZZE123 |
57115-12080 |
from US $80.08 |
||
|
57116A
|
57116A
57116-12080 Plate, Front Side Member, Outer Lh[01.2001 - 05.2001] NZE12#,ZZE123 |
57116-12080 |
US $74.26 |
||
|
57117
|
57117
57117-12130 Plate Sub-Assy, Front Side Member, Front Rh[01.2001 - 05.2001] NZE12#,ZZE123 |
57117-12130 |
from US $19.66 |
||
|
57118
|
57118
57118-12130 Plate Sub-Assy, Front Side Member, Front Lh[01.2001 - 05.2001] NZE12#,ZZE123 |
57118-12130 |
US $19.66 |
||
|
57141A
|
57141A
57141-12050 Support, Front Bumper Arm, Rh[01.2001 - 05.2001] NZE12#,ZZE123 |
57141-12050 |
US $25.92 |
||
|
57141A
|
57141A
57141-12080 Support, Front Bumper Arm, Rh[09.2002 - 04.2004] NZE12#,ZZE12# |
57141-12080 |
US $20.68 |
||
|
57142A
|
57142A
57142-12060 Support, Front Bumper Arm, Lh[01.2001 - 05.2001] NZE12#,ZZE123 |
57142-12060 |
US $28.54 |
||
|
57142A
|
57142A
57142-12090 Support, Front Bumper Arm, Lh[09.2002 - 04.2004] NZE12#,ZZE12# |
57142-12090 |
US $23.88 |
||
|
57146A
|
57146A
57146-12020 Reinforcement, Front Side Member, Rear Lh[01.2001 - 05.2001] NZE12#,ZZE123 |
57146-12020 |
US $7.28 |
||
|
57153
|
57153
57016-12080 Reinforcement, Front Side Member, No.2 Rh[01.2001 - 05.2001] NZE12#,ZZE123 |
57016-12080 |
from US $56.49 |
||
|
57154
|
57154
57017-12060 Reinforcement, Front Side Member, No.2 Lh[01.2001 - 09.2002] NZE12#;ZZE123..6F |
57017-12060 |
US $45.86 |
||
|
57197
|
57197
57197-12030 Box, Torque, Front Rh[01.2001 - 05.2001] NZE12#,ZZE123 |
57197-12030 |
US $52.85 |
||
|
57198
|
57198
57198-12030 Box, Torque, Front Lh[01.2001 - 05.2001] NZE12#,ZZE123 |
57198-12030 |
US $52.85 |
||
|
57271
|
57271
57271-12090 Extension, Steering Gear Box Support Member, Rh[01.2001 - 05.2001] NZE12#,ZZE123 |
57271-12090 |
US $33.05 |
||
|
57272
|
57272
57272-12090 Extension, Steering Gear Box Suport Member, Lh[01.2001 - 05.2001] NZE12#,ZZE123 |
57272-12090 |
US $33.05 |
||
|
57411A
|
57411A
57401-12570 Member, Floor Side, Inner Rh[01.2001 - 09.2002] NZE12#,ZZE123 |
57401-12570 |
US $214.03 |
||
| replacement | |||||
|
57411A
|
57411A
57401-12630 Member, Floor Side, Inner Rh[01.2001 - 09.2002] NZE12#,ZZE123 |
57401-12630 |
US $215.49 |
||
|
57411A
|
57411A
57401-12630 Member, Floor Side, Inner Rh[04.2004 - 05.2006] NZE12#,ZZE12# |
57401-12630 |
US $215.49 |
||
|
57412A
|
57412A
57402-12570 Member, Floor Side, Inner Lh[01.2001 - 09.2002] NZE12#,ZZE123 |
57402-12570 |
US $215.49 |
||
| replacement | |||||
|
57412A
|
57412A
57402-12680 Member, Floor Side, Inner Lh[01.2001 - 09.2002] NZE12#,ZZE123 |
57402-12680 |
from US $172.26 |
||
|
57412A
|
57412A
57402-12590 Member, Floor Side, Inner Lh[09.2002 - 04.2004] NZE12#,ZZE12# |
57402-12590 |
US $214.03 |
||
| replacement | |||||
|
57412A
|
57412A
57402-12680 Member, Floor Side, Inner Lh[09.2002 - 04.2004] NZE12#,ZZE12# |
57402-12680 |
from US $172.26 |
||
|
57412A
|
57412A
57402-12680 Member, Floor Side, Inner Lh[06.2006 - 09.2006] NZE12#,ZZE12# |
57402-12680 |
from US $172.26 |
||
|
57601
|
57601
57601-13907 Member Sub-Assy, Rear Floor Side, Rh[09.2002 - 04.2004] NZE121,ZZE122; ZZE123 ｶﾝﾚｲﾁ ｼﾖｳ |
57601-13907 |
US $449.90 |
||
|
57601
|
57601
57601-13916 Member Sub-Assy, Rear Floor Side, Rh[04.2004 - 09.2006] ZZE123 |
57601-13916 |
US $487.76 |
||
|
57601
|
57601
57601-1A907 Member Sub-Assy, Rear Floor Side, Rh[01.2001 - 09.2002] ZZE123 ｲﾗｽﾄ ｺﾒﾝﾄ ｻﾝｼﾖｳ |
57601-1A907 |
US $484.85 |
||
| replacement | |||||
|
57601
|
57601
57601-13916 Member Sub-Assy, Rear Floor Side, Rh[01.2001 - 09.2002] ZZE123 ｲﾗｽﾄ ｺﾒﾝﾄ ｻﾝｼﾖｳ |
57601-13916 |
US $487.76 |
||
|
57602
|
57602
57602-12964 Member Sub-Assy, Rear Floor Side, Lh[04.2004 - 09.2006] NZE121,ZZE122,123 |
57602-12964 |
US $452.82 |
||
|
57602
|
57602
57602-1A905 Member Sub-Assy, Rear Floor Side, Lh[01.2001 - 09.2002] NZE121,ZZE123 ｲﾗｽﾄ ｺﾒﾝﾄ ｻﾝｼﾖｳ |
57602-1A905 |
US $451.36 |
||
| replacement | |||||
|
57602
|
57602
57602-12964 Member Sub-Assy, Rear Floor Side, Lh[01.2001 - 09.2002] NZE121,ZZE123 ｲﾗｽﾄ ｺﾒﾝﾄ ｻﾝｼﾖｳ |
57602-12964 |
US $452.82 |
||
|
57605B
|
57605B
57605-12180 Member Sub-Assy, Rear Floor Cross, No.1[01.2001 - 09.2002] NZE121,ZZE123 |
57605-12180 |
US $286.83 |
||
|
57606D
|
57606D
57606-13140 Member Sub-Assy, Rear Absorber Mounting[01.2001 - 09.2002] ZZE123 |
57606-13140 |
US $218.40 |
||
|
57615A
|
57615A
57615-13903 Member, Rear Floor Side, Rear Rh[01.2001 - 09.2002] NZE124,ZZE123 |
57615-13903 |
US $120.85 |
||
|
57615A
|
57615A
57615-13918 Member, Rear Floor Side, Rear Rh[04.2004 - 09.2006] NZE124,ZZE123,124 ｶﾝﾚｲﾁ ｼﾖｳ |
57615-13918 |
US $119.39 |
||
|
57616A
|
57616A
57616-13904 Member, Rear Floor Side, Rear Lh[01.2001 - 09.2002] NZE124,ZZE123 |
57616-13904 |
US $120.85 |
||
|
57616A
|
57616A
57616-13917 Member, Rear Floor Side, Rear Lh[04.2004 - 09.2006] NZE124,ZZE123,124 ｶﾝﾚｲﾁ ｼﾖｳ |
57616-13917 |
US $119.39 |
||
|
91641K0816
|
91641K0816
91641-K0816 BOLT WWASHER |
91641-K0816 |
US $2.33 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.43 |
||
|
9033301011
|
9033301011
90333-01011 New Genuine Part |
90333-01011 |
US $2.51 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.21 |
||
|
9033325003
|
9033325003
90333-25003 Plug, Hole(For Hood) |
90333-25003 |
from US $1.25 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.07 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.15 |
||
|
9095001478
|
9095001478
90950-01478 Plug, Hole(For Front Suspension Lower Arm) |
90950-01478 |
US $3.40 |
||
|
9095001550
|
9095001550
90950-01550 PLUG HOLE |
90950-01550 |
US $2.33 |
||
|
9095001949
|
9095001949
90950-01949 PLUG HOLE |
90950-01949 |
US $1.79 |
||
|
9095001959
|
9095001959
90950-01959 Cover, Console Box Hole |
90950-01959 |
US $2.15 |
||
|
9095001963
|
9095001963
90950-01963 PLUG HOLE |
90950-01963 |
US $1.24 |
||
