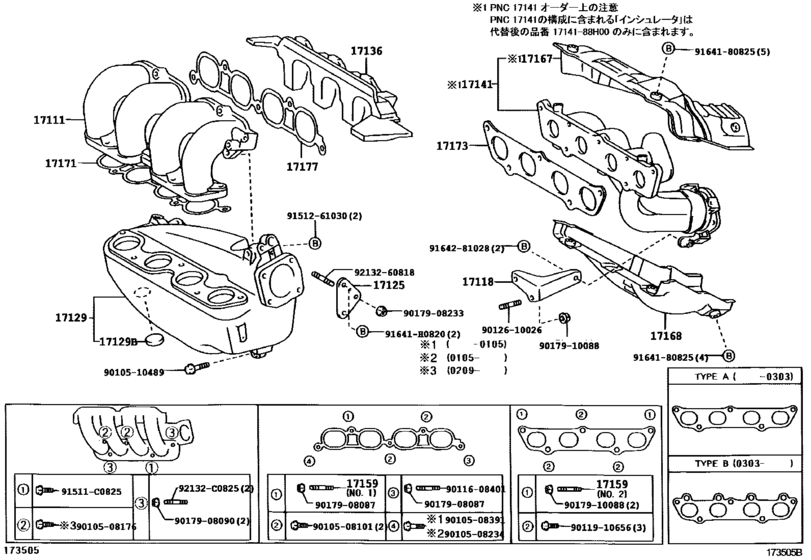

Manifold ([01.2001 - ] (0101- )2ZZGE) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2001 - 2006
- Sales region
- Japan
- Frame
- ZZE123
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- From
- 01.2001
- To
- 09.2006
- Gear Shift Type
- 6F
- Vehicle Model
- RUNX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17111-88600 Manifold, Intake[01.2001 - 05.2001] 2ZZGE..ZZE123 |
17111-88600 |
US $495.04 |
||
| replacements | |||||
|
17111
|
17111
17111-88601 Manifold, Intake[01.2001 - 05.2001] 2ZZGE..ZZE123 |
17111-88601 |
US $496.50 |
||
|
17111
|
17111
90105-08234 Bolt(For Transaxle Housing & Case Set)[01.2001 - 05.2001] 2ZZGE..ZZE123 |
90105-08234 |
US $0.87 |
||
|
17111
|
17111
17111-88601 Manifold, Intake[05.2001 - 09.2002] 2ZZGE..ZZE123 |
17111-88601 |
US $496.50 |
||
|
17118
|
17118
17118-22010 Stay, Manifold[01.2001 - 09.2002] 2ZZGE..ZZE123 |
17118-22010 |
US $36.55 |
||
|
17125
|
17125
17125-88600 Stay, Surge Tank, No.1[01.2001 - 09.2002] 2ZZGE..ZZE123 |
17125-88600 |
US $16.02 |
||
|
17129
|
17129
17109-88601 Tank, Intake Air Surge[01.2001 - 09.2002] 2ZZGE..ZZE123 |
17109-88601 |
US $864.86 |
||
|
17129B
|
17129B
96411-43000 Plug, Tight, No.1[01.2001 - 09.2002] 2ZZGE..ZZE123 |
96411-43000 |
from US $3.67 |
||
|
17136
|
17136
17136-88600
Insulator, Intake Manifold, No.2
[01.2001 - 04.2002] 2ZZGE..ZZE123 |
17136-88600 |
— | ||
|
17136
|
17136
17136-88601
Insulator, Intake Manifold, No.2
[04.2002 - 09.2002] 2ZZGE..ZZE123 |
17136-88601 |
— | ||
|
17141
|
17141
17141-88600 Manifold, Exhaust[01.2001 - 09.2002] 2ZZGE..ZZE123 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
17141-88600 |
US $426.61 |
||
| replacement | |||||
|
17141
|
17141
17141-88H00
Manifold, Exhaust
[01.2001 - 09.2002] 2ZZGE..ZZE123 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
17141-88H00 |
— | ||
|
17141
|
17141
17141-88601 Manifold, Exhaust[03.2003 - 04.2004] 2ZZGE..ZZE123 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
17141-88601 |
US $415.83 |
||
|
17159
|
17159
90116-10169 Bolt, Stud(For Manifold To Cylinder Head)used for exhaust manifold [01.2001 - 09.2002] 2ZZGE..ZZE123 ＮＯ．２ |
90116-10169 |
from US $1.42 |
||
|
17159
|
17159
92122-80822 Bolt, Stud(For Water Outlet)[01.2001 - 09.2002] 2ZZGE..ZZE123 ＮＯ．１ |
92122-80822 |
from US $1.03 |
||
|
17167
|
17167
17167-22110 Insulator, Exhaust Manifold Heat, No.1[02.2003 - 04.2004] 2ZZGE..ZZE123 |
17167-22110 |
US $145.60 |
||
|
17167
|
17167
17167-88602 Insulator, Exhaust Manifold Heat, No.1[01.2001 - 09.2002] 2ZZGE..ZZE123 |
17167-88602 |
US $138.32 |
||
| replacement | |||||
|
17167
|
17167
17167-22110 Insulator, Exhaust Manifold Heat, No.1[01.2001 - 09.2002] 2ZZGE..ZZE123 |
17167-22110 |
US $145.60 |
||
|
17168
|
17168
17168-88600 Insulator, Exhaust Manifold Heat, No.2[01.2001 - 09.2002] 2ZZGE..ZZE123 |
17168-88600 |
US $110.66 |
||
|
17171
|
17171
17171-22040 Gasket, Intake To Exhaust Manifold[06.2003 - 04.2004] 2ZZGE..ZZE123 |
17171-22040 |
US $8.74 |
||
|
17171
|
17171
17171-88600
Gasket, Intake To Exhaust Manifold
[01.2001 - 09.2002] 2ZZGE..ZZE123 |
17171-88600 |
— | ||
| replacement | |||||
|
17171
|
17171
17171-22040 Gasket, Intake To Exhaust Manifold[01.2001 - 09.2002] 2ZZGE..ZZE123 |
17171-22040 |
US $8.74 |
||
|
17173
|
17173
17173-88600 Gasket, Exhaust Manifold To Head[01.2001 - 09.2002] 2ZZGE..ZZE123 |
17173-88600 |
US $26.21 |
||
|
17173
|
17173
17173-88601 Gasket, Exhaust Manifold To Head[03.2003 - 04.2004] 2ZZGE..ZZE123 |
17173-88601 |
US $28.73 |
||
|
17177
|
17177
17177-22010 Gasket, Intake Manifold To Head, No.1[06.2003 - 04.2004] 2ZZGE..ZZE123 |
17177-22010 |
US $12.01 |
||
|
17177
|
17177
17177-88600
Gasket, Intake Manifold To Head, No.1
[01.2001 - 09.2002] 2ZZGE..ZZE123 |
17177-88600 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-22010 Gasket, Intake Manifold To Head, No.1[01.2001 - 09.2002] 2ZZGE..ZZE123 |
17177-22010 |
US $12.01 |
||
|
91511C0825
|
91511C0825
91511-C0825 Bolt(For Front Differential Side Bearing Retainer) |
91511-C0825 |
US $2.33 |
||
|
91641H0820
|
91641H0820
91641-H0820 Bolt |
91641-H0820 |
from US $0.80 |
||
|
92132C0825
|
92132C0825
92132-C0825 New Genuine Part |
92132-C0825 |
US $2.04 |
||
|
9010508101
|
9010508101
90105-08101 New Genuine Part |
90105-08101 |
US $1.22 |
||
|
9010508176
|
9010508176
90105-08176 BOLT |
90105-08176 |
US $2.87 |
||
|
9010508234
|
9010508234
90105-08234 Bolt(For Transaxle Housing & Case Set) |
90105-08234 |
US $0.87 |
||
|
9010508391
|
9010508391
90105-08391 New Genuine Part |
90105-08391 |
US $0.87 |
||
|
9010510489
|
9010510489
90105-10489
New Genuine Part
|
90105-10489 |
— | ||
|
9011608401
|
9011608401
90116-08401 New Genuine Part |
90116-08401 |
US $1.49 |
||
|
9011910656
|
9011910656
90119-10656 New Genuine Part |
90119-10656 |
US $2.33 |
||
|
9012610026
|
9012610026
90126-10026 New Genuine Part |
90126-10026 |
US $4.80 |
||
|
9017908087
|
9017908087
90179-08087 Nut |
90179-08087 |
US $1.79 |
||
|
9017908090
|
9017908090
90179-08090 Nut(For Front Suspension Support) |
90179-08090 |
US $3.58 |
||
|
9017908233
|
9017908233
90179-08233 NUT |
90179-08233 |
from US $1.31 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $0.99 |
||
|
9151261030
|
9151261030
91512-61030 Bolt (For Transaxle Case Upper Cover) |
91512-61030 |
US $3.05 |
||
|
9164180825
|
9164180825
91641-80825 BOLT WWASHER |
91641-80825 |
US $2.33 |
||
|
9164281028
|
9164281028
91642-81028 New Genuine Part |
91642-81028 |
US $2.51 |
||
|
9213260818
|
9213260818
92132-60818 Bolt, Stud(For Chain Damper) |
92132-60818 |
US $0.96 |
||
