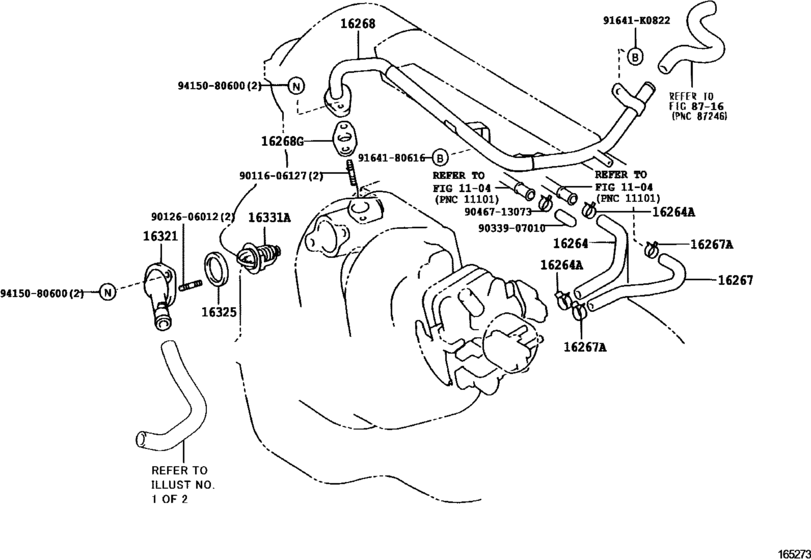

Radiator & Water Outlet ([01.2001 - ] (0101- )2ZZGE) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2001 - 2006
- Sales region
- Japan
- Frame
- ZZE123
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- From
- 01.2001
- To
- 09.2006
- Gear Shift Type
- 6F
- Vehicle Model
- RUNX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16264
|
16264
16264-88601 Hose, Water By-Pass, No.2[01.2001 - 09.2002] 2ZZGE..ZZE123 |
16264-88601 |
US $7.69 |
||
|
16264A
|
16264A
90467-13073
Clamp Or Clip, Hose(For Water By-Pass Hose)
[09.2002 - 04.2004] 2ZZGE..ZZE123 |
90467-13073 |
— | ||
| replacement | |||||
|
16264A
|
16264A
90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)[09.2002 - 04.2004] 2ZZGE..ZZE123 |
90467-13128 |
from US $1.38 |
||
|
16264A
|
16264A
90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)[01.2001 - 09.2002] 2ZZGE..ZZE123 |
90467-13128 |
from US $1.38 |
||
|
16267
|
16267
16267-88602 Hose, Water By-Pass, No.3[01.2001 - 09.2002] 2ZZGE..ZZE123 |
16267-88602 |
US $7.86 |
||
|
16267A
|
16267A
90467-13073
Clamp Or Clip, Hose(For Water By-Pass Hose)
[09.2002 - 04.2004] 2ZZGE..ZZE123 |
90467-13073 |
— | ||
| replacement | |||||
|
16267A
|
16267A
90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)[09.2002 - 04.2004] 2ZZGE..ZZE123 |
90467-13128 |
from US $1.38 |
||
|
16267A
|
16267A
90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose)[01.2001 - 09.2002] 2ZZGE..ZZE123 |
90467-13128 |
from US $1.38 |
||
|
16268
|
16268
16268-22130 Pipe, Water By-Pass, No.1[03.2003 - 04.2004] 2ZZGE..ZZE123 |
16268-22130 |
US $80.08 |
||
|
16268
|
16268
16268-88601 Pipe, Water By-Pass, No.1[01.2001 - 09.2002] 2ZZGE..ZZE123 |
16268-88601 |
US $80.08 |
||
| replacement | |||||
|
16268
|
16268
16268-22130 Pipe, Water By-Pass, No.1[01.2001 - 09.2002] 2ZZGE..ZZE123 |
16268-22130 |
US $80.08 |
||
|
16268G
|
16268G
16258-88600 Gasket(For Water By-Pass Pipe)[01.2001 - 09.2002] 2ZZGE..ZZE123 |
16258-88600 |
US $8.06 |
||
|
16321
|
16321
16321-88600 Inlet, Water[01.2001 - 09.2002] 2ZZGE..ZZE123 |
16321-88600 |
US $45.86 |
||
|
16325
|
16325
16325-62010 Gasket, Water Inlet Housing, No.1[01.2001 - 09.2002] 1NZFE..NZE12#; 2ZZGE..ZZE123 |
16325-62010 |
from US $3.94 |
||
|
16331A
|
16331A
90916-03084
Thermostat
[01.2001 - 09.2002] 2ZZGE..ZZE123 ＊ＷＡＸ ８２−９５ |
90916-03084 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03129 Thermostat[01.2001 - 09.2002] 2ZZGE..ZZE123 ＊ＷＡＸ ８２−９５ |
90916-03129 |
from US $20.42 |
||
|
16331A
|
16331A
90916-03125 Thermostat[09.2004 - 01.2005] 2ZZGE..ZZE123 ＊ＷＡＸ ８２−９５ |
90916-03125 |
from US $22 |
||
|
16331A
|
16331A
90916-03129 Thermostat[01.2005 - 09.2006] 2ZZGE..ZZE123 ＊ＷＡＸ ８２−９５ |
90916-03129 |
from US $20.42 |
||
|
91641K0822
|
91641K0822
91641-K0822 BOLT WWASHER |
91641-K0822 |
US $1.43 |
||
|
9011606127
|
9011606127
90116-06127 Bolt, Stud(For Oil Pan) |
90116-06127 |
from US $0.78 |
||
|
9012606012
|
9012606012
90126-06012 STUD, HEX LOBULAR |
90126-06012 |
from US $1.21 |
||
|
9033907010
|
9033907010
90339-07010 Plug, Heater Water |
90339-07010 |
US $4.84 |
||
|
9046713073
|
9046713073
90467-13073
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13073 |
— | ||
| replacement | |||||
|
9046713073
|
9046713073
90467-13128 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90467-13128 |
from US $1.38 |
||
|
9164180616
|
9164180616
91641-80616 BOLT W-WASHER |
91641-80616 |
from US $0.82 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.66 |
||
