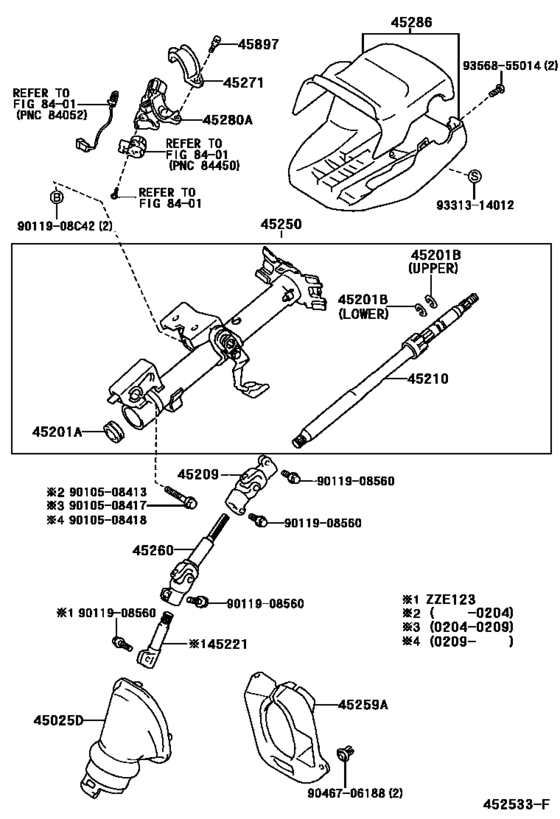

Steering Column & Shaft ([01.2001 - ] (0101- )NZE124,ZZE123,124) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2001 - 2006
- Sales region
- Japan
- Frame
- ZZE123
- ENGINE
- 2ZZGE
- TRANSMISSION
- MTM
- From
- 01.2001
- To
- 09.2006
- Gear Shift Type
- 6F
- Vehicle Model
- RUNX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-12230 Cover Sub-Assy, Steering Column Hole, No.1[01.2001 - 09.2002] ZZE123 |
45025-12230 |
US $37.56 |
||
|
45201A
|
45201A
45274-42010 Bearing(For Steering Main Shaft)[01.2001 - 09.2002] NZE124,ZZE123 |
45274-42010 |
US $11.65 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[01.2001 - 09.2002] NZE124,ZZE123 厚さ＝１．２０,下側 |
90520-17042 |
from US $0.82 |
||
|
45201B
|
45201B
90520-17269 Ring, Shaft Snap(For Steering Main Shaft)[01.2001 - 09.2002] NZE124,ZZE123 厚さ＝１．２０,上側 |
90520-17269 |
US $2.15 |
||
|
45209
|
45209
45209-12150 Yoke Sub-Assy, Steering Sliding[01.2001 - 09.2002] NZE12#,ZZE123 |
45209-12150 |
US $113.57 |
||
| replacement | |||||
|
45209
|
45209
45209-12151
Yoke Sub-Assy, Steering Sliding
[01.2001 - 09.2002] NZE12#,ZZE123 |
45209-12151 |
— | ||
|
45209
|
45209
45209-12151
Yoke Sub-Assy, Steering Sliding
[10.2005 - 09.2006] NZE12#,ZZE12# |
45209-12151 |
— | ||
|
45210
|
45210
45210-42020 Shaft Assy, Steering Main[01.2001 - 09.2002] NZE124,ZZE123 |
45210-42020 |
US $256.26 |
||
|
45221
|
45221
45221-12291 Shaft, Steering Intermediate[01.2001 - 09.2002] ZZE123 |
45221-12291 |
US $119.39 |
||
|
45250
|
45250
45250-1E200 Column Assy, Steering[01.2001 - 09.2002] NZE124,ZZE123 |
45250-1E200 |
US $637.73 |
||
|
45259A
|
45259A
45259-12010 Sheet, Column Hole Cover Silencer[01.2001 - 09.2002] NZE121,ZZE123 |
45259-12010 |
US $25.04 |
||
|
45260
|
45260
45260-12460 Shaft Assy, Steering Intermediate, No.2[01.2001 - 09.2002] ZZE123 |
45260-12460 |
US $196.56 |
||
| replacement | |||||
|
45260
|
45260
45260-12461 Shaft Assy, Steering Intermediate, No.2[01.2001 - 09.2002] ZZE123 |
45260-12461 |
US $198.02 |
||
|
45260
|
45260
45260-12461 Shaft Assy, Steering Intermediate, No.2[04.2004 - 09.2006] ZZE123 |
45260-12461 |
US $198.02 |
||
|
45271
|
45271
45271-16020 Clamp, Steering Column, Upper[01.2001 - 09.2002] NZE12#,ZZE123 |
45271-16020 |
US $9.32 |
||
|
45280A
|
45280A
45280-52020 Bracket Assy, Steering Column, Upper[01.2001 - 09.2002] ZZE123..6F |
45280-52020 |
US $144.14 |
||
|
45286
|
45286
45286-12967-B2 Cover, Steering Column[01.2001 - 09.2002] NZE12# DK.GRAY,TRIM0#,1#; ZZE123 DK.GRAY,TRIM1# |
45286-12967-B2 |
US $53.99 |
||
|
45286
|
45286
45286-12970-B0 Cover, Steering Column[09.2002 - 04.2004] ZZE123 ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),DK.GRAY,TRIM1#; NZE12#,ZZE122,124 ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),DK.GRAY,TRIM0#,1# |
45286-12970-B0 |
US $55.47 |
||
| replacement | |||||
|
45286
|
45286
45286-12970-C0 Cover, Steering Column[09.2002 - 04.2004] ZZE123 ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),DK.GRAY,TRIM1#; NZE12#,ZZE122,124 ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),DK.GRAY,TRIM0#,1# |
45286-12970-C0 |
US $53.81 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[01.2001 - 09.2002] NZE12#,ZZE123 |
45897-12020 |
from US $2.63 |
||
|
9011908C42
|
9011908C42
90119-08C42 New Genuine Part |
90119-08C42 |
US $1.43 |
||
|
9010508413
|
9010508413
90105-08413 New Genuine Part |
90105-08413 |
US $1.60 |
||
|
9010508417
|
9010508417
90105-08417 New Genuine Part |
90105-08417 |
US $1.46 |
||
|
9010508418
|
9010508418
90105-08418 New Genuine Part |
90105-08418 |
US $1.75 |
||
| replacement | |||||
|
9010508418
|
9010508418
91551-80855 New Genuine Part |
91551-80855 |
US $1.79 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.13 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $4.47 |
||
|
9046706188
|
9046706188
90467-06188 Retainer, Dash Panel Silencer |
90467-06188 |
US $2.87 |
||
|
9331314012
|
9331314012
93313-14012 SCREW |
93313-14012 |
US $1.08 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
