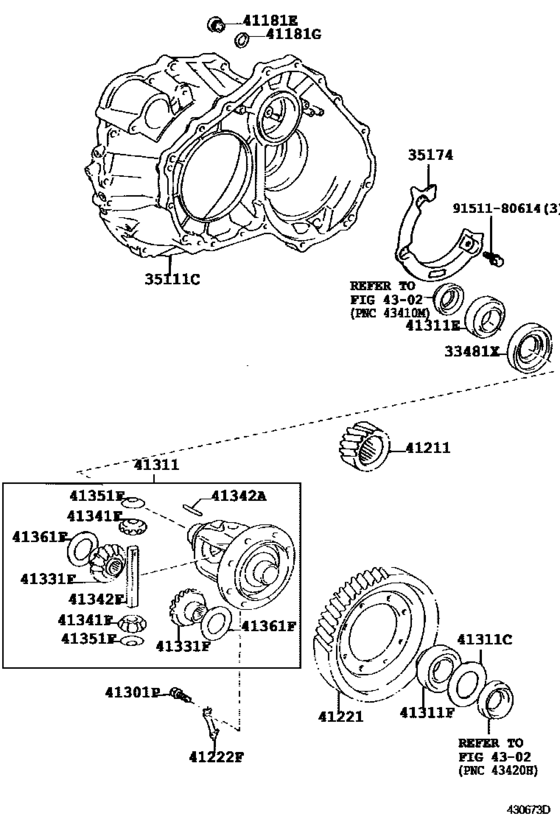

Front Axle Housing & Differential ([01.2001 - ] U240E (0101- )ZZE123..4FC) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2001 - 2006
- Sales region
- Japan
- Frame
- ZZE123
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 01.2001
- To
- 09.2006
- Gear Shift Type
- 4FC
- Vehicle Model
- RUNX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33481X
|
33481X
33481-32010 Gear, Speedometer Drive (Mtm)[01.2001 - 09.2002] ZZE123..4FC |
33481-32010 |
from US $24.98 |
||
|
35111C
|
35111C
35105-32010 Housing, Transaxle[01.2001 - 05.2002] ZZE123..4FC |
35105-32010 |
US $739.65 |
||
| replacement | |||||
|
35111C
|
35111C
35105-32011 Housing, Transaxle[01.2001 - 05.2002] ZZE123..4FC |
35105-32011 |
US $741.10 |
||
|
35111C
|
35111C
35105-32011 Housing, Transaxle[05.2002 - 09.2002] ZZE123..4FC |
35105-32011 |
US $741.10 |
||
|
35174
|
35174
35174-32010 Separator, Transaxle Housing Oil[01.2001 - 09.2002] ZZE123..4FC |
35174-32010 |
US $10.34 |
||
|
41181E
|
41181E
90341-18021 Plug, Filler(Hv)[01.2001 - 09.2002] NZE12#,ZZE123..4FC |
90341-18021 |
from US $2.32 |
||
|
41181G
|
41181G
90430-18008 Gasket[01.2001 - 09.2002] NZE12#,ZZE123..4FC |
90430-18008 |
from US $0.90 |
||
| replacement | |||||
|
41181G
|
41181G
90430-T0021 Gasket(For Manual Transmission Filler Plug)[01.2001 - 09.2002] NZE12#,ZZE123..4FC |
90430-T0021 |
US $1.01 |
||
|
41211
|
41211
41211-32150 Pinion, Differential Drive[01.2001 - 09.2002] ZZE123..4FC |
41211-32150 |
US $40.48 |
||
| replacement | |||||
|
41211
|
41211
41211-42H03 Pinion, Differential Drive[01.2001 - 09.2002] ZZE123..4FC |
41211-42H03 |
US $883.79 |
||
|
41221
|
41221
41221-20370
Gear, Front Differential Ring
[01.2001 - 09.2002] ZZE123..4FC |
41221-20370 |
— | ||
|
41222F
|
41222F
41222-32010 Plate, Rear Differential Ring Gear Set Bolt Lock[01.2001 - 09.2002] NZE12#,ZZE123..4FC |
41222-32010 |
from US $2.06 |
||
|
41301P
|
41301P
90101-11003 Bolt (For Rear Differential Ring Gear Set)[01.2001 - 09.2002] ZZE123..4FC |
90101-11003 |
US $0.96 |
||
|
41311
|
41311
41301-32071 Case, Front Differential[01.2001 - 09.2002] ZZE123..4FC |
41301-32071 |
US $564.93 |
||
|
41311C
|
41311C
90564-49020 Shim (For Front Differential Case Rear)[01.2001 - 09.2002] ZZE123..4FC 厚さ＝２．９０，マーク ０ |
90564-49020 |
US $5.53 |
||
|
41311C
|
41311C
90564-49021 Shim (For Front Differential Case Rear)[01.2001 - 09.2002] ZZE123..4FC 厚さ＝２．９５，マーク １ |
90564-49021 |
US $5.53 |
||
|
41311C
|
41311C
90564-49022 Shim (For Front Differential Case Rear)[01.2001 - 09.2002] ZZE123..4FC 厚さ＝３．００，マーク ２ |
90564-49022 |
US $5.53 |
||
|
41311C
|
41311C
90564-49023 Shim (For Front Differential Case Rear)[01.2001 - 09.2002] ZZE123..4FC 厚さ＝３．０５，マーク ３ |
90564-49023 |
US $6.84 |
||
|
41311C
|
41311C
90564-49024 Shim (For Front Differential Case Rear)[01.2001 - 09.2002] ZZE123..4FC 厚さ＝３．１０，マーク ４ |
90564-49024 |
US $6.84 |
||
|
41311C
|
41311C
90564-49025 Shim (For Front Differential Case Rear)[01.2001 - 09.2002] ZZE123..4FC 厚さ＝３．１５，マーク ５ |
90564-49025 |
US $6.84 |
||
|
41311C
|
41311C
90564-49026 Shim (For Front Differential Case Rear)[01.2001 - 09.2002] ZZE123..4FC 厚さ＝３．２０，マーク ６ |
90564-49026 |
US $6.84 |
||
|
41311C
|
41311C
90564-49027 Shim (For Front Differential Case Rear)[01.2001 - 09.2002] ZZE123..4FC 厚さ＝３．２５，マーク ７ |
90564-49027 |
US $6.84 |
||
|
41311C
|
41311C
90564-49028 Shim (For Front Differential Case Rear)[01.2001 - 09.2002] ZZE123..4FC 厚さ＝３．３０，マーク ８ |
90564-49028 |
US $6.84 |
||
|
41311C
|
41311C
90564-49029 Shim (For Front Differential Case Rear)[01.2001 - 09.2002] ZZE123..4FC 厚さ＝３．３５，マーク ９ |
90564-49029 |
US $6.84 |
||
|
41311C
|
41311C
90564-49030 Shim (For Front Differential Case Rear)[01.2001 - 09.2002] ZZE123..4FC 厚さ＝３．４０，マーク Ａ |
90564-49030 |
US $6.84 |
||
|
41311C
|
41311C
90564-49031 Shim (For Front Differential Case Rear)[01.2001 - 09.2002] ZZE123..4FC 厚さ＝３．４５，マーク Ｂ |
90564-49031 |
US $6.84 |
||
|
41311C
|
41311C
90564-49032 Shim (For Front Differential Case Rear)[01.2001 - 09.2002] ZZE123..4FC 厚さ＝３．５０，マーク Ｃ |
90564-49032 |
US $6.84 |
||
|
41311C
|
41311C
90564-49033 Shim (For Front Differential Case Rear)[01.2001 - 09.2002] ZZE123..4FC 厚さ＝３．５５，マーク Ｄ |
90564-49033 |
US $6.84 |
||
|
41311C
|
41311C
90564-49034 Shim (For Front Differential Case Rear)[01.2001 - 09.2002] ZZE123..4FC 厚さ＝３．６０，マーク Ｅ |
90564-49034 |
US $6.84 |
||
|
41311C
|
41311C
90564-49035 Shim (For Front Differential Case Rear)[01.2001 - 09.2002] ZZE123..4FC 厚さ＝３．６５，マーク Ｆ |
90564-49035 |
US $6.84 |
||
|
41311C
|
41311C
90564-49036 Shim (For Front Differential Case Rear)[01.2001 - 09.2002] ZZE123..4FC 厚さ＝３．７０，マーク Ｇ |
90564-49036 |
US $6.84 |
||
|
41311C
|
41311C
90564-49037 Shim (For Front Differential Case Rear)[01.2001 - 09.2002] ZZE123..4FC 厚さ＝３．７５，マーク Ｈ |
90564-49037 |
US $6.84 |
||
|
41311C
|
41311C
90564-49038 Shim (For Front Differential Case Rear)[01.2001 - 09.2002] ZZE123..4FC 厚さ＝３．８０，マーク Ｊ |
90564-49038 |
US $6.84 |
||
|
41311E
|
41311E
90366-40016 Bearing(For Rear Differential Case)[01.2001 - 09.2002] NZE121,ZZE123..4FC |
90366-40016 |
from US $25.33 |
||
|
41311F
|
41311F
90366-44001 Bearing(For Rear Differential Case)[01.2001 - 09.2002] NZE12#,ZZE123..4FC |
90366-44001 |
from US $25.33 |
||
|
41331F
|
41331F
41331-32010 Gear, Rear Differential Side[01.2001 - 09.2002] ZZE123 |
41331-32010 |
US $55.74 |
||
|
41341F
|
41341F
41341-30011 Pinion, Rear Differential[01.2001 - 09.2002] ZZE123 |
41341-30011 |
from US $36.29 |
||
| replacement | |||||
|
41341F
|
41341F
41039-28010 Gear Kit, Differential, Rear[01.2001 - 09.2002] ZZE123 |
41039-28010 |
US $251.60 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[01.2001 - 09.2002] NZE12#,ZZE123 |
90250-06058 |
from US $1.87 |
||
|
41342F
|
41342F
41342-32020
Shaft, Rear Differential Pinion
[01.2001 - 09.2002] ZZE123 |
41342-32020 |
— | ||
| replacement | |||||
|
41342F
|
41342F
41342-52060 Shaft, Front Differential Pinion, No.1[01.2001 - 09.2002] ZZE123 |
41342-52060 |
US $15.03 |
||
|
41351F
|
41351F
41351-32010 Washer, Rear Differential Pinion Thrust[01.2001 - 09.2002] ZZE123 |
41351-32010 |
from US $1.33 |
||
|
41361F
|
41361F
41361-17010 Washer, Rear Differential Side Gear Thrust, No.1[01.2001 - 09.2002] NZE12#,ZZE123..4FC 厚さ＝０．９５ |
41361-17010 |
US $3.14 |
||
|
41361F
|
41361F
41361-17020 Washer, Rear Differential Side Gear Thrust, No.1[01.2001 - 09.2002] NZE12#,ZZE123..4FC 厚さ＝１．００ |
41361-17020 |
US $2.62 |
||
|
41361F
|
41361F
41361-17030 Washer, Rear Differential Side Gear Thrust, No.1[01.2001 - 09.2002] NZE12#,ZZE123..4FC 厚さ＝１．０５ |
41361-17030 |
US $2.62 |
||
|
41361F
|
41361F
41361-17040 Washer, Rear Differential Side Gear Thrust, No.1[01.2001 - 09.2002] NZE12#,ZZE123..4FC 厚さ＝１．１０ |
41361-17040 |
US $2.62 |
||
|
41361F
|
41361F
41361-17050 Washer, Rear Differential Side Gear Thrust, No.1[01.2001 - 09.2002] NZE12#,ZZE123..4FC 厚さ＝１．１５ |
41361-17050 |
US $2.62 |
||
|
41361F
|
41361F
41361-17060 Washer, Rear Differential Side Gear Thrust, No.1[01.2001 - 09.2002] NZE12#,ZZE123..4FC 厚さ＝１．２０ |
41361-17060 |
US $2.62 |
||
|
9151180614
|
9151180614
91511-80614 BOLT FLANGE |
91511-80614 |
US $1.25 |
||
