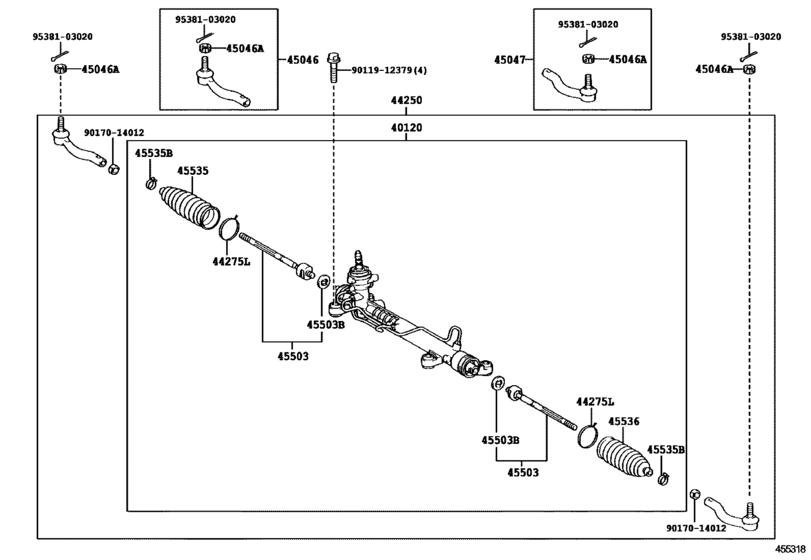

Front Steering Gear & Link ([01.2001 - ] (0101- )ZZE123) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2001 - 2006
- Sales region
- Japan
- Frame
- ZZE123
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 01.2001
- To
- 09.2006
- Gear Shift Type
- 4FC
- Vehicle Model
- RUNX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
40120
|
40120
40120-12590
Gear Assy,power Steering,rebuilt
[01.2001 - 09.2002] ZZE123 ＴＯＹＯＤＡ ＫＯＫＩ |
40120-12590 |
— | ||
|
44250
|
44250
44200-12750
Gear Assy, Power Steering(For Rack & Pinion)
[01.2001 - 09.2002] ZZE123 |
44200-12750 |
— | ||
|
44275L
|
44275L
90580-14073 Wire(For Cylinder End Stopper)[01.2001 - 09.2002] NZE124,ZZE123 |
90580-14073 |
US $1.97 |
||
|
45046
|
45046
45046-49115 End Sub-Assy, Tie Rod, Rh[01.2001 - 09.2002] ZZE123 |
45046-49115 |
from US $53.41 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[01.2001 - 09.2002] NZE12#,ZZE123 |
90171-12028 |
from US $1.37 |
||
|
45047
|
45047
45047-49045 End Sub-Assy, Tie Rod, Lh[01.2001 - 09.2002] ZZE123 |
45047-49045 |
from US $52.94 |
||
|
45503
|
45503
45503-19255 End Sub-Assy, Steering Rack[01.2001 - 09.2002] ZZE123 |
45503-19255 |
US $75.71 |
||
| replacement | |||||
|
45503
|
45503
45503-19256 End Sub-Assy, Steering Rack[01.2001 - 09.2002] ZZE123 |
45503-19256 |
from US $107.04 |
||
|
45503B
|
45503B
90214-14009 Washer, Claw(For Steering Rack End)[01.2001 - 09.2002] NZE124,ZZE123 外径＝３５．２ |
90214-14009 |
from US $1.68 |
||
|
45535
|
45535
45535-32070 Boot, Steering Rack, No.1[01.2001 - 09.2002] ZZE123; NZE124 |
45535-32070 |
from US $16.98 |
||
|
45535B
|
45535B
90467-19019 Clip[01.2001 - 09.2002] ZZE123; NZE124 |
90467-19019 |
from US $4.19 |
||
|
45536
|
45536
45535-32070 Boot, Steering Rack, No.1[01.2001 - 09.2002] ZZE123; NZE124 |
45535-32070 |
from US $16.98 |
||
|
9011912379
|
9011912379
90119-12379 New Genuine Part |
90119-12379 |
US $3.20 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.07 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.76 |
||
