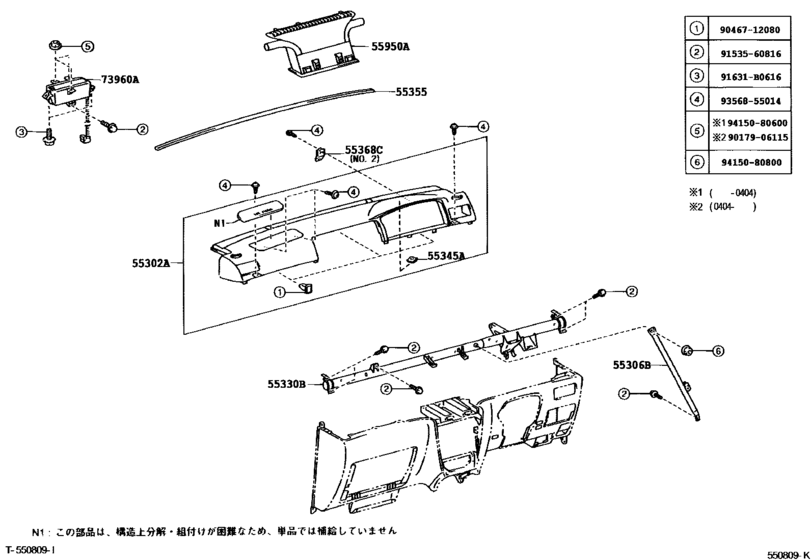

Instrument Panel & Glove Compartment ([01.2001 - 09.2006] (0101-0609)) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2001 - 2006
- Sales region
- Japan
- Frame
- ZZE123
- ENGINE
- 2ZZGE
- TRANSMISSION
- ATM
- From
- 01.2001
- To
- 09.2006
- Gear Shift Type
- 4FC
- Vehicle Model
- RUNX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55302A
|
55302A
55302-12010-B0 Panel Sub-Assy, Instrument, Upper[01.2001 - 09.2002] NZE12# DK.GRAY,TRIM0#,1#; ZZE123 DK.GRAY,TRIM1# |
55302-12010-B0 |
US $746.93 |
||
|
55302A
|
55302A
55302-12060-B0 Panel Sub-Assy, Instrument, Upper[04.2004 - 09.2006] NZE12# DK.GRAY,TRIM0#,14,16; ZZE122,124 DK.GRAY,TRIM0#,1#; ZZE123 DK.GRAY,TRIM1# |
55302-12060-B0 |
US $746.93 |
||
|
55306B
|
55306B
55306-12270 Brace Sub-Assy, Instrument Panel To Cowl[01.2001 - 09.2002] NZE12#,ZZE123 |
55306-12270 |
US $29.12 |
||
|
55330B
|
55330B
55330-12390 Reinforcement Assy, Instrument Panel[01.2001 - 11.2001] NZE124,ZZE123 |
55330-12390 |
US $193.65 |
||
| replacement | |||||
|
55330B
|
55330B
55330-12490 Reinforcement Assy, Instrument Panel[01.2001 - 11.2001] NZE124,ZZE123 |
55330-12490 |
US $199.47 |
||
|
55330B
|
55330B
55330-12490 Reinforcement Assy, Instrument Panel[11.2001 - 07.2002] NZE124,ZZE123 |
55330-12490 |
US $199.47 |
||
|
55330B
|
55330B
55330-12740 Reinforcement Assy, Instrument Panel[02.2006 - 09.2006] NZE124,ZZE123,124 |
55330-12740 |
US $200.93 |
||
|
55345A
|
55345A
55345-12060 Clip, Instrument Panel, No.1[01.2001 - 09.2002] NZE12#,ZZE123 |
55345-12060 |
US $1.10 |
||
|
55355
|
55355
55355-52012 Cushion, Instrument Panel, No.1[01.2001 - 09.2002] NZE12#,ZZE123 |
55355-52012 |
US $12.08 |
||
|
55368C
|
55368C
55362-12050 Bracket, Meter Mounting[01.2001 - 09.2002] NZE12#,ZZE123 ＮＯ．１ |
55362-12050 |
US $1.46 |
||
|
55368C
|
55368C
55368-12090 Bracket, Meter Mounting[01.2001 - 09.2002] NZE12#,ZZE123 ＮＯ．２ |
55368-12090 |
US $3.20 |
||
|
55368C
|
55368C
55368-12100 Bracket, Meter Mounting[04.2004 - 09.2006] NZE12#,ZZE12# ＮＯ．２ |
55368-12100 |
US $4.95 |
||
|
55950A
|
55950A
55950-12240 Nozzle Assy, Defroster[01.2001 - 09.2002] NZE12#,ZZE123 |
55950-12240 |
US $104.83 |
||
|
73960A
|
73960A
73960-12030 Air Bag Assy, Instrument Panel Passenger W/o Door[01.2001 - 09.2002] NZE12#,ZZE123 |
73960-12030 |
US $1,616.16 |
||
| replacement | |||||
|
73960A
|
73960A
73960-12032 Air Bag Assy, Instrument Panel Passenger W/o Door[01.2001 - 09.2002] NZE12#,ZZE123 |
73960-12032 |
US $1,616.16 |
||
|
73960A
|
73960A
73960-12110 Air Bag Assy, Instrument Panel Passenger W/o Door[04.2004 - 09.2006] NZE12#,ZZE12# |
73960-12110 |
US $1,616.16 |
||
| replacement | |||||
|
73960A
|
73960A
73960-12111 Air Bag Assy, Instrument Panel Passenger W/o Door[04.2004 - 09.2006] NZE12#,ZZE12# |
73960-12111 |
US $1,616.16 |
||
|
91631B0616
|
91631B0616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.66 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.76 |
||
|
9153560816
|
9153560816
91535-60816 BOLT WWASHER |
91535-60816 |
US $1.05 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.66 |
||
|
9415080800
|
9415080800
94150-80800 NUT, FLANGE |
94150-80800 |
from US $0.78 |
||
