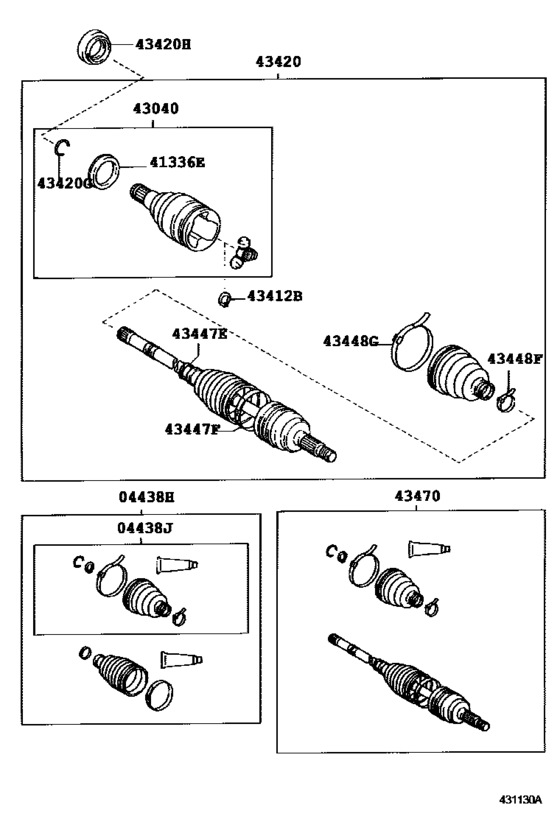

Front Drive Shaft ([09.2002 - 04.2004] ﾚﾌﾄ (0209-0404)ZZE124) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2002 - 2006
- Sales region
- Japan
- Frame
- ZZE124
- ENGINE
- 1ZZFE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 09.2006
- Gear Shift Type
- 4FC
- Vehicle Model
- ALLEX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04428-42100
Boot Kit, Front Drive Shaft, In & Outboard, Lh
[04.2004 - 09.2006] ZZE122,124 |
04428-42100 |
— | ||
| replacement | |||||
|
04438H
|
04438H
04428-42101 Boot Kit, Front Drive Shaft, In & Outboard, LhFRONT DRIVE SHAFT, IN & OUTBOARD, LH [04.2004 - 09.2006] ZZE122,124 |
04428-42101 |
US $84.45 |
||
|
04438H
|
04438H
04438-12640 Boot Kit, Front Drive Shaft, In & Outboard, Rh[12.2003 - 04.2004] ZZE122,124 |
04438-12640 |
US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04428-12260 Boot Kit, Front Drive Shaft, In & Outboard, Rh[12.2003 - 04.2004] ZZE122,124 |
04428-12260 |
from US $139.72 |
||
|
04438H
|
04438H
04438-63010 Boot Kit, Front Drive Shaft, In & Outboard, Rh[09.2002 - 12.2003] ZZE124 |
04438-63010 |
US $145.60 |
||
| replacement | |||||
|
04438H
|
04438H
04428-12250 Boot Kit, Front Drive Shaft, In & Outboard, Rh[09.2002 - 12.2003] ZZE124 |
04428-12250 |
from US $141.52 |
||
|
04438J
|
04438J
04438-32240 Boot Kit, Front Drive Shaft Inboard Joint, Rh[09.2002 - 12.2003] ZZE124 |
04438-32240 |
US $90.27 |
||
| replacement | |||||
|
04438J
|
04438J
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[09.2002 - 12.2003] ZZE124 |
04438-42201 |
from US $66.57 |
||
|
04438J
|
04438J
04438-42200
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[12.2003 - 04.2004] ZZE124 |
04438-42200 |
— | ||
| replacement | |||||
|
04438J
|
04438J
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[12.2003 - 04.2004] ZZE124 |
04438-42201 |
from US $66.57 |
||
|
41336E
|
41336E
41336-12060 Cover, Front Drive Shaft Dust, Rh[09.2002 - 04.2004] ZZE12#..4FC |
41336-12060 |
from US $3.20 |
||
|
43040
|
43040
43040-32040 Joint Assy, Drive Shaft Inboard, Lh[09.2002 - 04.2004] ZZE124; ZZE122 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
43040-32040 |
from US $227.14 |
||
|
43412B
|
43412B
90520-22005 Ring, Snap (For Rear Drive Shaft)[09.2002 - 04.2004] ZZE122,124; NZE121 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
90520-22005 |
from US $1.17 |
||
|
43420
|
43420
43420-20581 Shaft Assy, Front Drive, Lh[09.2002 - 04.2004] ZZE124 |
43420-20581 |
US $960.96 |
||
|
43420G
|
43420G
90521-27005 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[09.2002 - 04.2004] ZZE12# |
90521-27005 |
from US $1.66 |
||
|
43420H
|
43420H
90311-35046
Oil Seal, Front Drive Shaft, Lh
[09.2002 - 04.2004] ZZE122,124 |
90311-35046 |
— | ||
| replacement | |||||
|
43420H
|
43420H
90311-35054
Oil Seal, Front Drive Shaft, Lh
[09.2002 - 04.2004] ZZE122,124 |
90311-35054 |
— | ||
|
43420H
|
43420H
90311-35054
Oil Seal, Front Drive Shaft, Lh
[01.2005 - 09.2006] ZZE124 |
90311-35054 |
— | ||
|
43447E
|
43447E
42345-12150 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[09.2002 - 04.2004] NZE121,ZZE122,124 内径＝２９．６ |
42345-12150 |
US $4.95 |
||
| replacement | |||||
|
43447E
|
43447E
42345-12190 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[09.2002 - 04.2004] NZE121,ZZE122,124 内径＝２９．６ |
42345-12190 |
US $2.91 |
||
|
43447F
|
43447F
42345-12140 Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)[09.2002 - 04.2004] NZE121,ZZE122,124 内径＝９２．０ |
42345-12140 |
US $7.72 |
||
| replacement | |||||
|
43447F
|
43447F
42345-12180 Clamp (For Front Axle Outboard Joint Boot Lh)[09.2002 - 04.2004] NZE121,ZZE122,124 内径＝９２．０ |
42345-12180 |
US $5.91 |
||
|
43448F
|
43448F
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[09.2002 - 04.2004] NZE12#,ZZE122,124 |
90949-01078 |
US $0.96 |
||
|
43448G
|
43448G
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [09.2002 - 04.2004] ZZE122,124; NZE121 ＴＹＰＥ Ｃ：イラスト参照 |
42345-12160 |
from US $4.45 |
||
|
43470
|
43470
43470-29655 Shaft Assy, Front Drive Outboard Joint, Rh[09.2002 - 12.2003] ZZE124 |
43470-29655 |
US $655.20 |
||
| replacement | |||||
|
43470
|
43470
43470-80297 Shaft Assy, Front Drive Outboard Joint, Rh[09.2002 - 12.2003] ZZE124 |
43470-80297 |
US $655.20 |
||
|
43470
|
43470
43470-80096 Shaft Assy, Front Drive Outboard Joint, Rh[12.2003 - 04.2004] ZZE124 |
43470-80096 |
US $653.74 |
||
| replacement | |||||
|
43470
|
43470
43470-80297 Shaft Assy, Front Drive Outboard Joint, Rh[12.2003 - 04.2004] ZZE124 |
43470-80297 |
US $655.20 |
||
