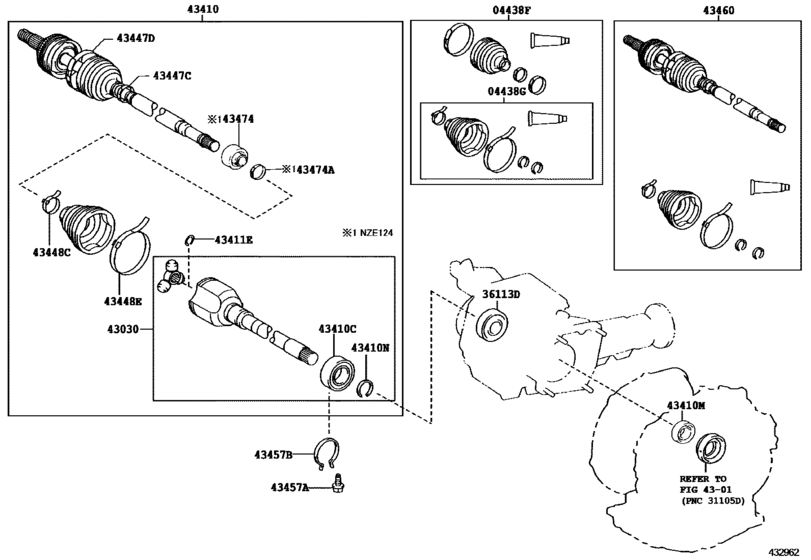

Front Drive Shaft ([04.2004 - ] ﾗｲﾄ (0404- )NZE124,ZZE124) Diagram Toyota COROLLA RUNX/ ALLEX
- Year
- 2002 - 2006
- Sales region
- Japan
- Frame
- ZZE124
- ENGINE
- 1ZZFE
- TRANSMISSION
- ATM
- From
- 09.2002
- To
- 09.2006
- Gear Shift Type
- 4FC
- Vehicle Model
- ALLEX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04427-12120 Boot Kit, Front Drive Shaft, In & Outboard, Rh[12.2003 - 04.2004] ZZE124 |
04427-12120 |
US $145.60 |
||
|
04438F
|
04438F
04427-42080 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.2004 - 09.2006] ZZE124 |
04427-42080 |
US $145.60 |
||
| replacement | |||||
|
04438F
|
04438F
04427-42081 Boot Kit, Front Drive Shaft, In & Outboard, Rh[04.2004 - 09.2006] ZZE124 |
04427-42081 |
US $145.60 |
||
|
04438F
|
04438F
04438-63010 Boot Kit, Front Drive Shaft, In & Outboard, Rh[09.2002 - 12.2003] ZZE124 |
04438-63010 |
US $145.60 |
||
| replacement | |||||
|
04438F
|
04438F
04428-12250 Boot Kit, Front Drive Shaft, In & Outboard, Rh[09.2002 - 12.2003] ZZE124 |
04428-12250 |
from US $141.52 |
||
|
04438G
|
04438G
04437-42060 Boot Kit, Front Drive Shaft Inboard Joint, Rh[04.2004 - 09.2006] ZZE124 |
04437-42060 |
US $90.27 |
||
| replacement | |||||
|
04438G
|
04438G
04437-52441 Boot Kit, Front Drive Shaft Inboard Joint, RhFRONT DRIVE SHAFT INBOARD JOINT, RH [04.2004 - 09.2006] ZZE124 |
04437-52441 |
US $61.59 |
||
|
04438G
|
04438G
04437-52030 Boot Kit, Front Drive Shaft Inboard Joint, Rh[12.2003 - 04.2004] NZE124,ZZE124 |
04437-52030 |
US $88.82 |
||
| replacement | |||||
|
04438G
|
04438G
04437-12400 Boot Kit, Front Drive Shaft Inboard Joint, Lh[12.2003 - 04.2004] NZE124,ZZE124 |
04437-12400 |
from US $66.87 |
||
|
04438G
|
04438G
04438-32240 Boot Kit, Front Drive Shaft Inboard Joint, Rh[09.2002 - 12.2003] ZZE124 |
04438-32240 |
US $90.27 |
||
| replacement | |||||
|
04438G
|
04438G
04438-42201 Boot Kit, Front Drive Shaft Inboard Joint, Rh[09.2002 - 12.2003] ZZE124 |
04438-42201 |
from US $66.57 |
||
|
36113D
|
36113D
90311-36006 Seal, Oil (For Transfer Case Rh)[09.2002 - 04.2004] NZE124,ZZE124 |
90311-36006 |
from US $8.96 |
||
|
43030
|
43030
43030-12070 Joint Assy, Front Drive Inboard, Rh[09.2002 - 04.2004] ZZE124 |
43030-12070 |
US $486.30 |
||
|
43410
|
43410
43410-12531 Shaft Assy, Front Drive, Rh[09.2002 - 04.2004] ZZE124 |
43410-12531 |
US $1,073.07 |
||
|
43410C
|
43410C
90363-36006 Bearing (For Front Drive Shaft)[09.2002 - 04.2004] NZE124,ZZE124 |
90363-36006 |
from US $22.54 |
||
|
43410M
|
43410M
90316-28003 Oil Seal, Front Drive Shaft, Rh[09.2002 - 04.2004] NZE124,ZZE124 |
90316-28003 |
from US $8.06 |
||
|
43410N
|
43410N
90520-33008 Ring, Hole Snap (For Differential Side Gear Shaft)[09.2002 - 04.2004] NZE124,ZZE123,124 |
90520-33008 |
from US $1.91 |
||
|
43411E
|
43411E
90520-22005 Ring, Snap (For Rear Drive Shaft)[09.2002 - 04.2004] NZE121 ＰＮＣ ４３４１０＝ＴＹＰＥ Ｂ; NZE124,ZZE122,124 |
90520-22005 |
from US $1.17 |
||
|
43447C
|
43447C
42345-12150 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[09.2002 - 04.2004] ZZE122,124; NZE121 ＰＮＣ ４３４１０＝ＴＹＰＥ Ｂ |
42345-12150 |
US $4.95 |
||
| replacement | |||||
|
43447C
|
43447C
42345-12190 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[09.2002 - 04.2004] ZZE122,124; NZE121 ＰＮＣ ４３４１０＝ＴＹＰＥ Ｂ |
42345-12190 |
US $2.91 |
||
|
43447D
|
43447D
42345-12140 Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)[09.2002 - 04.2004] ZZE122,124; NZE121 ＰＮＣ ４３４１０＝ＴＹＰＥ Ｂ |
42345-12140 |
US $7.72 |
||
| replacement | |||||
|
43447D
|
43447D
42345-12180 Clamp (For Front Axle Outboard Joint Boot Lh)[09.2002 - 04.2004] ZZE122,124; NZE121 ＰＮＣ ４３４１０＝ＴＹＰＥ Ｂ |
42345-12180 |
US $5.91 |
||
|
43448C
|
43448C
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[09.2002 - 04.2004] NZE12#,ZZE122,124 |
90949-01078 |
US $0.96 |
||
|
43448E
|
43448E
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [09.2002 - 04.2004] NZE121 ＰＮＣ ４３４１０＝ＴＹＰＥ Ｂ; NZE124,ZZE122,124 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
42345-12160 |
from US $4.45 |
||
|
43457A
|
43457A
90119-10952 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[07.2005 - 09.2006] NZE124,ZZE124 ＊１０−１．２５ＰＸ２９―１４．８ |
90119-10952 |
US $1.38 |
||
|
43457A
|
43457A
90901-19060 Bolt (For Drive Shaft Bearing Bracket Setting No.1)[09.2002 - 04.2004] NZE124,ZZE124 ＊１０−１．２５ＰＸ２８．５−１４．８ |
90901-19060 |
from US $2.28 |
||
|
43457B
|
43457B
90521-75002 Ring, Hole Snap (For Drive Shaft Bearing Bracket)[09.2002 - 04.2004] NZE124,ZZE124 |
90521-75002 |
from US $2.01 |
||
|
43460
|
43460
43460-39126 Shaft Assy, Front Drive Outboard Joint, Rh[09.2002 - 12.2003] ZZE124 |
43460-39126 |
US $655.20 |
||
| replacement | |||||
|
43460
|
43460
43460-80130 Shaft Assy, Front Drive Outboard Joint, Rh[09.2002 - 12.2003] ZZE124 |
43460-80130 |
US $642.10 |
||
|
43460
|
43460
43460-80028 Shaft Assy, Front Drive Outboard Joint, Rh[12.2003 - 04.2004] ZZE124 |
43460-80028 |
US $656.66 |
||
|
43460
|
43460
43460-80040 Shaft Assy, Front Drive Outboard Joint, Rh[04.2004 - 09.2006] ZZE124 |
43460-80040 |
US $640.64 |
||
| replacement | |||||
|
43460
|
43460
43460-80130 Shaft Assy, Front Drive Outboard Joint, Rh[04.2004 - 09.2006] ZZE124 |
43460-80130 |
US $642.10 |
||
