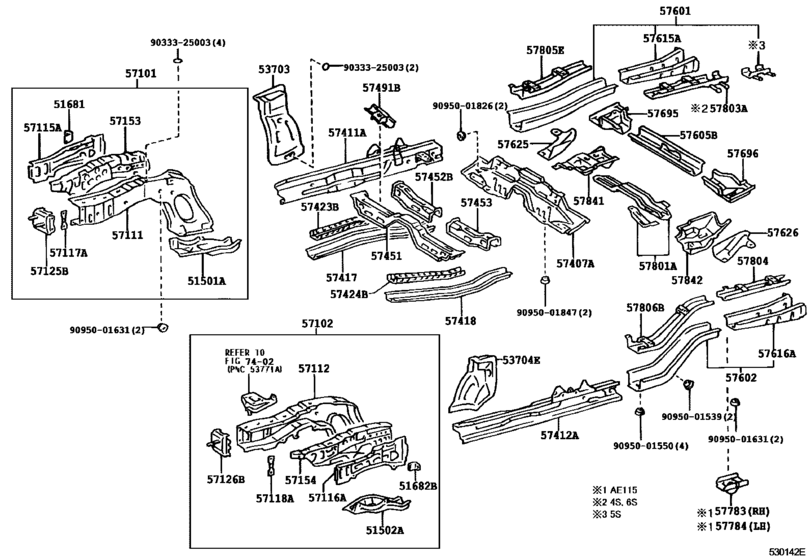

Floor Side Member ([01.1997 - ] (9701- )) Diagram Toyota COROLLA SPACIO
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- AE111
- grade
- AER
- ENGINE
- 4AFE
- From
- 04.1999
- To
- 05.2001
- Seating Capacity
- 05S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51501A
|
51501A
51501-13010 Reinforcement Sub-Assy, Front Suspension Member, Rh[01.1997 -] AE11# |
51501-13010 |
US $263.54 |
||
|
51502A
|
51502A
51502-13010 Reinforcement Sub-Assy, Front Suspension Member, Lh[01.1997 -] AE11# |
51502-13010 |
US $256.26 |
||
|
51681
|
51681
51681-12050 Bracket, Flexible Hose[01.1997 -] AE11# |
51681-12050 |
US $9.90 |
||
|
51682B
|
51682B
51682-12060 Bracket, Flexible Hose, Lh[01.1997 -] AE11# |
51682-12060 |
US $9.90 |
||
|
53703
|
53703
53703-13010 Apron Sub-Assy, Front Fender, Rear Rh[01.1997 -] AE11# |
53703-13010 |
US $131.04 |
||
|
53704E
|
53704E
53704-13010 Apron Sub-Assy, Front Fender, Rear Lh[01.1997 -] AE11# |
53704-13010 |
US $131.04 |
||
|
57101
|
57101
57101-13901 Member Sub-Assy, Front Side, Rh[04.1999 -] AE11# |
57101-13901 |
US $579.49 |
||
|
57102
|
57102
57102-13901 Member Sub-Assy, Front Side, Lh[04.1999 -] AE11# |
57102-13901 |
US $607.15 |
||
|
57111
|
57111
57111-12201 Member, Front Side, Rh[01.1997 -] AE11# |
57111-12201 |
US $203.84 |
||
|
57112
|
57112
57112-12142 Member, Front Side, Lh[01.1997 -] AE11# |
57112-12142 |
US $203.84 |
||
|
57115A
|
57115A
57115-12060 Plate, Front Side Member, Outer Rh[01.1997 -] AE11# |
57115-12060 |
US $62.90 |
||
|
57116A
|
57116A
57116-12060 Plate, Front Side Member, Outer Lh[01.1997 -] AE11# |
57116-12060 |
US $62.90 |
||
|
57117A
|
57117A
57117-12110
Reinforcement, Front Bumper Mounting
[01.1997 -] AE11# |
57117-12110 |
— | ||
|
57118A
|
57118A
57117-12110
Reinforcement, Front Bumper Mounting
[01.1997 -] AE11# |
57117-12110 |
— | ||
|
57125B
|
57125B
57125-12090 Reinforce Sub-Assy, Front Bumper Mounting, Rh[04.1999 -] AE11# |
57125-12090 |
US $28.39 |
||
|
57126B
|
57126B
57126-12050 Reinforce Sub-Assy, Front Bumper Mounting, Lh[04.1999 -] AE11# |
57126-12050 |
US $28.39 |
||
|
57153
|
57153
57016-13010 Reinforcement, Front Side Member, No.2 Rh[01.1997 -] AE11# |
57016-13010 |
US $142.69 |
||
|
57154
|
57154
57017-13010 Reinforcement, Front Side Member, No.2 Lh[01.1997 -] AE11# |
57017-13010 |
US $139.78 |
||
|
57407A
|
57407A
57407-13080 Member Sub-Assy, Center Floor Cross[01.1997 -] AE111 |
57407-13080 |
US $160.16 |
||
|
57411A
|
57411A
57401-13030 Member, Floor Side, Inner Rh[01.1997 -] AE11#..05S,06S |
57401-13030 |
US $205.30 |
||
|
57412A
|
57412A
57402-13030 Member, Floor Side, Inner Lh[01.1997 -] AE11#..05S,06S |
57402-13030 |
US $205.30 |
||
|
57417
|
57417
57417-13010 Reinforcement, Front Floor Under, Rh[01.1997 -] AE11# |
57417-13010 |
US $104.83 |
||
|
57418
|
57418
57418-13010 Reinforcement, Front Floor Under, Lh[01.1997 -] AE11# |
57418-13010 |
US $104.83 |
||
|
57423B
|
57423B
57423-13010 Reinforcement, Front Floor Under, Inner Rh[01.1997 -] AE11# |
57423-13010 |
US $40.48 |
||
|
57424B
|
57424B
57424-13010 Reinforcement, Front Floor Under, Inner Lh[01.1997 -] AE11# |
57424-13010 |
US $40.48 |
||
|
57451
|
57451
57451-12153
Member, Front Floor Cross
[07.1997 -] AE111 |
57451-12153 |
— | ||
|
57452B
|
57452B
57452-13020 Member, Front Floor Cross, No.2[01.1997 -] AE111 |
57452-13020 |
US $133.95 |
||
|
57453
|
57453
57453-13010 Member, Front Floor Cross, No.3[01.1997 -] AE111 |
57453-13010 |
US $133.95 |
||
|
57601
|
57601
57601-13340 Member Sub-Assy, Rear Floor Side, Rh[07.1997 -] AE111..05S |
57601-13340 |
US $449.90 |
||
|
57602
|
57602
57602-13371 Member Sub-Assy, Rear Floor Side, Lh[05.1998 -] AE111 |
57602-13371 |
US $449.90 |
||
|
57605B
|
57605B
57605-13060 Member Sub-Assy, Rear Floor Cross, No.1[07.1997 -] AE111..05S |
57605-13060 |
US $106.29 |
||
|
57615A
|
57615A
57615-13901 Member, Rear Floor Side, Rear Rh[04.1999 -] AE11#..05S |
57615-13901 |
US $119.39 |
||
|
57616A
|
57616A
57616-13902 Member, Rear Floor Side, Rear Lh[05.1998 -] AE11# |
57616-13902 |
US $155.79 |
||
|
57625
|
57625
57626-13040 Reinforcement, Rear Floor Side Member, Rh[01.1997 -] AE11# |
57626-13040 |
US $12.67 |
||
|
57626
|
57626
57627-13030 Reinforcement, Rear Floor Side Member, Lh[01.1997 -] AE11# |
57627-13030 |
US $18.93 |
||
|
57695
|
57695
57703-12080
Extension, Rear Floor Cross Rear Side, Rh
[04.1998 -] AE111 |
57703-12080 |
— | ||
|
57696
|
57696
57704-12100
Extension, Rear Floor Cross Rear Side, Lh
[04.1998 -] AE111 |
57704-12100 |
— | ||
|
57805E
|
57805E
57805-13030 Reinforcement Sub-Assy, Belt Anchor, Rh[07.1997 -] AE11#..05S |
57805-13030 |
US $88.82 |
||
|
57806B
|
57806B
57806-13030 Reinforcement Sub-Assy, Belt Anchor, Lh[07.1997 -] AE11#..05S |
57806-13030 |
US $88.82 |
||
|
57841
|
57841
57841-13010 Reinforcement, Rear No.2 Seat Leg, Front Rh[01.1997 -] AE11# |
57841-13010 |
US $39.31 |
||
|
57842
|
57842
57842-13010 Reinforcement, Rear No.2 Seat Leg, Front Lh[01.1997 -] AE11# |
57842-13010 |
US $39.31 |
||
|
9033325003
|
9033325003
90333-25003 Plug, Hole(For Hood) |
90333-25003 |
from US $1.12 |
||
|
9095001539
|
9095001539
90950-01539 PLUG HOLE |
90950-01539 |
from US $1.42 |
||
|
9095001550
|
9095001550
90950-01550 PLUG HOLE |
90950-01550 |
US $2.08 |
||
|
9095001631
|
9095001631
90950-01631 Plug Hole |
90950-01631 |
US $1.92 |
||
|
9095001826
|
9095001826
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001847
|
9095001847
90950-01847
New Genuine Part
|
90950-01847 |
— |
