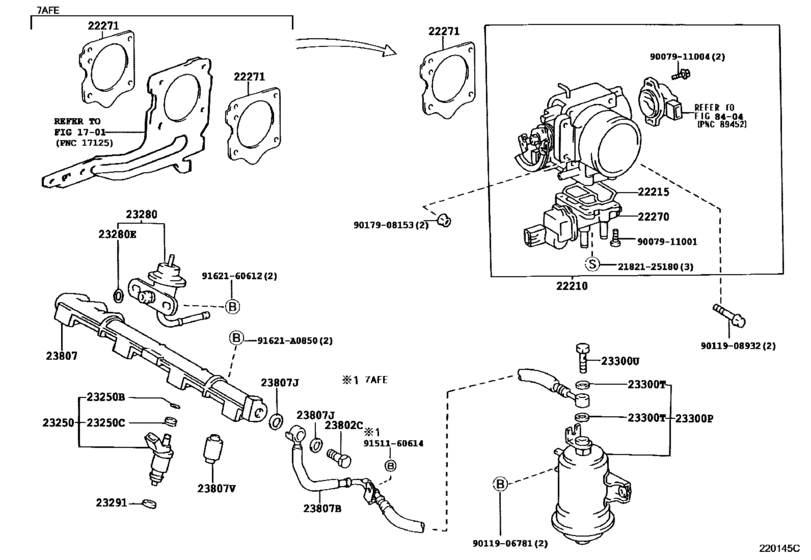

Fuel Injection System ([01.1997 - ] (9701- )) Diagram Toyota COROLLA SPACIO
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- AE111
- grade
- AER
- ENGINE
- 4AFE
- From
- 04.1999
- To
- 05.2001
- Seating Capacity
- 05S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-1A010 Body Assy, Throttle[01.1997 -] 4AFE..AE111 |
22210-1A010 |
US $1,218.67 |
||
|
22215
|
22215
22215-74400 Gasket, Throttle Body Cover[01.1997 -] 4AFE,7AFE..AE11# |
22215-74400 |
US $7.04 |
||
|
22270
|
22270
22270-16090
Valve Assy, Idle Speed Control(For Thlottle Body)
[01.1997 -] 4AFE..AE111 |
22270-16090 |
— | ||
|
22271
|
22271
22271-15020 Gasket, Throttle Body[01.1997 -] 4AFE..AE111 |
22271-15020 |
from US $3.86 |
||
|
23250
|
23250
23209-15040 Injector Assy, Fuel[01.1997 -] 4AFE..AE111 |
23209-15040 |
US $272.27 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[12.1998 -] 4AFE,7AFE..AE11# |
90301-07024 |
US $3.04 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[01.1997 -] 4AFE,7AFE..AE11# |
90480-13005 |
from US $2.50 |
||
|
23280
|
23280
23280-15030
Regulator Assy, Fuel Pressure
[01.1997 -] 4AFE,7AFE..AE11# |
23280-15030 |
— | ||
|
23280E
|
23280E
90301-07024 Ring, O(For Fuel Injector)[12.1998 -] 4AFE,7AFE..AE11# |
90301-07024 |
US $3.04 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[01.1997 -] 4AFE,7AFE..AE11# |
23291-41010 |
from US $2.87 |
||
|
23300P
|
23300P
23300-19515 Filter, Fuel(For Efi)[01.1997 -] 4AFE,7AFE..AE11# |
23300-19515 |
US $103.38 |
||
|
23300T
|
23300T
90430-12026 Gasket[01.1997 -] 4AFE,7AFE..AE11# |
90430-12026 |
from US $0.88 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[01.1997 -] 4AFE,7AFE..AE11# |
90401-12097 |
from US $3.08 |
||
|
23802C
|
23802C
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[01.1997 -] 4AFE,7AFE..AE11# |
90401-12097 |
from US $3.08 |
||
|
23807
|
23807
23814-15040 Pipe Sub-Assy, Fuel Delivery[01.1997 -] 4AFE,7AFE..AE11# |
23814-15040 |
US $104.83 |
||
| replacement | |||||
|
23807
|
23807
23814-15041 Pipe Sub-Assy, Fuel Delivery[01.1997 -] 4AFE,7AFE..AE11# |
23814-15041 |
US $104.83 |
||
|
23807B
|
23807B
23271-15240 Hose, Fuel Delivery Pipe[01.1997 -] 4AFE..AE111 |
23271-15240 |
US $126.67 |
||
|
23807J
|
23807J
90430-12026 Gasket[01.1997 -] 4AFE,7AFE..AE11# |
90430-12026 |
from US $0.88 |
||
|
23807V
|
23807V
90561-08020 Spacer, No.1(For Delivery Pipe)[01.1997 -] 4AFE,7AFE..AE11# |
90561-08020 |
from US $3.20 |
||
|
91621A0850
|
91621A0850
91621-A0850 New Genuine Part |
91621-A0850 |
US $3.20 |
||
|
2182125180
|
2182125180
21821-25180 Screw, Set, No.2(For Carburetor Body Set) |
21821-25180 |
from US $3.52 |
||
|
9007911001
|
9007911001
90079-11001 SCREW |
90079-11001 |
US $1.92 |
||
|
9007911004
|
9007911004
90079-11004 New Genuine Part |
90079-11004 |
US $1.60 |
||
|
9011906781
|
9011906781
90119-06781 New Genuine Part |
90119-06781 |
US $1.46 |
||
| replacement | |||||
|
9011906781
|
9011906781
90119-06438 New Genuine Part |
90119-06438 |
US $1.60 |
||
|
9011908932
|
9011908932
90119-08932 New Genuine Part |
90119-08932 |
US $2.04 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9151160614
|
9151160614
91511-60614
LEXBOLT
|
91511-60614 |
— | ||
| replacement | |||||
|
9151160614
|
9151160614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
