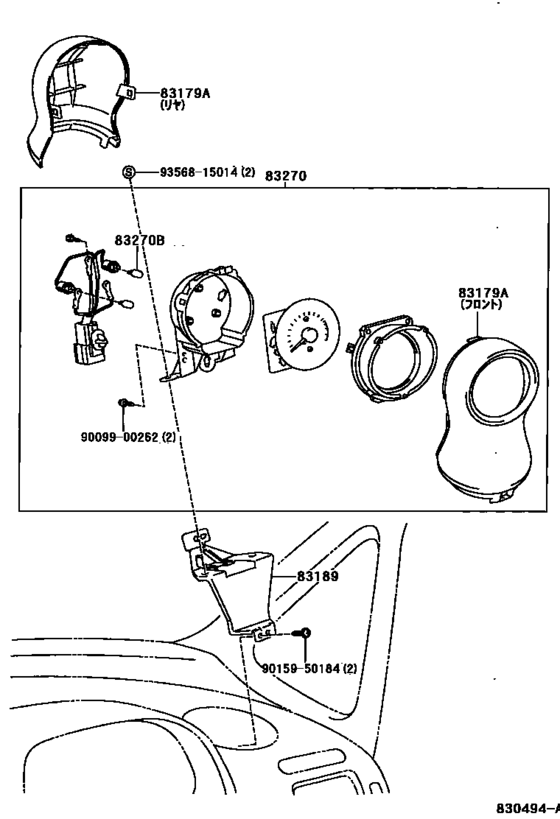

Meter ([04.1999 - ] ﾀｺﾒ-ﾀ (9904- )) Diagram Toyota COROLLA SPACIO
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- AE111
- grade
- AER
- ENGINE
- 4AFE
- From
- 04.1999
- To
- 05.2001
- Seating Capacity
- 05S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83179A
|
83179A
83179-13010
Cover, Meter
[04.1999 - 06.1999] AE11# リヤ |
83179-13010 |
— | ||
| replacements | |||||
|
83179A
|
83179A
83179-13011
Cover, Meter
[04.1999 - 06.1999] AE11# リヤ |
83179-13011 |
— | ||
|
83179A
|
83179A
83179-13021
Cover, Meter
[04.1999 - 06.1999] AE11# リヤ |
83179-13021 |
— | ||
|
83179A
|
83179A
83179-13011
Cover, Meter
[06.1999 -] AE11# リヤ |
83179-13011 |
— | ||
|
83179A
|
83179A
83179-13020
Cover, Meter
[04.1999 - 06.1999] AE11# フロント |
83179-13020 |
— | ||
| replacements | |||||
|
83179A
|
83179A
83179-13011
Cover, Meter
[04.1999 - 06.1999] AE11# フロント |
83179-13011 |
— | ||
|
83179A
|
83179A
83179-13021
Cover, Meter
[04.1999 - 06.1999] AE11# フロント |
83179-13021 |
— | ||
|
83179A
|
83179A
83179-13021
Cover, Meter
[06.1999 -] AE11# フロント |
83179-13021 |
— | ||
|
83189
|
83189
83189-13010
Bracket, Meter
[04.1999 -] AE11# |
83189-13010 |
— | ||
|
83270
|
83270
83270-13020 Tachometer Assy, Engine[04.1999 - 06.1999] AE111 |
83270-13020 |
US $486.30 |
||
| replacements | |||||
|
83270
|
83270
83179-13011
Cover, Meter
[04.1999 - 06.1999] AE111 |
83179-13011 |
— | ||
|
83270
|
83270
83270-13021 Tachometer Assy, Engine[04.1999 - 06.1999] AE111 |
83270-13021 |
US $486.30 |
||
|
83270
|
83270
83270-13021 Tachometer Assy, Engine[06.1999 -] AE111 |
83270-13021 |
US $486.30 |
||
|
83270B
|
83270B
90981-11018 Bulb, Position Indicator Lamp[04.1999 -] AE11# １２Ｖ １．２Ｗ ソケット無し |
90981-11018 |
from US $2.24 |
||
|
9009900262
|
9009900262
90099-00262
SCREW TAPPING
|
90099-00262 |
— | ||
|
9015950184
|
9015950184
90159-50184 New Genuine Part |
90159-50184 |
US $1.60 |
||
|
9356815014
|
9356815014
93568-15014
Direct
|
93568-15014 |
— | ||
| replacement | |||||
|
9356815014
|
9356815014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
