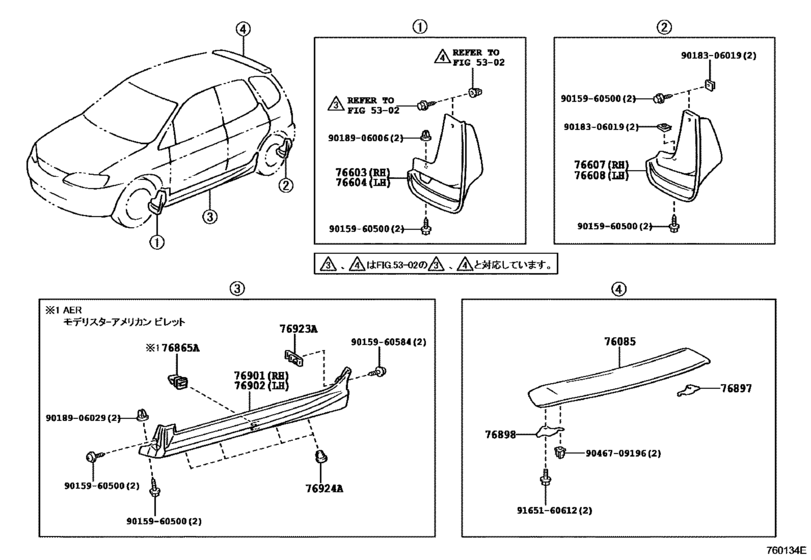

Mudguard & Spoiler ([01.1997 - ] (9701- )) Diagram Toyota COROLLA SPACIO
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- AE111
- grade
- AER
- ENGINE
- 4AFE
- From
- 04.1999
- To
- 05.2001
- Seating Capacity
- 05S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76085
|
76085
76871-13903
Spoiler Sub-Assy, Rear
[01.1997 -] AE11# |
76871-13903 |
— | ||
|
76865A
|
76865A
76651-12060 Retainer, Front Mudguard[04.1999 -] AE11#..AER |
76651-12060 |
US $1.75 |
||
|
76897
|
76897
76897-13020 Protector, Rear Spoiler, Side Rh[01.1997 -] AE11# |
76897-13020 |
US $15.58 |
||
|
76898
|
76898
76897-13020 Protector, Rear Spoiler, Side Rh[01.1997 -] AE11# |
76897-13020 |
US $15.58 |
||
|
76901
|
76901
76911-13901 Mudguard Sub-Assy, Side, Rh[04.1999 -] AE11#..AER |
76911-13901 |
US $285.38 |
||
|
76902
|
76902
76912-13901 Mudguard Sub-Assy, Side, Lh[04.1999 -] AE11#..AER |
76912-13901 |
US $285.38 |
||
|
76923A
|
76923A
76923-13020 Retainer, Side Mudguard[04.1999 -] AE11#..AER |
76923-13020 |
US $2.91 |
||
|
76924A
|
76924A
76924-13020 Retainer, Side Mudguard[04.1999 -] AE11#..AER |
76924-13020 |
from US $0.76 |
||
|
9015960500
|
9015960500
90159-60500 SCREW WWASHER |
90159-60500 |
from US $1.12 |
||
|
9015960584
|
9015960584
90159-60584 SCREW WWASHER |
90159-60584 |
US $1.76 |
||
|
9018306019
|
9018306019
90183-06019 Clip, Outside Moulding, No.1 |
90183-06019 |
from US $0.82 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9018906029
|
9018906029
90189-06029 GROMMET |
90189-06029 |
US $1.60 |
||
|
9046709196
|
9046709196
90467-09196 Clip, Rear Spoiler, No.1 |
90467-09196 |
from US $0.94 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
