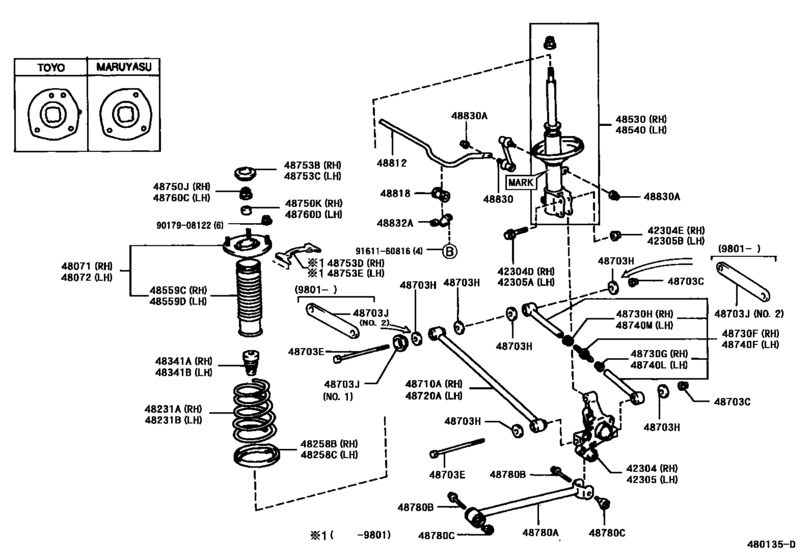

Rear Spring & Shock Absorber ([01.1997 - ] (9701- )AE111) Diagram Toyota COROLLA SPACIO
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- AE111
- grade
- AER
- ENGINE
- 4AFE
- From
- 04.1999
- To
- 05.2001
- Seating Capacity
- 05S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42304
|
42304
42304-12090
Carrier Sub-Assy, Rear Axle, Rh
[01.1997 - 05.2001] AE111 |
42304-12090 |
— | ||
|
42304D
|
42304D
90105-12102
Bolt (For Rear Axle Carrier)
[01.1997 -] AE111 |
90105-12102 |
— | ||
| replacement | |||||
|
42304D
|
42304D
90105-12236 Bolt (For Rear Axle Carrier)[01.1997 -] AE111 |
90105-12236 |
US $4.96 |
||
|
42304E
|
42304E
90179-12025 Nut (For Rear Axle Carrier)[01.1997 -] AE111 |
90179-12025 |
from US $1.25 |
||
|
42305
|
42305
42305-12090
Carrier Sub-Assy, Rear Axle, Lh
[01.1997 - 05.2001] AE111 |
42305-12090 |
— | ||
|
42305A
|
42305A
90105-12102
Bolt (For Rear Axle Carrier)
[01.1997 -] AE111 |
90105-12102 |
— | ||
| replacement | |||||
|
42305A
|
42305A
90105-12236 Bolt (For Rear Axle Carrier)[01.1997 -] AE111 |
90105-12236 |
US $4.96 |
||
|
42305B
|
42305B
90179-12025 Nut (For Rear Axle Carrier)[01.1997 -] AE111 |
90179-12025 |
from US $1.25 |
||
|
48071
|
48071
48071-12140 Support Sub-Assy, Rear Suspension, Rh[01.1997 -] AE11# |
48071-12140 |
from US $95.20 |
||
|
48072
|
48072
48072-12140 Support Sub-Assy, Rear Suspension, Lh[01.1997 -] AE11# |
48072-12140 |
US $106.92 |
||
|
48231A
|
48231A
48231-1H380
Spring, Coil, Rear Rh
[01.1997 -] AE111..04S,05S |
48231-1H380 |
— | ||
|
48231B
|
48231B
48231-1H380
Spring, Coil, Rear Rh
[01.1997 -] AE111..04S,05S |
48231-1H380 |
— | ||
|
48258B
|
48258B
48258-12040 Insulator, Rear Coil Spring, Lower Rh[01.1997 -] AE11# |
48258-12040 |
US $23.26 |
||
|
48258C
|
48258C
48258-12040 Insulator, Rear Coil Spring, Lower Rh[01.1997 -] AE11# |
48258-12040 |
US $23.26 |
||
|
48341A
|
48341A
48341-12130 Bumper, Rear Spring[01.1997 -] AE111 |
48341-12130 |
US $12.16 |
||
|
48341B
|
48341B
48341-12130 Bumper, Rear Spring[01.1997 -] AE111 |
48341-12130 |
US $12.16 |
||
|
48530
|
48530
48530-80021 Absorber Assy, Shock, Rear Rh[04.1998 -] AE111 MARK 48530-13050 |
48530-80021 |
US $346.53 |
||
|
48540
|
48540
48540-19305 Absorber Assy, Shock, Rear Lh[04.1998 - 05.2001] AE111 マーク ４８５４０−１３０５０ |
48540-19305 |
US $346.53 |
||
|
48559C
|
48559C
48559-12080 Cover, Rear Shock Absober Dust, Rh No.1[01.1997 -] AE11# ＴＯＹＯ |
48559-12080 |
US $23.26 |
||
|
48559C
|
48559C
48559-12090 Cover, Rear Shock Absober Dust[01.1997 -] AE11# 東海ゴム |
48559-12090 |
US $20.53 |
||
|
48559D
|
48559D
48559-12080 Cover, Rear Shock Absober Dust, Rh No.1[01.1997 -] AE11# ＴＯＹＯ |
48559-12080 |
US $23.26 |
||
|
48559D
|
48559D
48559-12090 Cover, Rear Shock Absober Dust[01.1997 -] AE11# 東海ゴム |
48559-12090 |
US $20.53 |
||
|
48703C
|
48703C
90179-14025 Nut (For Front Lower Ball Joint Setting)[01.1997 -] AE111 |
90179-14025 |
from US $1.74 |
||
|
48703E
|
48703E
90105-14099 Bolt(For Rear Suspension Arm)[01.1997 -] AE111 ＊１４−１．５ＰＸ２２２−２９ |
90105-14099 |
US $8.64 |
||
|
48703H
|
48703H
90201-14035 Washer, No.1(For Rear Suspension Arm)[01.1998 -] AE111 |
90201-14035 |
US $3.20 |
||
|
48703J
|
48703J
48715-12010 Washer, No.2(For Rear Suspension Arm)[01.1998 -] AE111 ＮＯ．２ |
48715-12010 |
US $16.77 |
||
|
48703J
|
48703J
90209-15002 Washer, No.2(For Rear Suspension Arm)[01.1998 -] AE111 ＮＯ．１ |
90209-15002 |
US $11.20 |
||
|
48710A
|
48710A
48710-12200
Arm Assy, Rear Suspension, No.1
[01.1997 -] AE111 |
48710-12200 |
— | ||
|
48720A
|
48720A
48710-12200
Arm Assy, Rear Suspension, No.1
[01.1997 -] AE111 |
48710-12200 |
— | ||
|
48730F
|
48730F
48730-13020 Arm Assy, Rear Suspension, No.2 Rh[01.1997 -] AE111 |
48730-13020 |
US $109.20 |
||
| replacement | |||||
|
48730F
|
48730F
48730-12170 Arm Assy, Rear Suspension, No.2 Rh[01.1997 -] AE111 |
48730-12170 |
US $110.66 |
||
|
48730G
|
48730G
90179-18017 Nut, No.1(For Rear Suspension Arm No.2 Rh)[01.1997 -] AE111 |
90179-18017 |
US $3.32 |
||
|
48730H
|
48730H
90179-18016 Nut, No.1(For Rear Suspension Arm No.2 Rh)[01.1997 -] AE111 |
90179-18016 |
US $3.32 |
||
|
48740F
|
48740F
48730-13020 Arm Assy, Rear Suspension, No.2 Rh[01.1997 -] AE111 |
48730-13020 |
US $109.20 |
||
| replacement | |||||
|
48740F
|
48740F
48730-12170 Arm Assy, Rear Suspension, No.2 Rh[01.1997 -] AE111 |
48730-12170 |
US $110.66 |
||
|
48740L
|
48740L
90179-18017 Nut, No.1(For Rear Suspension Arm No.2 Rh)[01.1997 -] AE111 |
90179-18017 |
US $3.32 |
||
|
48740M
|
48740M
90179-18016 Nut, No.1(For Rear Suspension Arm No.2 Rh)[01.1997 -] AE111 |
90179-18016 |
US $3.32 |
||
|
48750J
|
48750J
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[01.1997 -] AE11# |
90179-14015 |
from US $1.93 |
||
|
48750K
|
48750K
90387-15027 Collar(For Rear Support To Rear Shock Absorber)[01.1997 -] AE11# |
90387-15027 |
US $4.32 |
||
|
48753B
|
48753B
48753-12050 Cover, Rear Suspension Support[01.1997 -] AE11# |
48753-12050 |
US $7.04 |
||
|
48753C
|
48753C
48753-12050 Cover, Rear Suspension Support[01.1997 -] AE11# |
48753-12050 |
US $7.04 |
||
|
48760C
|
48760C
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[01.1997 -] AE11# |
90179-14015 |
from US $1.93 |
||
|
48760D
|
48760D
90387-15027 Collar(For Rear Support To Rear Shock Absorber)[01.1997 -] AE11# |
90387-15027 |
US $4.32 |
||
|
48780A
|
48780A
48780-12080 Rod Assy, Strut, Rear[01.1997 -] AE111 |
48780-12080 |
US $94.35 |
||
|
48780B
|
48780B
90119-12152 Bolt(For Rear Suspension Arm)[01.1997 -] AE111 |
90119-12152 |
from US $3.59 |
||
|
48780C
|
48780C
90179-12091 Nut(For Front Suspension Lower Arm)[01.1997 -] AE111 |
90179-12091 |
from US $1.23 |
||
|
48812
|
48812
48812-12180 Bar, Stabilizer, Rear[07.1997 -] AE111..05S |
48812-12180 |
US $122.30 |
||
|
48818
|
48818
48818-12160 Bush, Stabilizer, Rear[07.1997 -] AE115;AE111..05S |
48818-12160 |
US $7.71 |
||
|
48830
|
48830
48830-12060 Link Assy, Rear Stabilizer[01.1997 -] AE111 |
48830-12060 |
US $74.26 |
||
| replacement | |||||
|
48830
|
48830
48830-20010 Link Assy, Rear Stabilizer[01.1997 -] AE111 |
48830-20010 |
US $79.92 |
||
|
48830A
|
48830A
90179-10183 Nut(For Front Stabilizer Link)[01.1997 -] AE11# |
90179-10183 |
from US $0.88 |
||
|
48832A
|
48832A
48832-20030 Bracket, Stabilizer(For Rear)[01.1997 -] AE11# |
48832-20030 |
from US $3.84 |
||
|
9017908122
|
9017908122
90179-08122 Nut(For Rear Suspension Support) |
90179-08122 |
US $7.04 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
