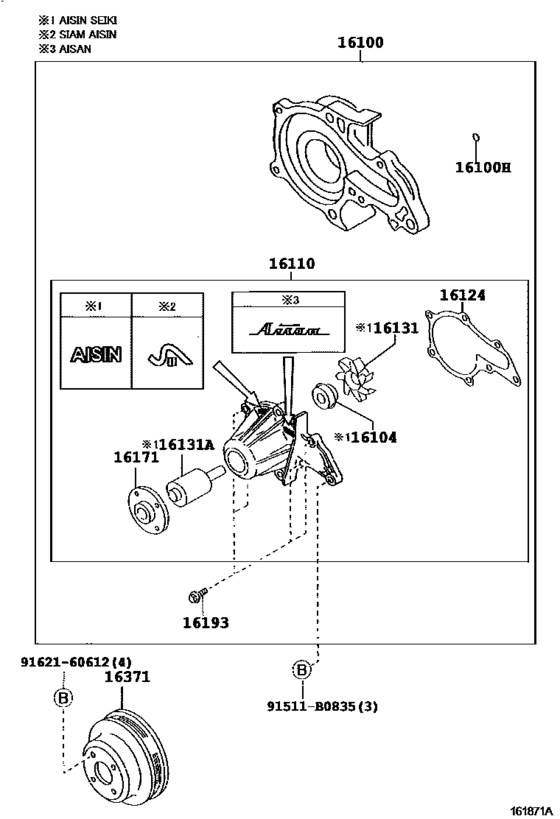

Water Pump ([01.1997 - ] (9701- )) Diagram Toyota COROLLA SPACIO
- Year
- 1999 - 2001
- Sales region
- Japan
- Frame
- AE111
- grade
- AER
- ENGINE
- 4AFE
- From
- 04.1999
- To
- 05.2001
- Seating Capacity
- 05S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-09120
Pump Assy, Engine Water
[04.1999 - 05.2001] 4AFE..AE111 SIAM AISIN |
16100-09120 |
— | ||
|
16100
|
16100
16100-19295 Pump Assy, Engine Water[04.1999 - 05.2001] 4AFE..AE111 ＡＩＳＩＮ ＳＥＩＫＩ |
16100-19295 |
US $170.35 |
||
| replacement | |||||
|
16100
|
16100
16100-19355 Pump Assy, Engine Water[04.1999 - 05.2001] 4AFE..AE111 ＡＩＳＩＮ ＳＥＩＫＩ |
16100-19355 |
US $168.48 |
||
|
16100H
|
16100H
96761-24035 Ring, O(For Water Pump)[01.1997 - 05.2001] 4AFE,7AFE..AE11# |
96761-24035 |
from US $2.85 |
||
|
16104
|
16104
16104-46060 Seal Set, Water Pump[08.1997 - 05.2001] 4AFE,7AFE..AE11# |
16104-46060 |
US $47.61 |
||
|
16110
|
16110
16110-19146 Pump Assy, Water, W/o Coupling[01.1997 - 05.2001] 4AFE..AE111 ＡＩＳＡＮ |
16110-19146 |
from US $83.87 |
||
|
16110
|
16110
16110-19205 Pump Assy, Water, W/o Coupling[01.1997 - 05.2001] 4AFE..AE111 ＡＩＳＩＮ ＳＥＩＫＩ |
16110-19205 |
from US $87.54 |
||
|
16124
|
16124
16124-15110 Gasket, Water Pump Cover[01.1997 - 05.2001] 4AFE,7AFE..AE11# ＡＩＳＩＮ ＳＥＩＫＩ |
16124-15110 |
from US $2.69 |
||
|
16124
|
16124
16124-16060
Gasket, Water Pump Cover
[01.1997 - 05.2001] 4AFE,7AFE..AE11# ＡＩＳＡＮ |
16124-16060 |
— | ||
|
16131
|
16131
16131-16090 Rotor, Water Pump[01.1997 - 05.2001] 4AFE,7AFE..AE11# |
16131-16090 |
US $9.32 |
||
|
16131A
|
16131A
90029-36846 Bearing, Water Pump[01.1997 - 05.2001] 4AFE,7AFE..AE11# |
90029-36846 |
US $39.31 |
||
|
16171
|
16171
16171-10012 Seat, Water Pump Pulley[01.1997 - 05.2001] 4AFE,7AFE..AE11# ＡＩＳＩＮ ＳＥＩＫＩ |
16171-10012 |
US $19.66 |
||
|
16171
|
16171
16171-15071 Seat, Water Pump Pulley[01.1997 - 05.2001] 4AFE,7AFE..AE11# ＡＩＳＡＮ |
16171-15071 |
US $13.25 |
||
|
16193
|
16193
16193-15011 Bolt, Stud(For Water Pump Cover)[01.1997 - 05.2001] 4AFE,7AFE..AE11# ＡＩＳＩＮ ＳＥＩＫＩ |
16193-15011 |
US $4.80 |
||
|
16193
|
16193
16193-15100 Bolt, Stud(For Water Pump Cover)[01.1997 - 05.2001] 4AFE,7AFE..AE11# ＡＩＳＡＮ |
16193-15100 |
US $1.89 |
||
|
16371
|
16371
16371-02030 Pulley, Fan[11.1998 - 05.2001] 4AFE,7AFE..AE11# （Ｌ） |
16371-02030 |
US $39.89 |
||
|
16371
|
16371
16371-15071 Pulley, Fan[11.1998 - 05.2001] 4AFE,7AFE..AE11# （Ｊ） |
16371-15071 |
US $37.27 |
||
|
91511B0835
|
91511B0835
91511-B0835
Bolt(For Cylinder Head Set Sub)
|
91511-B0835 |
— | ||
| replacement | |||||
|
91511B0835
|
91511B0835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
from US $1.56 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
