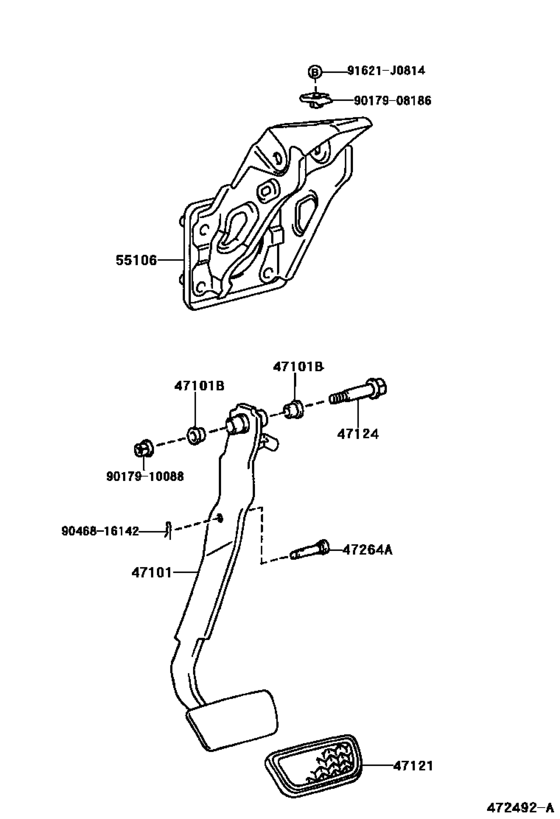

Brake Pedal & Bracket ([05.2001 - ] (0105- )) Diagram Toyota COROLLA SPACIO
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- NZE121
- grade
- X
- ENGINE
- 1NZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 07S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47101-12600
Pedal Sub-Assy, Brake
[05.2001 - 04.2003] NZE121,ZZE12# |
47101-12600 |
— | ||
|
47101B
|
47101B
90386-13015 Bush(For Clutch Pedal)[05.2001 - 04.2003] NZE121,ZZE12# |
90386-13015 |
from US $0.64 |
||
|
47121
|
47121
47121-52010 Pad, Brake Pedal[05.2001 - 04.2003] NZE121,ZZE12# |
47121-52010 |
from US $3.39 |
||
|
47124
|
47124
90109-10174 Shaft, Clutch Pedal[05.2001 - 04.2003] NZE121,ZZE12# |
90109-10174 |
US $2.48 |
||
|
47264A
|
47264A
47148-12070 Pin(For Push Rod)[05.2001 - 04.2003] NZE121,ZZE12# |
47148-12070 |
US $3.06 |
||
|
55106
|
55106
55106-13020 Support Sub-Assy, Brake Pedal[05.2001 - 04.2003] NZE121,ZZE12# |
55106-13020 |
US $45.43 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
|
9017908186
|
9017908186
90179-08186 New Genuine Part |
90179-08186 |
US $3.76 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $0.99 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.82 |
