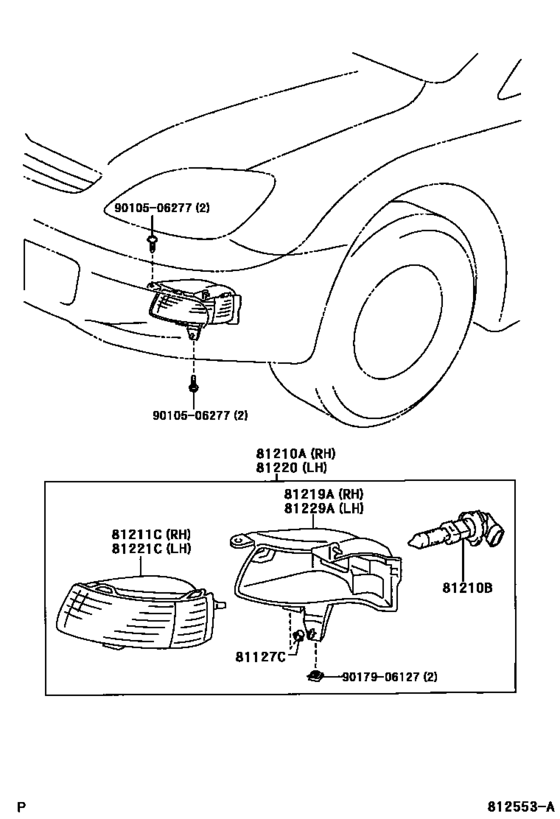

Fog Lamp ([04.2003 - ] (0304- )) Diagram Toyota COROLLA SPACIO
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- NZE121
- grade
- X
- ENGINE
- 1NZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 07S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81127C
|
81127C
90075-10811 Bearing Fog Lamp[04.2003 -] NZE121,ZZE12# |
90075-10811 |
from US $2.34 |
||
|
81210A
|
81210A
81210-13100 Lamp Assy, Fog, Rh[04.2003 -] NZE121,ZZE12# |
81210-13100 |
US $310.13 |
||
|
81210A
|
81210A
81210-52050 Lamp Assy, Fog, Rh[05.2001 - 04.2003] NZE121,ZZE12# |
81210-52050 |
US $200.93 |
||
| replacement | |||||
|
81210A
|
81210A
81210-52053
Lamp Assy, Fog, Rh
[05.2001 - 04.2003] NZE121,ZZE12# |
81210-52053 |
— | ||
|
81210B
|
81210B
90080-81040
Bulb(For Headlamp, No.1)
[05.2001 - 04.2003] NZE121,ZZE122 １２Ｖ ５１Ｗ |
90080-81040 |
— | ||
| replacement | |||||
|
81210B
|
81210B
90981-13047 Bulb (HB4)[05.2001 - 04.2003] NZE121,ZZE122 １２Ｖ ５１Ｗ |
90981-13047 |
from US $15.29 |
||
|
81210B
|
81210B
90981-13047 Bulb (HB4)[05.2001 - 04.2003] NZE121,ZZE12# １２Ｖ ５５Ｗ，ハロゲン |
90981-13047 |
from US $15.29 |
||
|
81211C
|
81211C
81211-12180 Lamp Unit, Fog Lamp, Rh[04.2003 -] NZE121,ZZE12# |
81211-12180 |
from US $168.89 |
||
|
81211C
|
81211C
81211-52050 Lamp Unit, Fog Lamp, Rh[05.2001 - 04.2003] NZE121,ZZE12# |
81211-52050 |
US $160.16 |
||
| replacement | |||||
|
81211C
|
81211C
81211-52053 Lamp Unit, Fog Lamp, RhFOG LAMP, RH [05.2001 - 04.2003] NZE121,ZZE12# |
81211-52053 |
US $184 |
||
|
81219A
|
81219A
81219-13100 Bracket, Fog Lamp, Rh[04.2003 -] NZE121,ZZE12# |
81219-13100 |
from US $86.68 |
||
|
81220
|
81220
81220-13100 Lamp Assy, Fog, Lh[04.2003 -] NZE121,ZZE12# |
81220-13100 |
US $310.13 |
||
|
81220
|
81220
81220-52050
Lamp Assy, Fog, Lh
[05.2001 - 04.2003] NZE121,ZZE12# |
81220-52050 |
— | ||
| replacement | |||||
|
81220
|
81220
81220-52053
Lamp Assy, Fog, Lh
[05.2001 - 04.2003] NZE121,ZZE12# |
81220-52053 |
— | ||
|
81221C
|
81221C
81221-12180 Lamp Unit, Fog Lamp, Lh[04.2003 -] NZE121,ZZE12# |
81221-12180 |
from US $168.23 |
||
|
81221C
|
81221C
81221-52050 Lamp Unit, Fog Lamp, Lh[05.2001 - 04.2003] NZE121,ZZE12# |
81221-52050 |
US $160.16 |
||
| replacement | |||||
|
81221C
|
81221C
81221-52053 Lamp Unit, Fog Lamp, LhFOG LAMP, LH [05.2001 - 04.2003] NZE121,ZZE12# |
81221-52053 |
US $184 |
||
|
81229A
|
81229A
81229-13100 Bracket, Fog Lamp, Lh[04.2003 -] NZE121,ZZE12# |
81229-13100 |
US $87.36 |
||
|
9010506277
|
9010506277
90105-06277 BOLT FLANGE |
90105-06277 |
US $1.97 |
||
|
9017906127
|
9017906127
90179-06127 Bracket, Front Licence Plate Mounting |
90179-06127 |
from US $0.68 |
||
