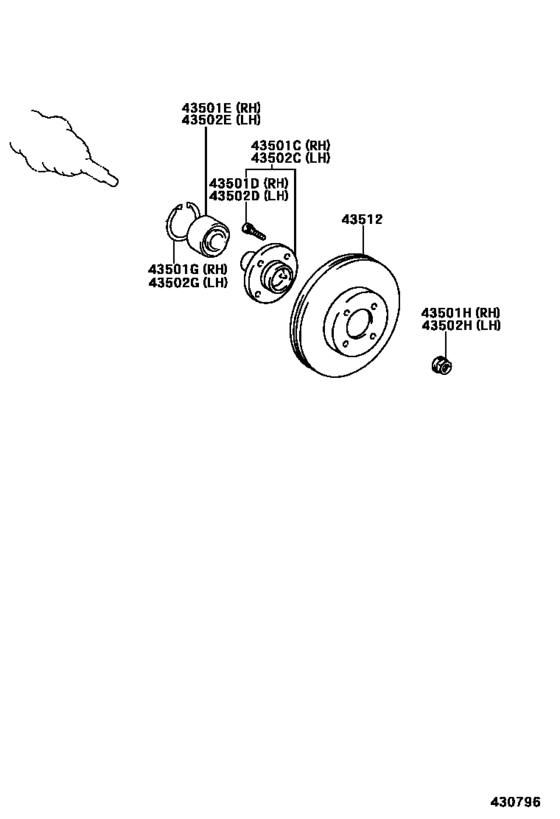

Front Axle Hub ([05.2001 - ] (0105- )) Diagram Toyota COROLLA SPACIO
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- NZE121
- grade
- X
- ENGINE
- 1NZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 07S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43501C
|
43501C
43502-12140 Hub Sub-Assy, Front Axle, Rh[05.2001 - 04.2003] NZE121,ZZE12# |
43502-12140 |
from US $99.41 |
||
|
43501D
|
43501D
90942-02049 Bolt, Hub[05.2001 - 04.2003] NZE121,ZZE12# |
90942-02049 |
US $4.30 |
||
| replacement | |||||
|
43501D
|
43501D
90942-02082 Bolt, Hub[05.2001 - 04.2003] NZE121,ZZE12# |
90942-02082 |
from US $2.32 |
||
|
43501E
|
43501E
90363-40066 Bearing (For Axle Shaft)[05.2001 - 04.2003] NZE121,ZZE12# |
90363-40066 |
from US $46.61 |
||
|
43501G
|
43501G
90521-79002 Ring, Snap (For Axle Shaft)[05.2001 - 04.2003] NZE121,ZZE12# |
90521-79002 |
from US $2.03 |
||
|
43501H
|
43501H
90177-22001 Nut (For Axle Shaft)[05.2001 - 04.2003] NZE121,ZZE12# |
90177-22001 |
from US $2.36 |
||
|
43502C
|
43502C
43502-12140 Hub Sub-Assy, Front Axle, Rh[05.2001 - 04.2003] NZE121,ZZE12# |
43502-12140 |
from US $99.41 |
||
|
43502D
|
43502D
90942-02049 Bolt, Hub[05.2001 - 04.2003] NZE121,ZZE12# |
90942-02049 |
US $4.30 |
||
| replacement | |||||
|
43502D
|
43502D
90942-02082 Bolt, Hub[05.2001 - 04.2003] NZE121,ZZE12# |
90942-02082 |
from US $2.32 |
||
|
43502E
|
43502E
90363-40066 Bearing (For Axle Shaft)[05.2001 - 04.2003] NZE121,ZZE12# |
90363-40066 |
from US $46.61 |
||
|
43502G
|
43502G
90521-79002 Ring, Snap (For Axle Shaft)[05.2001 - 04.2003] NZE121,ZZE12# |
90521-79002 |
from US $2.03 |
||
|
43502H
|
43502H
90177-22001 Nut (For Axle Shaft)[05.2001 - 04.2003] NZE121,ZZE12# |
90177-22001 |
from US $2.36 |
||
|
43512
|
43512
43512-12620 Disc, Front[05.2001 - 04.2003] ZZE12#;NZE121..07S |
43512-12620 |
US $171.81 |
||
| replacement | |||||
|
43512
|
43512
43512-12621 Disc, Front[05.2001 - 04.2003] ZZE12#;NZE121..07S |
43512-12621 |
from US $199.99 |
||
|
43512
|
43512
43512-12621 Disc, Front[06.2004 - 06.2007] NZE121,ZZE12# |
43512-12621 |
from US $199.99 |
||
