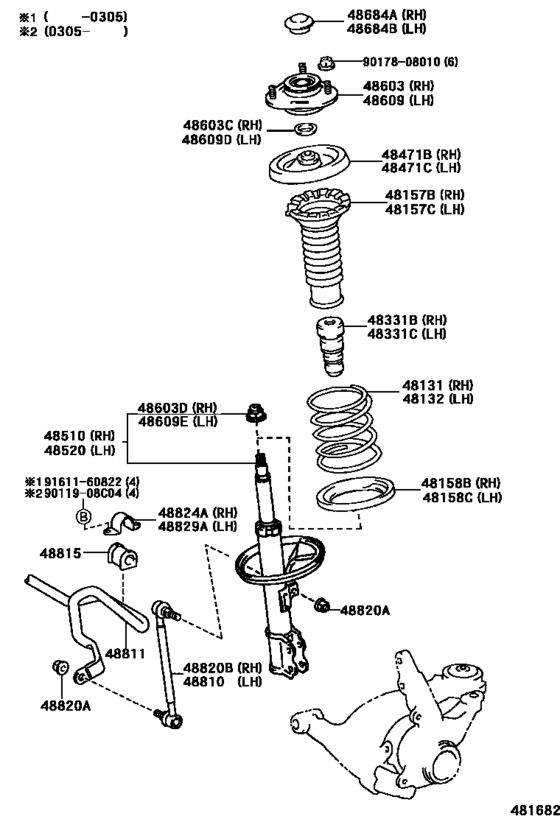

Front Spring & Shock Absorber ([05.2001 - ] (0105- )) Diagram Toyota COROLLA SPACIO
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- NZE121
- grade
- X
- ENGINE
- 1NZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 07S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-13130 Spring, Front Coil, Rh[05.2001 - 04.2003] NZE121 |
48131-13130 |
US $94.64 |
||
|
48132
|
48132
48131-13130 Spring, Front Coil, Rh[05.2001 - 04.2003] NZE121 |
48131-13130 |
US $94.64 |
||
|
48157B
|
48157B
48157-12080 Insulator, Front Coil Spring, Upper[05.2001 - 04.2003] NZE121,ZZE12# |
48157-12080 |
from US $15.15 |
||
|
48157C
|
48157C
48157-12080 Insulator, Front Coil Spring, Upper[05.2001 - 04.2003] NZE121,ZZE12# |
48157-12080 |
from US $15.15 |
||
|
48158B
|
48158B
48158-47010 Insulator, Front Coil Spring, Lower Rh[05.2001 - 04.2003] NZE121,ZZE12# |
48158-47010 |
from US $9.95 |
||
|
48158C
|
48158C
48158-47010 Insulator, Front Coil Spring, Lower Rh[05.2001 - 04.2003] NZE121,ZZE12# |
48158-47010 |
from US $9.95 |
||
|
48331B
|
48331B
48331-12200 Bumper, Front Spring, Rh[05.2001 - 04.2003] NZE121 |
48331-12200 |
from US $10.76 |
||
|
48331C
|
48331C
48331-12200 Bumper, Front Spring, Rh[05.2001 - 04.2003] NZE121 |
48331-12200 |
from US $10.76 |
||
|
48471B
|
48471B
48044-12100 Seat, Front Coil Spring, Upper[05.2001 - 04.2003] NZE121,ZZE12# |
48044-12100 |
from US $10.35 |
||
|
48471C
|
48471C
48044-12100 Seat, Front Coil Spring, Upper[05.2001 - 04.2003] NZE121,ZZE12# |
48044-12100 |
from US $10.35 |
||
|
48510
|
48510
48510-80027 Absorber Assy, Shock, Front Rh[05.2001 - 05.2002] NZE121 マーク ４８５１０−１３０２０ |
48510-80027 |
US $301.39 |
||
| replacement | |||||
|
48510
|
48510
48510-80073 Absorber Assy, Shock, Front Rh[05.2001 - 05.2002] NZE121 マーク ４８５１０−１３０２０ |
48510-80073 |
US $301.39 |
||
|
48510
|
48510
48510-80073 Absorber Assy, Shock, Front Rh[05.2002 - 04.2003] NZE121 マーク ４８５１０−１３０２１ |
48510-80073 |
US $301.39 |
||
|
48510
|
48510
48510-80105 Absorber Assy, Shock, Front Rh[04.2003 -] NZE121 マーク ４８５１０−１３０６０ |
48510-80105 |
US $302.85 |
||
|
48520
|
48520
48520-19735 Absorber Assy, Shock, Front Lh[05.2001 - 05.2002] NZE121 マーク ４８５２０−１３０２０ |
48520-19735 |
US $301.39 |
||
| replacement | |||||
|
48520
|
48520
48520-19845 Absorber Assy, Shock, Front Lh[05.2001 - 05.2002] NZE121 マーク ４８５２０−１３０２０ |
48520-19845 |
US $301.39 |
||
|
48520
|
48520
48520-19845 Absorber Assy, Shock, Front Lh[05.2002 - 04.2003] NZE121 マーク ４８５２０−１３０２１ |
48520-19845 |
US $301.39 |
||
|
48520
|
48520
48520-80005 Absorber Assy, Shock, Front Lh[04.2003 -] NZE121 マーク ４８５２０−１３０６０ |
48520-80005 |
US $302.85 |
||
|
48603
|
48603
48609-13010 Support Sub-Assy, Front Suspension[05.2001 - 04.2003] NZE121,ZZE12# |
48609-13010 |
from US $75.04 |
||
|
48603C
|
48603C
90303-22002 Seal, Dust(For Front Suspension Support)[05.2001 - 04.2003] NZE121,ZZE12# |
90303-22002 |
from US $3.58 |
||
|
48603D
|
48603D
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[05.2001 - 04.2003] NZE121,ZZE12# |
90179-14015 |
from US $0.90 |
||
|
48609
|
48609
48609-13010 Support Sub-Assy, Front Suspension[05.2001 - 04.2003] NZE121,ZZE12# |
48609-13010 |
from US $75.04 |
||
|
48609D
|
48609D
90303-22002 Seal, Dust(For Front Suspension Support)[05.2001 - 04.2003] NZE121,ZZE12# |
90303-22002 |
from US $3.58 |
||
|
48609E
|
48609E
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[05.2001 - 04.2003] NZE121,ZZE12# |
90179-14015 |
from US $0.90 |
||
|
48684A
|
48684A
48684-12070 Cover, Front Suspension Support Dust[05.2001 - 12.2002] NZE121,ZZE12# |
48684-12070 |
from US $8.72 |
||
|
48684A
|
48684A
48684-52010 Cover, Front Suspension Support Dust[12.2002 - 04.2003] NZE121,ZZE12# |
48684-52010 |
from US $9.44 |
||
|
48684B
|
48684B
48684-12070 Cover, Front Suspension Support Dust[05.2001 - 12.2002] NZE121,ZZE12# |
48684-12070 |
from US $8.72 |
||
|
48684B
|
48684B
48684-52010 Cover, Front Suspension Support Dust[12.2002 - 04.2003] NZE121,ZZE12# |
48684-52010 |
from US $9.44 |
||
|
48810
|
48810
48820-47010 Link Assy, Front Stabilizer[05.2001 - 04.2003] NZE121,ZZE12# |
48820-47010 |
from US $71.39 |
||
|
48811
|
48811
48811-13050 Bar, Stabilizer, Front[05.2001 - 04.2003] NZE121,ZZE122 |
48811-13050 |
US $160.16 |
||
|
48815
|
48815
48815-13040 Bush, Front Stabilizer Bar, No.1[05.2001 - 04.2003] NZE121,ZZE122 |
48815-13040 |
from US $10.02 |
||
|
48820A
|
48820A
90179-12151 Nut(For Front Stabilizer Link)[05.2001 - 04.2003] NZE121,ZZE12# |
90179-12151 |
from US $0.92 |
||
|
48820B
|
48820B
48820-47010 Link Assy, Front Stabilizer[05.2001 - 04.2003] NZE121,ZZE12# |
48820-47010 |
from US $71.39 |
||
|
48824A
|
48824A
48824-26210 Bracket, Front Stabilizer, No.1[05.2001 - 04.2003] NZE121,ZZE12# |
48824-26210 |
from US $10.76 |
||
|
48829A
|
48829A
48824-26210 Bracket, Front Stabilizer, No.1[05.2001 - 04.2003] NZE121,ZZE12# |
48824-26210 |
from US $10.76 |
||
|
9011908C04
|
9011908C04
90119-08C04 BOLT WWASHER |
90119-08C04 |
US $1.43 |
||
|
9017808010
|
9017808010
90178-08010 Nut(For Front Suspension Support) |
90178-08010 |
from US $0.90 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.19 |
||
