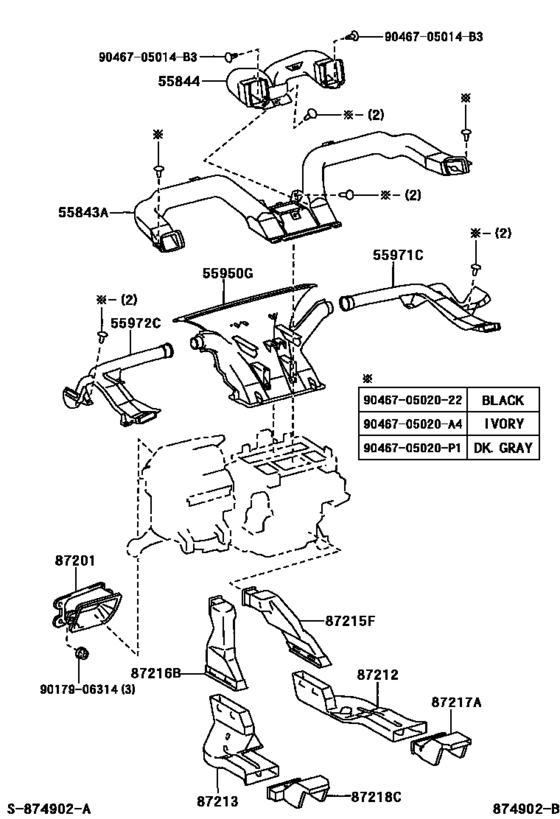

Heating & Air Conditioning - Control & Air Duct ([05.2001 - ] ｴｱ ﾀﾞｸﾄ (0105- )) Diagram Toyota COROLLA SPACIO
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- NZE121
- grade
- X
- ENGINE
- 1NZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 07S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55843A
|
55843A
55843-13020 Duct, Heater To Register, No.1[05.2001 - 04.2003] NZE121,ZZE12# |
55843-13020 |
US $91.73 |
||
|
55844
|
55844
55844-13020 Duct, Heater To Register, No.2[05.2001 - 04.2003] NZE121,ZZE12# |
55844-13020 |
US $43.53 |
||
|
55950G
|
55950G
55950-13020 Nozzle Assy, Defroster[05.2001 - 04.2003] NZE121,ZZE12# |
55950-13020 |
US $116.48 |
||
|
55950G
|
55950G
55950-13040 Nozzle Assy, Defroster[04.2003 -] NZE121,ZZE12# ｱﾘ(ﾊﾞﾂｸ ｶﾞｲﾄﾞ ﾓﾆﾀ-) |
55950-13040 |
US $116.48 |
||
|
55971C
|
55971C
55971-13020 Duct, Side Defroster Nozzle, No.1[05.2001 - 04.2003] NZE121,ZZE12# |
55971-13020 |
US $32.91 |
||
|
55972C
|
55972C
55972-13020 Duct, Side Defroster Nozzle, No.2[05.2001 - 04.2003] NZE121,ZZE12# |
55972-13020 |
US $32.91 |
||
|
87201
|
87201
87201-13020
Duct Sub-Assy, Air, No.1
[05.2001 - 04.2003] NZE121,ZZE12# |
87201-13020 |
— | ||
|
87212
|
87212
87212-12120 Duct, Air, Rear No.1[05.2001 - 04.2003] NZE121,ZZE122 |
87212-12120 |
US $75.71 |
||
|
87213
|
87213
87213-12080 Duct, Air, Rear No.2[05.2001 - 04.2003] NZE121,ZZE12# |
87213-12080 |
US $75.71 |
||
|
87215F
|
87215F
87215-12040 Duct, Air, Rear No.3[05.2001 - 04.2003] NZE121,ZZE12# |
87215-12040 |
US $30.14 |
||
|
87216B
|
87216B
87216-12020 Duct, Air, Rear No.4[05.2001 - 04.2003] NZE121,ZZE12# |
87216-12020 |
US $40.62 |
||
|
87217A
|
87217A
87217-13020
Duct, Air, Rear No.6
[05.2001 - 04.2003] NZE121,ZZE122 |
87217-13020 |
— | ||
|
87218C
|
87218C
87218-13040
Duct, Air, Rear No.6
[05.2001 - 04.2003] NZE121,ZZE12# |
87218-13040 |
— | ||
|
9017906314
|
9017906314
90179-06314 NUT |
90179-06314 |
from US $0.80 |
||
|
9046705014B3
|
9046705014B3
90467-05014-B3 Clip, Heater To Register Duct |
90467-05014-B3 |
US $1.97 |
||
|
9046705020A4
|
9046705020A4
90467-05020-A4 Clip, Instrument Panel, No.1 |
90467-05020-A4 |
US $1.38 |
||
|
9046705020P1
|
9046705020P1
90467-05020-P1 Clip (For Roof Side Garnish) |
90467-05020-P1 |
US $1.97 |
||
|
904670502022
|
904670502022
90467-05020-22 Clip, Instrument Panel |
90467-05020-22 |
US $1.08 |
