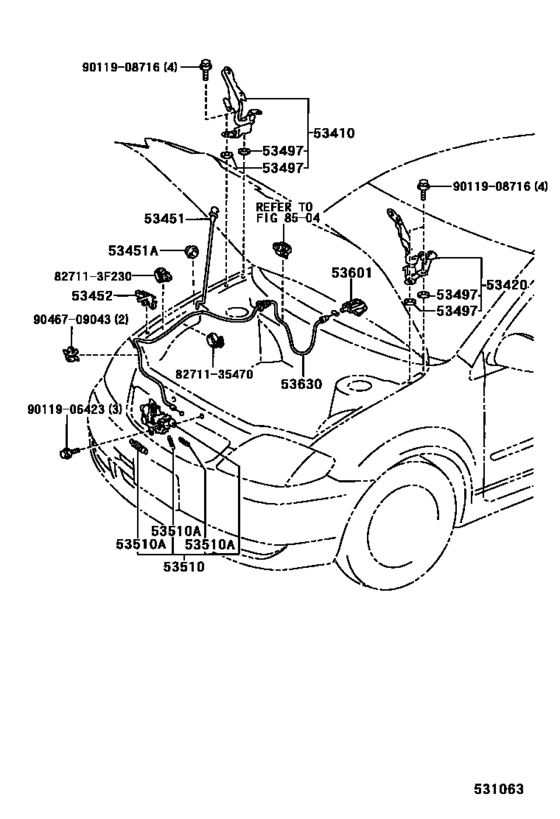

Hood Lock & Hinge ([05.2001 - ] (0105- )) Diagram Toyota COROLLA SPACIO
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- NZE121
- grade
- X
- ENGINE
- 1NZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 07S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-13010 Hinge Assy, Hood, Rh[05.2001 - 04.2003] NZE121,ZZE12# |
53410-13010 |
from US $30.58 |
||
|
53420
|
53420
53420-13010 Hinge Assy, Hood, Lh[05.2001 - 04.2003] NZE121,ZZE12# |
53420-13010 |
from US $30.58 |
||
|
53451
|
53451
53440-13010 Rod, Hood Support[05.2001 - 04.2003] NZE121,ZZE12# |
53440-13010 |
US $17.33 |
||
|
53451A
|
53451A
90480-15034 Grommet(For Hood Support)[05.2001 - 04.2003] NZE121,ZZE12# |
90480-15034 |
from US $1.79 |
||
|
53452
|
53452
53452-13010 Holder, Hood Stay[05.2001 - 04.2003] NZE121,ZZE12# |
53452-13010 |
from US $8.70 |
||
|
53497
|
53497
53497-50010 Pad, Hood Hinge, No.1[05.2001 - 04.2003] NZE121,ZZE12# |
53497-50010 |
US $1.75 |
||
|
53510
|
53510
53510-13040 Lock Assy, Hood[05.2001 - 04.2003] NZE121,ZZE12# |
53510-13040 |
US $43.10 |
||
|
53510
|
53510
53510-13070 Lock Assy, Hood[04.2003 -] NZE121,ZZE12# |
53510-13070 |
US $43.24 |
||
|
53510A
|
53510A
90506-09052 Spring, Tension(For Hood Lock)[05.2001 - 04.2003] NZE121,ZZE12# 線径＝０．９，コイル巻数＝２０．７５ |
90506-09052 |
US $1.79 |
||
|
53510A
|
53510A
90506-09055 Spring, Tension(For Hood Lock)[04.2003 -] NZE121,ZZE12# 線径＝０．９，コイル巻数＝２１ |
90506-09055 |
from US $1.52 |
||
|
53510A
|
53510A
90506-12063 Spring, Tension(For Hood Lock)[05.2001 - 04.2003] NZE121,ZZE12# 線径＝１．２，コイル巻数＝８．５ |
90506-12063 |
from US $1.33 |
||
|
53510A
|
53510A
90506-16077 Spring, Tension(For Hood Lock)[11.2002 - 04.2003] NZE121,ZZE12# 線径＝１．６，コイル巻数＝１２ |
90506-16077 |
US $2.15 |
||
|
53510A
|
53510A
90506-18067 Spring, Tension(For Hood Lock)[05.2001 - 11.2002] NZE121,ZZE12# 線径＝１．８，コイル巻数＝１３ |
90506-18067 |
from US $1.48 |
||
|
53601
|
53601
53601-52010-A0 Lever Sub-Assy, Hood Lock Control[05.2001 - 04.2003] NZE121,ZZE12#..V,X IVORY,TRIM0# |
53601-52010-A0 |
from US $2.55 |
||
|
53601
|
53601
53601-52010-B3 Lever Sub-Assy, Hood Lock Control[11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L),DK.GRAY,TRIM10 |
53601-52010-B3 |
from US $26.04 |
||
|
53630
|
53630
53630-12510 Cable Assy, Hood Lock Control[05.2001 - 04.2003] NZE121,ZZE12# |
53630-12510 |
from US $26.72 |
||
|
827113F230
|
827113F230
82711-3F230 Clamp, Sliding Roof Drain Hose |
82711-3F230 |
US $3.58 |
||
|
8271135470
|
8271135470
82711-35470 Wire, Fuse To Fuse(for Combustion Heater) |
82711-35470 |
US $3.94 |
||
|
9011906423
|
9011906423
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.25 |
||
|
9011908716
|
9011908716
90119-08716 BOLT WWASHER |
90119-08716 |
from US $0.76 |
||
|
9046709043
|
9046709043
90467-09043 Clamp, Hood Lock Control Cable |
90467-09043 |
from US $1.42 |
