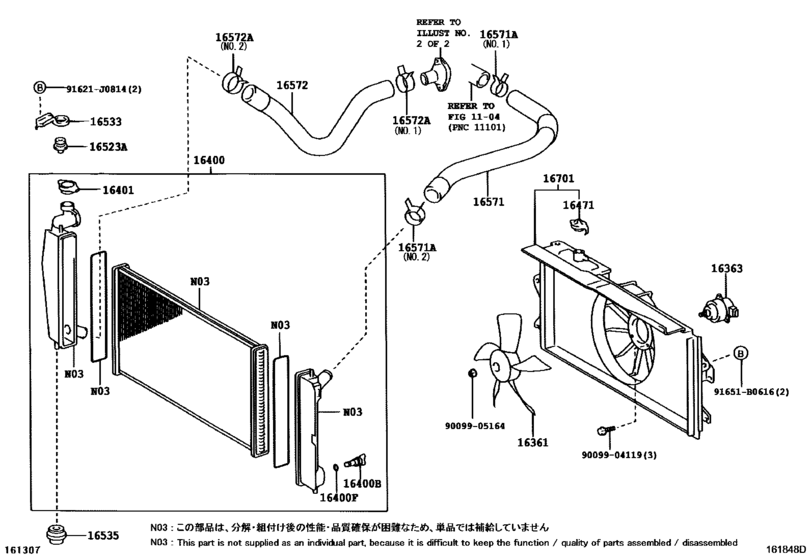

Radiator & Water Outlet ([04.2003 - ] (0304- )1NZFE) Diagram Toyota COROLLA SPACIO
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- NZE121
- grade
- X
- ENGINE
- 1NZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 07S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361
|
16361
16361-21060 Fan[05.2001 - 04.2003] 1NZFE..NZE121; 1ZZFE..ZZE122 |
16361-21060 |
US $85.28 |
||
|
16363
|
16363
16363-23020 Motor, Cooling Fan[05.2001 - 04.2003] 1NZFE..NZE121; 1ZZFE..ZZE122 |
16363-23020 |
US $394.68 |
||
|
16363
|
16363
16363-28150 Motor, Cooling Fan[05.2003 -] 1NZFE..NZE121; 1ZZFE..ZZE122 |
16363-28150 |
from US $182.99 |
||
|
16400
|
16400
16400-21160 Radiator Assy[05.2001 - 04.2003] 1NZFE..NZE121; 1ZZFE..ZZE122 |
16400-21160 |
US $492.13 |
||
| replacement | |||||
|
16400
|
16400
16400-21180 Radiator Assy[05.2001 - 04.2003] 1NZFE..NZE121; 1ZZFE..ZZE122 |
16400-21180 |
US $627.12 |
||
|
16400B
|
16400B
23322-54010 Plug,air(For Oil Cooler Drain Cock)[05.2001 - 04.2003] 1NZFE..NZE121; 1ZZFE..ZZE12# |
23322-54010 |
from US $4.86 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[05.2001 - 04.2003] 1NZFE..NZE121; 1ZZFE..ZZE12# |
16492-21050 |
from US $2.16 |
||
|
16401
|
16401
16401-72090
Cap Sub-Assy, Radiator
[05.2001 - 04.2003] 1NZFE..NZE121; 1ZZFE..ZZE12# |
16401-72090 |
— | ||
| replacements | |||||
|
16401
|
16401
16401-20353
Cap Sub-Assy, Radiator
[05.2001 - 04.2003] 1NZFE..NZE121; 1ZZFE..ZZE12# |
16401-20353 |
— | ||
|
16401
|
16401
16401-36030 Cap Sub-Assy, Radiator[05.2001 - 04.2003] 1NZFE..NZE121; 1ZZFE..ZZE12# |
16401-36030 |
from US $16.13 |
||
|
16471
|
16471
16405-21030 Cap Sub-Assy, Reserve Tank[11.2002 - 04.2003] 1NZFE..NZE121; 1ZZFE..ZZE12# |
16405-21030 |
from US $11.01 |
||
|
16471
|
16471
16471-23010 Cap Sub-Assy, Reserve Tank[05.2001 - 11.2002] 1NZFE..NZE121; 1ZZFE..ZZE12# |
16471-23010 |
US $1.60 |
||
|
16523A
|
16523A
16523-21020 Cushion, Radiator Support[05.2001 - 04.2003] 1NZFE..NZE121; 1ZZFE..ZZE12# |
16523-21020 |
from US $2.85 |
||
|
16533
|
16533
16533-21020 Support, Radiator, Upper[05.2001 - 04.2003] 1NZFE..NZE121; 1ZZFE..ZZE12# |
16533-21020 |
US $36.79 |
||
|
16535
|
16535
16504-21010 Support, Radiator, Lower[05.2001 - 09.2001] 1NZFE..NZE121; 1ZZFE..ZZE12# |
16504-21010 |
US $21.55 |
||
| replacement | |||||
|
16535
|
16535
16535-21040 Support, Radiator, Lower[05.2001 - 09.2001] 1NZFE..NZE121; 1ZZFE..ZZE12# |
16535-21040 |
US $19.18 |
||
|
16535
|
16535
16535-21040 Support, Radiator, Lower[09.2001 - 04.2003] 1NZFE..NZE121; 1ZZFE..ZZE12# |
16535-21040 |
US $19.18 |
||
|
16571
|
16571
16571-21030 Hose, Radiator, Inlet[05.2001 - 04.2003] 1NZFE..NZE121 |
16571-21030 |
from US $20.34 |
||
|
16571A
|
16571A
90466-37002 Clamp Or Clip, Hose(For Radiator Inlet)[05.2001 - 04.2003] 1NZFE..NZE121 ＮＯ．２ |
90466-37002 |
from US $6.12 |
||
|
16571A
|
16571A
90467-34003
Clip(For Oil Return Hose)
[05.2001 - 04.2002] 1NZFE..NZE121 ＮＯ．１; 1ZZFE..ZZE12# ＮＯ．２ |
90467-34003 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)[05.2001 - 04.2002] 1NZFE..NZE121 ＮＯ．１; 1ZZFE..ZZE12# ＮＯ．２ |
90467-34004 |
from US $3.43 |
||
|
16571A
|
16571A
90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2002 - 04.2003] 1NZFE..NZE121 ＮＯ．１; 1ZZFE..ZZE12# ＮＯ．２ |
90467-34004 |
from US $3.43 |
||
|
16571A
|
16571A
96136-43901 Clamp Or Clip, Hose(For Radiator Inlet)[05.2006 -] 1NZFE..NZE121 ＮＯ．１; 1ZZFE..ZZE12# ＮＯ．１ |
96136-43901 |
from US $4.30 |
||
|
16571A
|
16571A
96136-44301 Clamp Or Clip, Hose(For Radiator Inlet)[05.2006 -] 1NZFE..NZE121 ＮＯ．２; 1ZZFE..ZZE12# ＮＯ．２ |
96136-44301 |
from US $5.56 |
||
|
16572
|
16572
16572-21030 Hose, Radiator, Outlet[05.2001 - 04.2003] 1NZFE..NZE121 |
16572-21030 |
from US $18.93 |
||
|
16572A
|
16572A
90466-35001 Clamp Or Clip, Hose(For Radiator Inlet)[05.2001 - 04.2003] 1NZFE..NZE121 ＮＯ．２; 1ZZFE..ZZE12# ＮＯ．２ |
90466-35001 |
from US $5.38 |
||
|
16572A
|
16572A
90467-34003
Clip(For Oil Return Hose)
[05.2001 - 04.2002] 1NZFE..NZE121 ＮＯ．１ |
90467-34003 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)[05.2001 - 04.2002] 1NZFE..NZE121 ＮＯ．１ |
90467-34004 |
from US $3.43 |
||
|
16572A
|
16572A
90467-34004 Clamp Or Clip, Hose(For Water By-Pass Hose)[04.2002 - 04.2003] 1NZFE..NZE121 ＮＯ．１ |
90467-34004 |
from US $3.43 |
||
|
16572A
|
16572A
96136-43901 Clamp Or Clip, Hose(For Radiator Inlet)[05.2006 -] 1NZFE..NZE121 ＮＯ．１ |
96136-43901 |
from US $4.30 |
||
|
16572A
|
16572A
96136-44301 Clamp Or Clip, Hose(For Radiator Inlet)[05.2006 -] 1NZFE..NZE121 ＮＯ．２ |
96136-44301 |
from US $5.56 |
||
|
16701
|
16701
16711-21080 Shroud Sub-Assy, Fan[05.2001 - 04.2003] 1NZFE..NZE121; 1ZZFE..ZZE12# |
16711-21080 |
US $134.48 |
||
|
91621J0814
|
91621J0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.84 |
||
|
9009904119
|
9009904119
90099-04119 BOLT WASHER HEAD |
90099-04119 |
from US $0.55 |
||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
