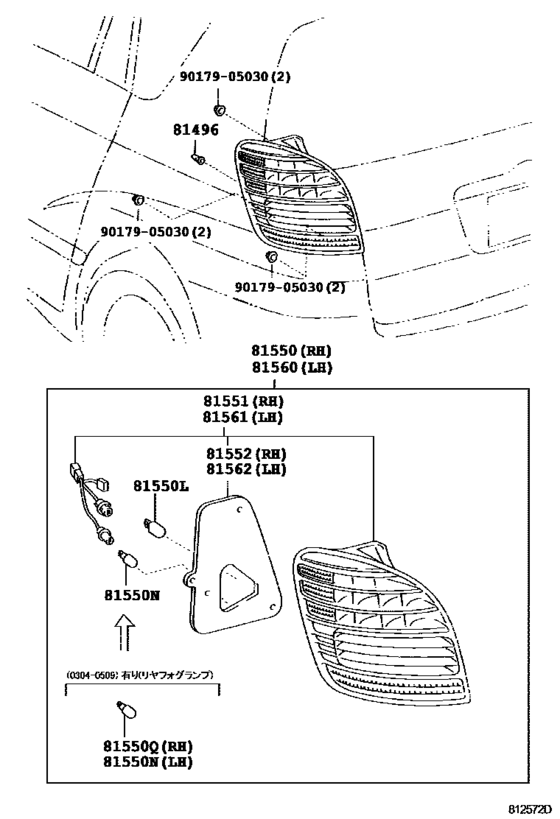

Rear Combination Lamp ([04.2003 - ] (0304- )) Diagram Toyota COROLLA SPACIO
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- NZE121
- grade
- X
- ENGINE
- 1NZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 07S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496
|
81496
81496-12020 Guide, Rear Combination Lamp[05.2001 - 04.2003] NZE121,ZZE12# |
81496-12020 |
US $6.27 |
||
|
81550
|
81550
81550-13510 Lamp Assy, Rear Combination, Rh[05.2001 - 04.2003] NZE121,ZZE12# |
81550-13510 |
US $331.97 |
||
|
81550
|
81550
81550-13520 Lamp Assy, Rear Combination, Rh[05.2001 - 04.2003] NZE121,ZZE12# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(RHﾗﾝﾌﾟ=ﾘﾔﾌｵｸﾞﾗﾝﾌﾟﾂｷ) |
81550-13520 |
US $331.97 |
||
|
81550
|
81550
81550-13620 Lamp Assy, Rear Combination, Rh[09.2005 - 06.2007] NZE121,ZZE12# |
81550-13620 |
US $382.93 |
||
|
81550
|
81550
81550-13630 Lamp Assy, Rear Combination, Rh[04.2003 - 09.2005] NZE121,ZZE12# |
81550-13630 |
US $382.93 |
||
|
81550
|
81550
81550-13640 Lamp Assy, Rear Combination, Rh[04.2003 - 09.2005] NZE121,ZZE12# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(RHﾗﾝﾌﾟ=ﾘﾔﾌｵｸﾞﾗﾝﾌﾟﾂｷ) |
81550-13640 |
US $382.93 |
||
|
81550L
|
81550L
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[04.2003 - 06.2007] NZE121,ZZE12# |
90981-11059 |
from US $3.24 |
||
|
81550L
|
81550L
90981-13043 Bulb (12V 21W)[06.2001 - 04.2003] NZE121,ZZE12# |
90981-13043 |
from US $3.24 |
||
|
81550N
|
81550N
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[04.2003 - 09.2005] NZE121,ZZE12# ｶﾝﾚｲﾁ ｼﾖｳ & LH ﾉﾐ |
90981-11059 |
from US $3.24 |
||
|
81550N
|
81550N
90981-13043 Bulb (12V 21W)[05.2001 - 04.2003] NZE121,ZZE12# |
90981-13043 |
from US $3.24 |
||
|
81550Q
|
81550Q
90981-11048
Bulb(For Rear Combination Lamp)
[05.2001 - 04.2003] NZE121,ZZE12# ｶﾝﾚｲﾁ ｼﾖｳ & RH ﾉﾐ |
90981-11048 |
— | ||
| replacement | |||||
|
81550Q
|
81550Q
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[05.2001 - 04.2003] NZE121,ZZE12# ｶﾝﾚｲﾁ ｼﾖｳ & RH ﾉﾐ |
90981-13044 |
from US $3.55 |
||
|
81550Q
|
81550Q
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[04.2003 - 09.2005] NZE121,ZZE12# ｶﾝﾚｲﾁ ｼﾖｳ & RH ﾉﾐ |
90981-11059 |
from US $3.24 |
||
|
81551
|
81551
81551-13510 Lens, Rear Combination Lamp, Rh[05.2001 - 04.2003] NZE121,ZZE12# |
81551-13510 |
from US $167.47 |
||
|
81551
|
81551
81551-13520 Lens, Rear Combination Lamp, Rh[05.2001 - 04.2003] NZE121,ZZE12# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(RHﾗﾝﾌﾟ=ﾘﾔﾌｵｸﾞﾗﾝﾌﾟﾂｷ) |
81551-13520 |
from US $205.34 |
||
|
81551
|
81551
81551-13620 Lens, Rear Combination Lamp, Rh[09.2005 -] NZE121,ZZE12# |
81551-13620 |
from US $336 |
||
|
81551
|
81551
81551-13630 Lens, Rear Combination Lamp, Rh[04.2003 - 09.2005] NZE121,ZZE12# |
81551-13630 |
from US $107.45 |
||
|
81551
|
81551
81551-13640 Lens, Rear Combination Lamp, Rh[04.2003 - 09.2005] NZE121,ZZE12# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(RHﾗﾝﾌﾟ=ﾘﾔﾌｵｸﾞﾗﾝﾌﾟﾂｷ) |
81551-13640 |
US $372.74 |
||
|
81552
|
81552
81554-13630 Gasket, Rear Combination Lamp Lens, Rh[04.2003 -] NZE121,ZZE12# |
81554-13630 |
US $13.83 |
||
|
81560
|
81560
81560-13510 Lamp Assy, Rear Combination, Lh[05.2001 - 04.2003] NZE121,ZZE12# |
81560-13510 |
US $331.97 |
||
|
81560
|
81560
81560-13520 Lamp Assy, Rear Combination, Lh[05.2001 - 04.2003] NZE121,ZZE12# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(RHﾗﾝﾌﾟ=ﾘﾔﾌｵｸﾞﾗﾝﾌﾟﾂｷ) |
81560-13520 |
US $321.78 |
||
|
81560
|
81560
81560-13590 Lamp Assy, Rear Combination, Lh[09.2005 - 06.2007] NZE121,ZZE12# |
81560-13590 |
US $382.93 |
||
|
81560
|
81560
81560-13600 Lamp Assy, Rear Combination, Lh[04.2003 - 09.2005] NZE121,ZZE12# |
81560-13600 |
US $382.93 |
||
|
81561
|
81561
81561-13510 Lens, Rear Combination Lamp, Lh[05.2001 - 04.2003] NZE121,ZZE12# |
81561-13510 |
from US $167.47 |
||
|
81561
|
81561
81561-13520 Lens, Rear Combination Lamp, Lh[05.2001 - 04.2003] NZE121,ZZE12# ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(RHﾗﾝﾌﾟ=ﾘﾔﾌｵｸﾞﾗﾝﾌﾟﾂｷ) |
81561-13520 |
from US $167.47 |
||
|
81561
|
81561
81561-13590 Lens, Rear Combination Lamp, Lh[09.2005 -] NZE121,ZZE12# |
81561-13590 |
from US $336 |
||
|
81561
|
81561
81561-13600 Lens, Rear Combination Lamp, Lh[04.2003 - 09.2005] NZE121,ZZE12# |
81561-13600 |
from US $238.93 |
||
|
81562
|
81562
81554-13630 Gasket, Rear Combination Lamp Lens, Rh[04.2003 -] NZE121,ZZE12# |
81554-13630 |
US $13.83 |
||
|
9017905030
|
9017905030
90179-05030 NUT |
90179-05030 |
US $2.15 |
||
