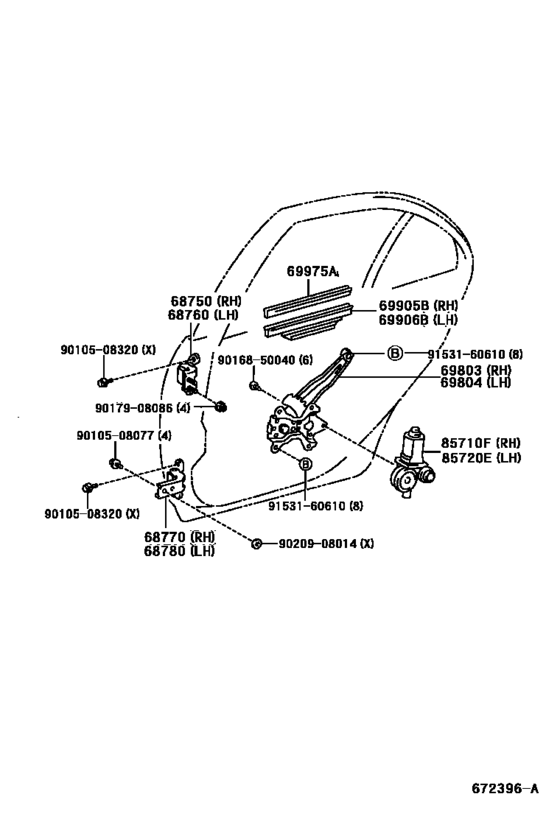

Rear Door Window Regulator & Hinge ([05.2001 - ] (0105- )) Diagram Toyota COROLLA SPACIO
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- NZE121
- grade
- X
- ENGINE
- 1NZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 07S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68750
|
68750
68750-52011 Hinge Assy, Rear Door, Upper Rh[05.2001 - 04.2003] NZE121,ZZE12# |
68750-52011 |
US $44.84 |
||
|
68760
|
68760
68760-52011 Hinge Assy, Rear Door, Upper Lh[05.2001 - 04.2003] NZE121,ZZE12# |
68760-52011 |
US $44.84 |
||
|
68770
|
68770
68770-52030 Hinge Assy, Rear Door, Lower Rh[05.2001 - 04.2003] NZE121,ZZE12# |
68770-52030 |
US $44.41 |
||
| replacement | |||||
|
68770
|
68770
68770-52031 Hinge Assy, Rear Door, Lower Rh[05.2001 - 04.2003] NZE121,ZZE12# |
68770-52031 |
from US $27.48 |
||
|
68770
|
68770
68770-52031 Hinge Assy, Rear Door, Lower Rh[10.2006 - 06.2007] NZE121,ZZE12# |
68770-52031 |
from US $27.48 |
||
|
68780
|
68780
68780-52030 Hinge Assy, Rear Door, Lower Lh[05.2001 - 04.2003] NZE121,ZZE12# |
68780-52030 |
US $40.19 |
||
| replacement | |||||
|
68780
|
68780
68780-52031 Hinge Assy, Rear Door, Lower Lh[05.2001 - 04.2003] NZE121,ZZE12# |
68780-52031 |
from US $29.52 |
||
|
68780
|
68780
68780-52031 Hinge Assy, Rear Door, Lower Lh[10.2006 - 06.2007] NZE121,ZZE12# |
68780-52031 |
from US $29.52 |
||
|
69803
|
69803
69803-13020 Regulator Sub-Assy, Rear Door Window, Rh[05.2001 - 04.2003] NZE121,ZZE12# |
69803-13020 |
US $42.37 |
||
|
69804
|
69804
69804-13020 Regulator Sub-Assy, Rear Door Window, Lh[05.2001 - 04.2003] NZE121,ZZE12# |
69804-13020 |
US $42.37 |
||
|
69905B
|
69905B
69905-52020 Bracket Sub-Assy, Rear Door Glass, Rh[05.2001 - 04.2003] NZE121,ZZE12# |
69905-52020 |
US $7.17 |
||
|
69906B
|
69906B
69906-52010 Channel Sub-Assy, Rear Door Glass, Rh[05.2001 - 04.2003] NZE121,ZZE12# |
69906-52010 |
US $7.17 |
||
|
69975A
|
69975A
69975-52010 Filler, Rear Door Glass Channel[05.2001 - 04.2003] NZE121,ZZE12# |
69975-52010 |
from US $5.73 |
||
|
85710F
|
85710F
85720-12250 Motor Assy, Power Window Regulator, Rh[05.2001 - 04.2003] NZE121,ZZE12# |
85720-12250 |
US $283.92 |
||
|
85710F
|
85710F
85720-20400 Motor Assy, Power Window Regulator, Lh[04.2003 -] NZE121,ZZE12# |
85720-20400 |
US $448.45 |
||
|
85720E
|
85720E
85710-12250 Motor Assy, Power Window Regulator, Lh[05.2001 - 04.2003] NZE121,ZZE12# |
85710-12250 |
US $283.92 |
||
|
85720E
|
85720E
85710-20380 Motor Assy, Power Window Regulator, Rh[04.2003 -] NZE121,ZZE12# |
85710-20380 |
US $448.45 |
||
|
9010508077
|
9010508077
90105-08077 BOLT |
90105-08077 |
US $1.97 |
||
|
9010508320
|
9010508320
90105-08320 BOLT WASHER BASED |
90105-08320 |
US $1.61 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.82 |
||
|
9017908086
|
9017908086
90179-08086 New Genuine Part |
90179-08086 |
US $3.58 |
||
|
9020908014
|
9020908014
90209-08014 WASHER |
90209-08014 |
US $2.15 |
||
|
9153160610
|
9153160610
91531-60610 New Genuine Part |
91531-60610 |
US $1.97 |
||
