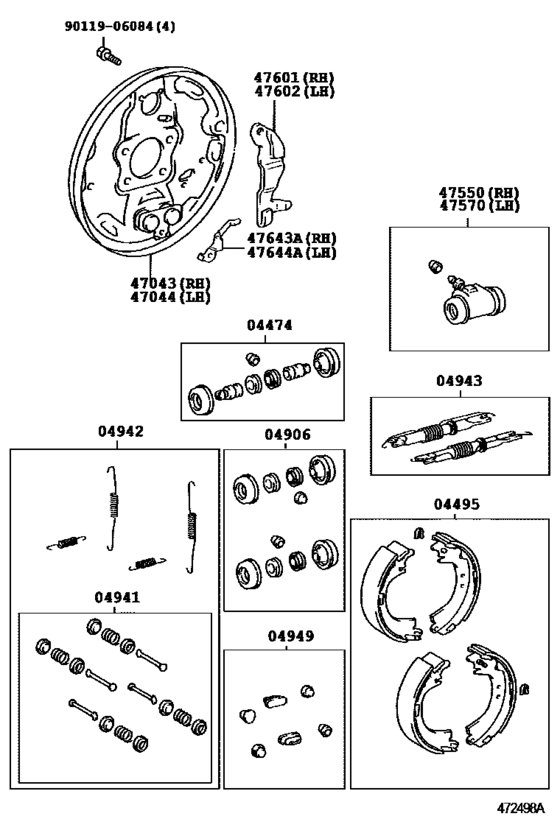

Rear Drum Brake Wheel Cylinder & Backing Plate ([05.2001 - ] (0105- )ZZE12# ; (0105- )NZE121..07S) Diagram Toyota COROLLA SPACIO
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- NZE121
- grade
- X
- ENGINE
- 1NZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 07S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04474
|
04474
04474-42020 Cylinder Kit, Rear Wheel[04.2003 -] NZE121,ZZE12# |
04474-42020 |
US $45.86 |
||
|
04495
|
04495
04495-52030 Shoe Kit, Rear Brake[05.2001 - 04.2003] ZZE122;NZE121..07S マーク ＮＢＫ ＬＮ５２１ |
04495-52030 |
from US $67.87 |
||
|
04906
|
04906
04906-20030 Cup Kit, Rear Wheel Cylinder[03.2004 -] NZE121,ZZE12# |
04906-20030 |
US $18.82 |
||
|
04906
|
04906
04906-42020 Cup Kit, Rear Wheel Cylinder[05.2001 - 04.2003] ZZE12#;NZE121..07S |
04906-42020 |
US $13.98 |
||
| replacement | |||||
|
04906
|
04906
04906-20030 Cup Kit, Rear Wheel Cylinder[05.2001 - 04.2003] ZZE12#;NZE121..07S |
04906-20030 |
US $18.82 |
||
|
04941
|
04941
04941-28010 Spring Kit, Rear Brake Shoe Hold Down[05.2001 - 04.2003] ZZE12#;NZE121..07S |
04941-28010 |
US $31.25 |
||
|
04942
|
04942
04942-13020 Spring Kit, Rear Brake[05.2001 - 04.2003] ZZE12#;NZE121..07S |
04942-13020 |
US $48.05 |
||
|
04942
|
04942
04942-13030 Spring Kit, Rear Brake[03.2004 -] NZE121,ZZE12# |
04942-13030 |
US $34.78 |
||
|
04943
|
04943
04943-13010 Strut Kit, Rear Brake, Rh[05.2001 - 04.2003] ZZE12#;NZE121..07S |
04943-13010 |
US $45.86 |
||
|
04949
|
04949
04949-13010 Plug Kit, Rear Brake[05.2001 - 04.2003] ZZE12#;NZE121..07S |
04949-13010 |
from US $11.80 |
||
|
47043
|
47043
47043-63010 Plate Sub-Assy, Brake Backing, Rear Rh[05.2001 - 04.2003] ZZE12#;NZE121..07S |
47043-63010 |
US $42.52 |
||
|
47044
|
47044
47044-63010 Plate Sub-Assy, Brake Backing, Rear Lh[05.2001 - 04.2003] ZZE12#;NZE121..07S |
47044-63010 |
US $42.52 |
||
|
47550
|
47550
47550-42020 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[05.2001 - 04.2003] ZZE12#;NZE121..07S |
47550-42020 |
US $83.33 |
||
|
47570
|
47570
47550-42020 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[05.2001 - 04.2003] ZZE12#;NZE121..07S |
47550-42020 |
US $83.33 |
||
|
47601
|
47601
47611-68030 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)[04.2003 -] NZE121,ZZE12# |
47611-68030 |
US $8.74 |
||
|
47601
|
47601
47612-33010 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)[05.2001 - 04.2003] ZZE12#;NZE121..07S |
47612-33010 |
US $9.61 |
||
|
47602
|
47602
47611-33010 Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)[05.2001 - 04.2003] ZZE12#;NZE121..07S |
47611-33010 |
US $13.63 |
||
|
47602
|
47602
47612-68030 Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)[04.2003 -] NZE121,ZZE12# |
47612-68030 |
US $8.74 |
||
|
47643A
|
47643A
47643-42010 Lever, Rear Brake Automatic Adjust, Rh[05.2001 - 04.2003] ZZE12#;NZE121..07S |
47643-42010 |
US $3.58 |
||
|
47644A
|
47644A
47644-42010 Lever, Rear Brake Automatic Adjust, Lh[05.2001 - 04.2003] ZZE12#;NZE121..07S |
47644-42010 |
US $3.94 |
||
|
9011906084
|
9011906084
90119-06084 Bolt(For Rear Wheel Cylinder) |
90119-06084 |
from US $0.99 |
||
