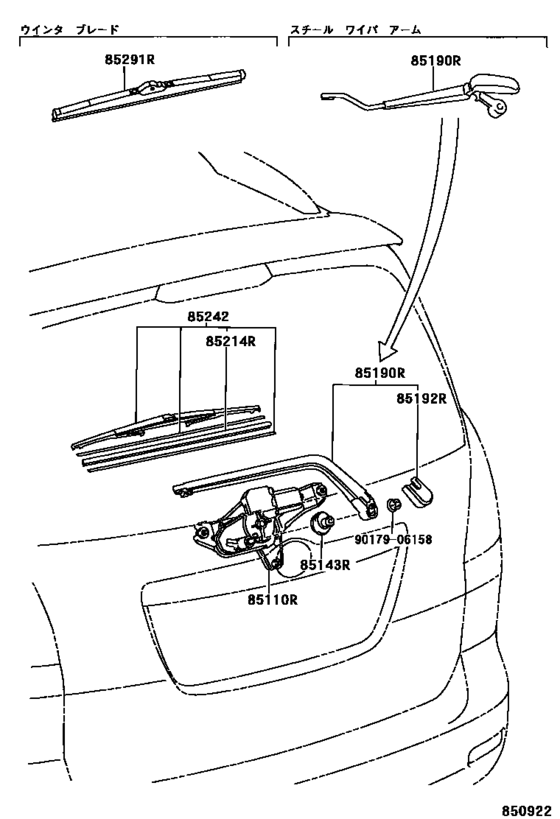

Rear Wiper ([05.2001 - ] (0105- )) Diagram Toyota COROLLA SPACIO
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- NZE121
- grade
- X
- ENGINE
- 1NZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 07S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110R
|
85110R
85130-13120 Motor Assy, Rear Wiper[05.2001 - 04.2003] NZE121,ZZE12# |
85130-13120 |
US $449.90 |
||
|
85143R
|
85143R
85143-13070
Grommet, Rear Wiper Motor
[05.2001 - 04.2003] NZE121,ZZE12# |
85143-13070 |
— | ||
|
85190R
|
85190R
85241-28070 Arm Assy, Rear Wiper[05.2001 - 04.2003] NZE121,ZZE12# |
85241-28070 |
from US $34.98 |
||
|
85190R
|
85190R
85241-44020 Arm Assy, Rear Wiper[05.2001 - 04.2003] NZE121,ZZE12# ｽﾁ-ﾙ ﾜｲﾊﾟ ｱ-ﾑ |
85241-44020 |
from US $22.19 |
||
|
85192R
|
85192R
85292-28030 Cover, Rear Wiper Arm[05.2001 - 04.2003] NZE121,ZZE12# |
85292-28030 |
from US $3.28 |
||
|
85214R
|
85214R
85214-30280 Rubber, Rear Wiper[05.2001 - 04.2003] NZE121,ZZE12# |
85214-30280 |
from US $7.22 |
||
|
85242
|
85242
85242-13060 Blade, Rr Wiper[05.2001 - 04.2003] NZE121,ZZE12# |
85242-13060 |
from US $20.30 |
||
|
85242
|
85242
85242-52030 Blade, Rr Wiper[05.2001 - 04.2003] NZE121,ZZE12# ｱﾘ(ｽﾁ-ﾙ ﾜｲﾊﾟ ｱ-ﾑ) |
85242-52030 |
US $21.55 |
||
| replacement | |||||
|
85242
|
85242
85242-30040 Blade Assy, Rear Wiper[05.2001 - 04.2003] NZE121,ZZE12# ｱﾘ(ｽﾁ-ﾙ ﾜｲﾊﾟ ｱ-ﾑ) |
85242-30040 |
from US $16.13 |
||
|
85291R
|
85291R
85291-28120 Blade Assy, Rear Wiper[04.2003 -] NZE121,ZZE12# ｱﾘ(ｽﾁ-ﾙ ﾜｲﾊﾟ ｱ-ﾑ) |
85291-28120 |
US $50.40 |
||
|
85291R
|
85291R
85291-53040 Blade,rear Wiper, Winter[04.2003 -] NZE121,ZZE12# |
85291-53040 |
US $50.40 |
||
|
85291R
|
85291R
85291-60030 Blade Assy, Windshield Wiper[05.2001 - 04.2003] NZE121,ZZE12# ｱﾘ(ｽﾁ-ﾙ ﾜｲﾊﾟ ｱ-ﾑ) |
85291-60030 |
US $55.33 |
||
| replacement | |||||
|
85291R
|
85291R
85291-28120 Blade Assy, Rear Wiper[05.2001 - 04.2003] NZE121,ZZE12# ｱﾘ(ｽﾁ-ﾙ ﾜｲﾊﾟ ｱ-ﾑ) |
85291-28120 |
US $50.40 |
||
|
85291R
|
85291R
85291-63010 Blade,rear Wiper, Winter[05.2001 - 04.2003] NZE121,ZZE12# |
85291-63010 |
US $55.33 |
||
| replacement | |||||
|
85291R
|
85291R
85291-53040 Blade,rear Wiper, Winter[05.2001 - 04.2003] NZE121,ZZE12# |
85291-53040 |
US $50.40 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
