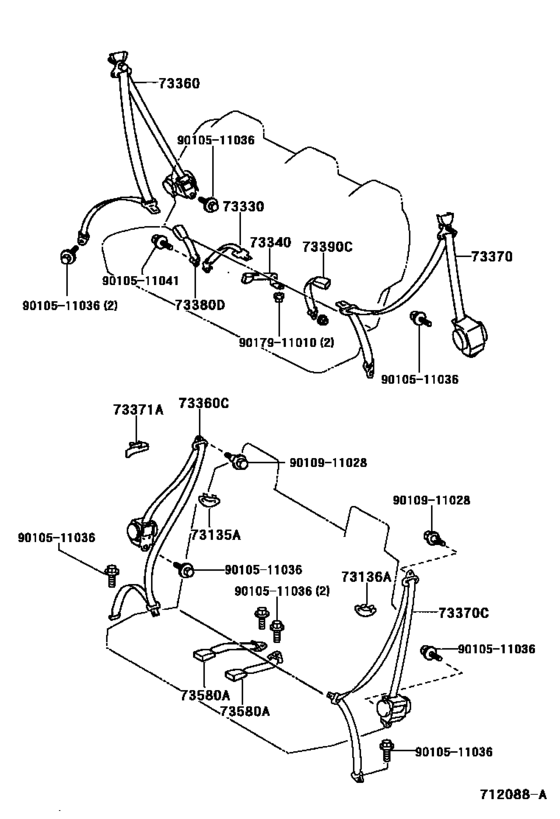

Seat Belt & Child Restraint Seat ([05.2001 - ] ﾘﾔ ｼ-ﾄ (0105- )) Diagram Toyota COROLLA SPACIO
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- NZE121
- grade
- X
- ENGINE
- 1NZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 07S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73135A
|
73135A
73135-13030-A0 Cover, Shoulder Belt Anchor, Rh[05.2001 - 04.2003] NZE121,ZZE12#..07S..(V,X) IVORY,TRIM0# |
73135-13030-A0 |
US $11.21 |
||
|
73135A
|
73135A
73135-13030-B0 Cover, Shoulder Belt Anchor, Rh[11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L),LT.GRAY,TRIM10 |
73135-13030-B0 |
US $11.21 |
||
|
73136A
|
73136A
73136-13030-A0 Cover, Shoulder Belt Anchor, Lh[05.2001 - 04.2003] NZE121,ZZE12#..07S..(V,X) IVORY,TRIM0# |
73136-13030-A0 |
US $11.21 |
||
|
73136A
|
73136A
73136-13030-B0 Cover, Shoulder Belt Anchor, Lh[11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L),LT.GRAY,TRIM10 |
73136-13030-B0 |
US $11.21 |
||
|
73330
|
73330
73330-13130-A0 Belt Assy, Rear Seat Lap Type, Rh[05.2001 - 04.2003] NZE121,ZZE12#..V,X IVORY,TRIM0# |
73330-13130-A0 |
US $93.18 |
||
|
73330
|
73330
73330-13130-C0 Belt Assy, Rear Seat Lap Type, Rh[11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L),BLACK,TRIM10 |
73330-13130-C0 |
US $93.18 |
||
|
73340
|
73340
73460-13010-A1 Belt Assy, Rear Seat Lap Type, Lh[05.2001 - 04.2003] NZE121,ZZE12#..V,X IVORY,TRIM0# |
73460-13010-A1 |
US $51.40 |
||
|
73340
|
73340
73460-13010-B1 Belt Assy, Rear Seat Lap Type, Lh[11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L),DK.GRAY,TRIM10 |
73460-13010-B1 |
US $51.40 |
||
|
73360
|
73360
73360-13320-A0 Belt Assy, Rear Seat 3 Point Type, Outer Rh[05.2001 - 04.2003] NZE121,ZZE12#..V,X IVORY,TRIM0# |
73360-13320-A0 |
US $331.97 |
||
|
73360
|
73360
73360-13320-C0 Belt Assy, Rear Seat 3 Point Type, Outer Rh[11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L),BLACK,TRIM10 |
73360-13320-C0 |
US $331.97 |
||
|
73360C
|
73360C
73360-13330-A0 Belt Assy, Rear No.1 Seat, Outer Rh[05.2001 - 04.2003] NZE121,ZZE12#..07S..(V,X) IVORY,TRIM0# |
73360-13330-A0 |
US $321.78 |
||
|
73360C
|
73360C
73360-13330-C0 Belt Assy, Rear No.1 Seat, Outer Rh[11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L),BLACK,TRIM10 |
73360-13330-C0 |
US $321.78 |
||
|
73370
|
73370
73370-13260-A0 Belt Assy, Rear Seat 3 Point Type, Outer Lh[05.2001 - 04.2003] NZE121,ZZE12#..V,X IVORY,TRIM0# |
73370-13260-A0 |
US $331.97 |
||
|
73370
|
73370
73370-13260-C0 Belt Assy, Rear Seat 3 Point Type, Outer Lh[11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L),BLACK,TRIM10 |
73370-13260-C0 |
US $331.97 |
||
|
73370C
|
73370C
73360-13330-A0 Belt Assy, Rear No.1 Seat, Outer Rh[05.2001 - 04.2003] NZE121,ZZE12#..07S..(V,X) IVORY,TRIM0# |
73360-13330-A0 |
US $321.78 |
||
|
73370C
|
73370C
73360-13330-C0 Belt Assy, Rear No.1 Seat, Outer Rh[11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L),BLACK,TRIM10 |
73360-13330-C0 |
US $321.78 |
||
|
73371A
|
73371A
73371-16050-A0 Hanger, Rear Seat Shoulder Belt, Rh[05.2001 - 04.2003] NZE121,ZZE12#..07S..(V,X) IVORY,TRIM0# |
73371-16050-A0 |
US $4.37 |
||
|
73371A
|
73371A
73371-16050-P4 Hanger, Rear Seat Shoulder Belt, Rh[11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L),LT.GRAY,TRIM10 |
73371-16050-P4 |
US $4.22 |
||
| replacement | |||||
|
73371A
|
73371A
73371-16050-P8 Hanger, Rear Seat Shoulder Belt, Rh[11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L),LT.GRAY,TRIM10 |
73371-16050-P8 |
US $4.22 |
||
|
73380D
|
73380D
73380-13120-A0 Belt Assy, Rear Seat, Inner[05.2001 - 04.2003] NZE121,ZZE12#..V,X IVORY,TRIM0# |
73380-13120-A0 |
US $51.40 |
||
|
73380D
|
73380D
73380-13120-C0 Belt Assy, Rear Seat, Inner[11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L),BLACK,TRIM10 |
73380-13120-C0 |
US $51.40 |
||
|
73390C
|
73390C
73380-13120-A0 Belt Assy, Rear Seat, Inner[05.2001 - 04.2003] NZE121,ZZE12#..V,X IVORY,TRIM0# |
73380-13120-A0 |
US $51.40 |
||
|
73390C
|
73390C
73380-13120-C0 Belt Assy, Rear Seat, Inner[04.2003 - 06.2007] NZE121,ZZE12# BLACK,TRIM1# |
73380-13120-C0 |
US $51.40 |
||
|
73580A
|
73580A
73580-13030-A0 Belt Sub Assy, Rear No.2 Seat, Inner[05.2001 - 04.2003] NZE121,ZZE12#..07S..(V,X) IVORY,TRIM0# |
73580-13030-A0 |
US $51.40 |
||
|
73580A
|
73580A
73580-13030-B0 Belt Sub Assy, Rear No.2 Seat, Inner[11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L),DK.GRAY,TRIM10 |
73580-13030-B0 |
US $42.66 |
||
|
9010511036
|
9010511036
90105-11036 New Genuine Part |
90105-11036 |
US $1.97 |
||
|
9010511041
|
9010511041
90105-11041 New Genuine Part |
90105-11041 |
US $1.79 |
||
|
9010911028
|
9010911028
90109-11028 New Genuine Part |
90109-11028 |
US $10.77 |
||
|
9017911010
|
9017911010
90179-11010 NUT |
90179-11010 |
US $1.97 |
||
