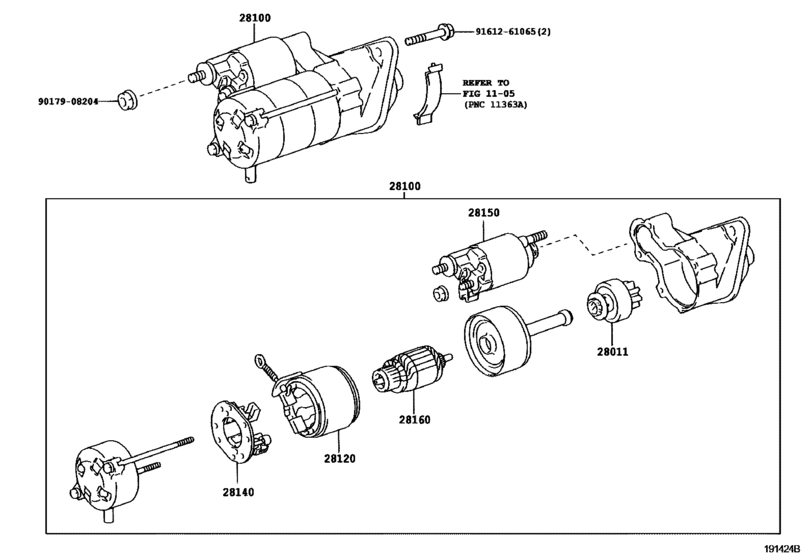

Starter ([05.2001 - ] 12V 1.0KW (0105- )1NZFE) Diagram Toyota COROLLA SPACIO
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- NZE121
- grade
- X
- ENGINE
- 1NZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 07S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-21050 Clutch Sub-Assy, Starter[05.2001 - 08.2002] 1NZFE..NZE121 12V 0.8KW |
28011-21050 |
US $50.14 |
||
|
28011
|
28011
28011-70020 Clutch Sub-Assy, Starter[05.2001 - 04.2003] 1ZZFE..ZZE12#; 1NZFE..NZE121 12V 0.8KW,1.0KW |
28011-70020 |
from US $43.51 |
||
|
28100
|
28100
28100-21020
Starter Assy
[08.2002 - 04.2003] 1NZFE..NZE121 １２Ｖ ０．８ＫＷ |
28100-21020 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-21022 Starter Assy[08.2002 - 04.2003] 1NZFE..NZE121 １２Ｖ ０．８ＫＷ |
28100-21022 |
from US $351.94 |
||
|
28100
|
28100
28100-21030 Starter Assy[05.2001 - 04.2003] 1NZFE..NZE121 １２Ｖ １．０ＫＷ |
28100-21030 |
US $908.54 |
||
| replacement | |||||
|
28100
|
28100
28100-21032 Starter Assy[05.2001 - 04.2003] 1NZFE..NZE121 １２Ｖ １．０ＫＷ |
28100-21032 |
US $687.23 |
||
|
28100
|
28100
28100-21050 Starter Assy[05.2001 - 08.2002] 1NZFE..NZE121 １２Ｖ ０．８ＫＷ |
28100-21050 |
US $899.81 |
||
| replacement | |||||
|
28100
|
28100
28100-21022 Starter Assy[05.2001 - 08.2002] 1NZFE..NZE121 １２Ｖ ０．８ＫＷ |
28100-21022 |
from US $351.94 |
||
|
28120
|
28120
28120-23020
Yoke Assy, Starter
[05.2001 - 08.2002] 1NZFE..NZE121 12V 0.8KW |
28120-23020 |
— | ||
|
28120
|
28120
28120-70020 Yoke Assy, Starter[08.2002 - 04.2003] 1NZFE,1ZZFE..NZE121,ZZE12# 12V 0.8KW |
28120-70020 |
from US $98.61 |
||
|
28120
|
28120
28120-70050
Yoke Assy, Starter
[05.2001 - 04.2003] 1NZFE,1ZZFE..NZE121,ZZE12# 12V 1.0KW |
28120-70050 |
— | ||
|
28140
|
28140
28140-70020 Holder Assy, Starter Brush[05.2001 - 04.2003] 1NZFE,1ZZFE..NZE121,ZZE12# |
28140-70020 |
from US $22.19 |
||
|
28150
|
28150
28150-16160 Switch Assy, Magnet Starter[05.2001 - 04.2003] 1NZFE..NZE121 |
28150-16160 |
from US $81.82 |
||
|
28160
|
28160
28160-21050 Armature Assy, Starter[05.2001 - 08.2002] 1NZFE..NZE121 12V 0.8KW |
28160-21050 |
US $129.58 |
||
|
28160
|
28160
28160-70021 Armature Assy, Starter[08.2002 - 04.2003] 1NZFE,1ZZFE..NZE121,ZZE12# 12V 0.8KW |
28160-70021 |
US $131.04 |
||
|
28160
|
28160
28160-70050 Armature Assy, Starter[05.2001 - 04.2003] 1NZFE,1ZZFE..NZE121,ZZE12# 12V 1.0KW |
28160-70050 |
US $161.62 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.90 |
||
|
9161261065
|
9161261065
91612-61065 Bolt(For Transaxle & Engine Setting) |
91612-61065 |
US $2.87 |
||
