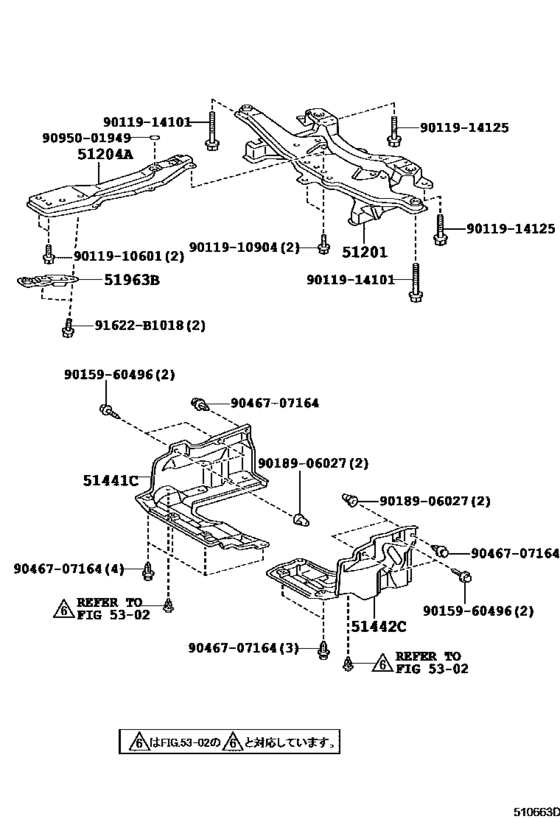

Suspension Crossmember & Under Cover ([05.2001 - 04.2003] (0105-0304)NZE121,ZZE122) Diagram Toyota COROLLA SPACIO
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- NZE121
- grade
- X
- ENGINE
- 1NZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 07S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51201
|
51201
51201-12430 Crossmember Sub-Assy, Front Suspension[11.2001 - 04.2003] NZE121,ZZE122 |
51201-12430 |
US $895.44 |
||
| replacement | |||||
|
51201
|
51201
51201-12431 Crossmember Sub-Assy, Front Suspension[11.2001 - 04.2003] NZE121,ZZE122 |
51201-12431 |
US $564.93 |
||
|
51201
|
51201
51201-12431 Crossmember Sub-Assy, Front Suspension[04.2003 -] NZE121,ZZE122 |
51201-12431 |
US $564.93 |
||
|
51201
|
51201
51201-20350 Crossmember Sub-Assy, Front Suspension[05.2001 - 11.2001] NZE121,ZZE122 |
51201-20350 |
US $895.44 |
||
| replacement | |||||
|
51201
|
51201
51201-20352 Crossmember Sub-Assy, Front Suspension[05.2001 - 11.2001] NZE121,ZZE122 |
51201-20352 |
US $621.71 |
||
|
51204A
|
51204A
51204-12130 Member Sub-Assy, Engine Mounting, Center[05.2001 - 04.2003] NZE121,ZZE122 |
51204-12130 |
from US $112.11 |
||
|
51441C
|
51441C
51441-12190 Cover, Engine Under, Rh[05.2001 - 04.2003] NZE121,ZZE12# |
51441-12190 |
from US $48.32 |
||
|
51442C
|
51442C
51442-12190 Cover, Engine Under, Lh[05.2001 - 04.2003] NZE121,ZZE12# |
51442-12190 |
from US $38.04 |
||
|
51963B
|
51963B
51963-12240 Hook, Transport, Front Rh[05.2001 - 04.2003] NZE121,ZZE12# |
51963-12240 |
US $13.83 |
||
|
91622B1018
|
91622B1018
91622-B1018 BOLT WWASHER |
91622-B1018 |
from US $0.88 |
||
|
9011910601
|
9011910601
90119-10601 BOLT WWASHER |
90119-10601 |
US $1.61 |
||
|
9011910904
|
9011910904
90119-10904 BOLT WWASHER |
90119-10904 |
US $3.94 |
||
|
9011914101
|
9011914101
90119-14101 BOLT WWASHER |
90119-14101 |
from US $3.90 |
||
|
9011914125
|
9011914125
90119-14125 BOLT WWASHER |
90119-14125 |
from US $5.56 |
||
|
9015960496
|
9015960496
90159-60496 SCREW WWASHER |
90159-60496 |
from US $0.62 |
||
|
9018906027
|
9018906027
90189-06027 Grommet |
90189-06027 |
from US $0.74 |
||
|
9046707164
|
9046707164
90467-07164 Clip(For Front Fender Apron Seal) |
90467-07164 |
from US $1.21 |
||
|
9095001949
|
9095001949
90950-01949 PLUG HOLE |
90950-01949 |
US $1.79 |
||
