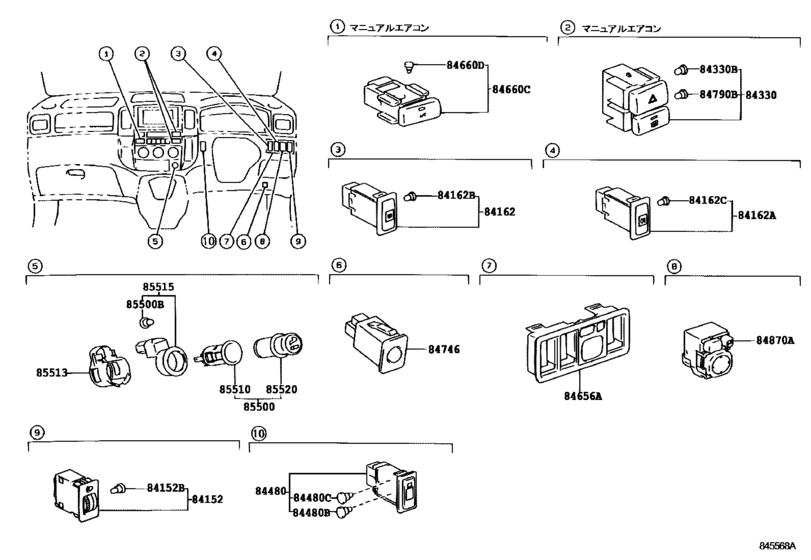

Switch & Relay & Computer ([04.2003 - ] ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ (0304- )) Diagram Toyota COROLLA SPACIO
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- NZE121
- grade
- X
- ENGINE
- 1NZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 07S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84152
|
84152
84152-12050 Switch, Headlamp Leveling[05.2001 - 09.2002] NZE121,ZZE12#..SAER,X |
84152-12050 |
US $77.17 |
||
|
84152
|
84152
84152-12051 Switch, Headlamp Leveling[09.2002 - 04.2003] NZE121,ZZE12#..SAER,X |
84152-12051 |
US $77.17 |
||
|
84152B
|
84152B
90010-08103 Bulb (For Headlamp Leveling Switch)[05.2001 - 04.2003] NZE121,ZZE12#..SAER,X １４Ｖ ０．５６Ｗ |
90010-08103 |
US $5.53 |
||
|
84162
|
84162
84160-13010 Switch, Front Fog Lamp[04.2003 - 06.2007] NZE121,ZZE12#..X |
84160-13010 |
US $57.51 |
||
|
84162A
|
84162A
84165-13010 Switch, Rear Fog Lamp[05.2001 - 04.2003] NZE121,ZZE12# |
84165-13010 |
US $49.65 |
||
|
84162B
|
84162B
84999-10320 Bulb, Satellite Switch[04.2003 -] NZE121,ZZE12#..X １４Ｖ ０．８４Ｗ |
84999-10320 |
from US $4.30 |
||
|
84162C
|
84162C
90010-09014 Bulb (For Rear Fog Lamp Switch)[05.2001 - 04.2003] NZE121,ZZE12# １４Ｖ ４０ＭＡ，グリーン キャップ付き |
90010-09014 |
US $6.99 |
||
|
84330
|
84330
84332-12480 Switch Assy, Hazard Warning Signal[05.2001 - 04.2003] NZE121,ZZE12#..V,X |
84332-12480 |
US $77.17 |
||
| replacement | |||||
|
84330
|
84330
84332-12440 Switch Assy, Hazard Warning Signal[05.2001 - 04.2003] NZE121,ZZE12#..V,X |
84332-12440 |
US $82.12 |
||
|
84330
|
84330
84332-12490 Switch Assy, Hazard Warning Signal[11.2003 -] NZE121,ZZE124..X ｶﾝﾚｲﾁ ｼﾖｳ |
84332-12490 |
US $155.79 |
||
| replacement | |||||
|
84330
|
84330
84332-12460
Switch Assy, Hazard Warning Signal
[11.2003 -] NZE121,ZZE124..X ｶﾝﾚｲﾁ ｼﾖｳ |
84332-12460 |
— | ||
|
84330B
|
84330B
84999-10310 Bulb, Air Conditioner Control[05.2001 - 04.2003] NZE121,ZZE12#..V,X １４Ｖ ０．９１Ｗ |
84999-10310 |
from US $2.93 |
||
|
84480
|
84480
84480-13010 Switch Assy, Main[05.2001 - 04.2003] NZE121,ZZE12# |
84480-13010 |
US $64.65 |
||
|
84480
|
84480
84480-13020 Switch Assy, Main[04.2003 -] NZE121,ZZE12# |
84480-13020 |
US $64.65 |
||
| replacement | |||||
|
84480
|
84480
84480-12010 Switch Assy, Main[04.2003 -] NZE121,ZZE12# |
84480-12010 |
US $64.65 |
||
|
84480B
|
84480B
84999-10310 Bulb, Air Conditioner Control[05.2001 - 04.2003] NZE121,ZZE12# １４Ｖ ０．９１Ｗ,ライティング |
84999-10310 |
from US $2.93 |
||
|
84480B
|
84480B
84999-10320 Bulb, Satellite Switch[04.2003 -] NZE121,ZZE12# １４Ｖ ０．８４Ｗ |
84999-10320 |
from US $4.30 |
||
|
84480B
|
84480B
90010-01039 Blub, Center Cluster Module Switch[05.2001 - 04.2003] NZE121,ZZE12# １４Ｖ０．９１Ｗ，グリーン キャップ付き,ＯＮ インジケータ |
90010-01039 |
from US $3.26 |
||
|
84480C
|
84480C
90010-01043 Bulb, Dpr Swich Assy[04.2003 - 06.2004] NZE121,ZZE12# |
90010-01043 |
US $4.05 |
||
|
84480C
|
84480C
90010-01108 Bulb, Idle Stop Switch Assy[06.2004 -] NZE121,ZZE12# |
90010-01108 |
US $5.82 |
||
| replacement | |||||
|
84480C
|
84480C
90010-01012 Bulb,room Lamp Switch[06.2004 -] NZE121,ZZE12# |
90010-01012 |
US $4.37 |
||
|
84656A
|
84656A
84656-12090-A0 Bezel, Switch[05.2001 - 04.2003] NZE121,ZZE12#..V,X IVORY,TRIM0# |
84656-12090-A0 |
US $15.43 |
||
| replacement | |||||
|
84656A
|
84656A
84656-12090-C0 Cover, Bezel Switch Hole[05.2001 - 04.2003] NZE121,ZZE12#..V,X IVORY,TRIM0# |
84656-12090-C0 |
US $15.72 |
||
|
84656A
|
84656A
84656-12090-B0
Bezel, Switch
[11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L),DK.GRAY,TRIM10 |
84656-12090-B0 |
— | ||
| replacement | |||||
|
84656A
|
84656A
84656-12090-C0 Cover, Bezel Switch Hole[11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L),DK.GRAY,TRIM10 |
84656-12090-C0 |
US $15.72 |
||
|
84656A
|
84656A
84656-12100-A0 Bezel, Switch[05.2001 - 04.2003] NZE121,ZZE12#..X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ｼｷ ﾄﾞｱ ﾐﾗ-),IVORY,TRIM0# |
84656-12100-A0 |
US $15.58 |
||
| replacement | |||||
|
84656A
|
84656A
84656-12100-C0 Cover, Bezel Switch Hole[05.2001 - 04.2003] NZE121,ZZE12#..X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ｼｷ ﾄﾞｱ ﾐﾗ-),IVORY,TRIM0# |
84656-12100-C0 |
US $19.66 |
||
|
84656A
|
84656A
84656-12100-B0
Bezel, Switch
[11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L), ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ ﾄﾞｱ ﾐﾗ-),DK.GRAY,TRIM10 |
84656-12100-B0 |
— | ||
| replacement | |||||
|
84656A
|
84656A
84656-12100-C0 Cover, Bezel Switch Hole[11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L), ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳｼｷ ﾄﾞｱ ﾐﾗ-),DK.GRAY,TRIM10 |
84656-12100-C0 |
US $19.66 |
||
|
84660C
|
84660C
84660-12210 Switch, Cooler[05.2001 - 04.2003] NZE121,ZZE12#..V,X |
84660-12210 |
US $77.17 |
||
|
84660D
|
84660D
90010-03059
Bulb(For Cooler Switch)
[05.2001 - 04.2003] NZE121,ZZE12#..V,X １４Ｖ １．１２Ｗ |
90010-03059 |
— | ||
|
84746
|
84746
84746-12010 Switch, Tire Pressure Warning[05.2001 - 04.2003] NZE121,ZZE12# |
84746-12010 |
US $49.65 |
||
| replacement | |||||
|
84746
|
84746
84746-50030 Switch, Tire Pressure Warning[05.2001 - 04.2003] NZE121,ZZE12# |
84746-50030 |
US $49.65 |
||
|
84790B
|
84790B
90010-01079 Bulb(For Rear Window Defogger Switch)[05.2001 - 04.2003] NZE121,ZZE12#..V,X １４Ｖ ０．０６Ｗ |
90010-01079 |
US $6.99 |
||
|
84870A
|
84870A
84872-52030 Switch Assy, Outer Mirror[05.2001 - 04.2003] NZE121,ZZE12#..V,X |
84872-52030 |
US $53.29 |
||
|
84870A
|
84870A
84872-52040 Switch Assy, Outer Mirror[05.2001 - 04.2003] NZE121,ZZE12#..SAER,X ｱﾘ(ﾃﾞﾝﾄﾞｳ ｶｸﾉｳ ｼｷ ﾄﾞｱ ﾐﾗ-) |
84872-52040 |
US $113.16 |
||
|
85500
|
85500
85500-12240 Lighter Assy, Cigarette[05.2001 - 04.2003] NZE121,ZZE12# |
85500-12240 |
from US $27.42 |
||
|
85500B
|
85500B
90010-01015 Bulb, Cigarette Lighter[05.2001 - 04.2003] NZE121,ZZE12# １４Ｖ １．４Ｗ，キャップ付き |
90010-01015 |
from US $2.40 |
||
|
85510
|
85510
85510-16040 Socket & Retainer Assy, Cigarlighter[05.2001 - 04.2003] NZE121,ZZE12# |
85510-16040 |
US $27.05 |
||
|
85513
|
85513
85513-12020 Cover, Cigarette Lighter[05.2001 - 04.2003] NZE121,ZZE12# |
85513-12020 |
from US $4.97 |
||
|
85515
|
85515
85515-47010 Stay, Cigarette Lighter Bezel[05.2001 - 04.2003] NZE121,ZZE12# |
85515-47010 |
US $18.48 |
||
|
85520
|
85520
85520-28010 Knob And Element Assy, Cigarette Lighter[05.2001 - 04.2003] NZE121,ZZE12# |
85520-28010 |
from US $16.77 |
||
