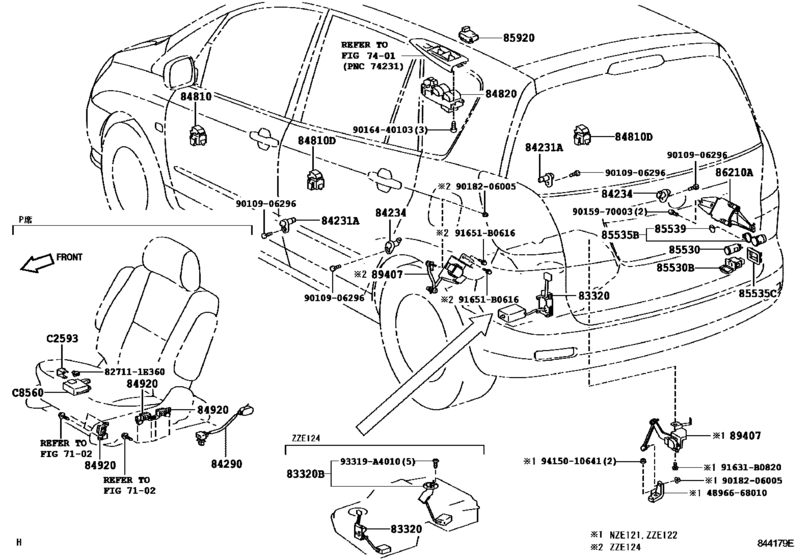

Switch & Relay & Computer ([05.2001 - ] ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ,ｼｰﾄ & ﾗｯｹﾞｰｼﾞ (0105- )) Diagram Toyota COROLLA SPACIO
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- NZE121
- grade
- X
- ENGINE
- 1NZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 07S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83320
|
83320
83320-12640 Gage Assy, Fuel Sender[05.2001 - 04.2003] NZE121,ZZE122 |
83320-12640 |
from US $58.39 |
||
|
84231A
|
84231A
84231-60070 Switch, Courtesy Lamp[05.2001 - 04.2003] NZE121,ZZE12# |
84231-60070 |
from US $11.83 |
||
|
84234
|
84234
84231-53010 Switch Assy, Courtesy Lamp (For Front Door)[05.2001 - 04.2003] NZE121,ZZE12# |
84231-53010 |
from US $11.83 |
||
|
84290
|
84290
84290-D1080 Switch Assy, Limit[10.2006 -] NZE121,ZZE12# |
84290-D1080 |
US $103.38 |
||
|
84810
|
84810
84030-13010 Switch Assy, Power Window Regulator[04.2003 -] NZE121,ZZE12# |
84030-13010 |
US $179.09 |
||
|
84810
|
84810
84810-12080 Switch Assy, Power Window Regulator[05.2001 - 04.2003] NZE121,ZZE12# |
84810-12080 |
from US $28.70 |
||
|
84810D
|
84810D
84030-13010 Switch Assy, Power Window Regulator[04.2003 -] NZE121,ZZE12# |
84030-13010 |
US $179.09 |
||
|
84810D
|
84810D
84810-12080 Switch Assy, Power Window Regulator[05.2001 - 04.2003] NZE121,ZZE12# |
84810-12080 |
from US $28.70 |
||
|
84820
|
84820
84040-13010 Master Switch Assy, Power Window Regulator[04.2003 -] NZE121,ZZE12# |
84040-13010 |
US $366.91 |
||
|
84820
|
84820
84820-13080 Master Switch Assy, Power Window Regulator[05.2001 - 04.2003] NZE121,ZZE12# |
84820-13080 |
US $331.97 |
||
|
84920
|
84920
84920-D1010 Switch Assy, Power Seat[01.2004 - 08.2005] NZE121,ZZE12# スライド＆バーチカル用 |
84920-D1010 |
US $55.04 |
||
|
84920
|
84920
84920-D1020 Switch Assy, Power Seat[01.2004 - 08.2005] NZE121,ZZE12# リクライニング |
84920-D1020 |
US $55.04 |
||
|
85530
|
85530
85530-33020 Socket Assy, Power Outlet, No.1[05.2001 - 04.2003] NZE121,ZZE12# |
85530-33020 |
from US $15.29 |
||
| replacement | |||||
|
85530
|
85530
85530-06010 Socket Assy, Power Outlet, No.1[05.2001 - 04.2003] NZE121,ZZE12# |
85530-06010 |
from US $26.06 |
||
|
85530B
|
85530B
85530-41020 Socket Assy, Power Outlet, No.1[05.2001 - 04.2003] NZE121,ZZE12# |
85530-41020 |
US $37.56 |
||
|
85535B
|
85535B
85535-13010-A0 Cover, Power Outlet Socket, No.1[05.2001 - 04.2003] NZE121,ZZE12#..V,X IVORY,TRIM0# |
85535-13010-A0 |
US $11.50 |
||
|
85535B
|
85535B
85535-13010-B3 Cover, Power Outlet Socket, No.1[11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L),DK.GRAY,TRIM10 |
85535-13010-B3 |
US $11.65 |
||
| replacement | |||||
|
85535B
|
85535B
85535-60020-C0 Cover, Power Outlet Socket, No.1POWER POINT SOCKET [11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L),DK.GRAY,TRIM10 |
85535-60020-C0 |
US $12.06 |
||
|
85535C
|
85535C
85535-41010-A0 Cover, Power Outlet Socket, No.1[05.2001 - 04.2003] NZE121,ZZE12#..V,X IVORY,TRIM0# |
85535-41010-A0 |
US $11.11 |
||
|
85535C
|
85535C
85535-41010-B1 Cover, Power Outlet Socket, Rear[11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L),DK.GRAY,TRIM10 |
85535-41010-B1 |
US $11.11 |
||
|
85539
|
85539
85539-60010 Label, Power Outlet Notice[04.2003 -] NZE121,ZZE12# |
85539-60010 |
US $1.14 |
||
|
85920
|
85920
85920-13010-A0 Relay & Switch Assy, Sliding Roof[05.2001 - 04.2003] NZE121,ZZE12#..V,X IVORY,TRIM0# |
85920-13010-A0 |
US $238.78 |
||
| replacement | |||||
|
85920
|
85920
85920-13010-B0 Relay & Switch Assy, Sliding Roof[05.2001 - 04.2003] NZE121,ZZE12#..V,X IVORY,TRIM0# |
85920-13010-B0 |
US $238.78 |
||
|
85920
|
85920
85920-13010-B0 Relay & Switch Assy, Sliding Roof[11.2001 - 04.2003] NZE121,ZZE124..07S..X X-Sﾘﾐﾃﾂﾄﾞ *(L),LT.GRAY,TRIM10 |
85920-13010-B0 |
US $238.78 |
||
|
85920
|
85920
85920-13020-A0 Relay & Switch Assy, Sliding Roof[04.2003 - 06.2007] NZE121,ZZE12#..X IVORY,TRIM0# |
85920-13020-A0 |
US $240.24 |
||
|
85920
|
85920
85920-13020-B0 Relay & Switch Assy, Sliding Roof[04.2003 - 06.2007] NZE121,ZZE12# LT.GRAY,TRIM1# |
85920-13020-B0 |
US $240.24 |
||
|
86210A
|
86210A
86210-13010 Inverter Assy, Voltage[05.2001 - 04.2003] NZE121,ZZE12# |
86210-13010 |
US $384.38 |
||
|
89407
|
89407
89407-12010 Sensor Sub-Assy, Height Control, Rear Rh[09.2005 -] NZE121,ZZE122 |
89407-12010 |
US $342.45 |
||
|
91631B0820
|
91631B0820
91631-B0820 BOLT WWASHER |
91631-B0820 |
from US $0.78 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.84 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.68 |
||
|
827111E360
|
827111E360
82711-1E360 Clamp, Wiring Harness |
82711-1E360 |
US $1.08 |
||
|
4896668010
|
4896668010
48966-68010 Bracket, Sensor Connecting, Rear |
48966-68010 |
US $4.95 |
||
|
9010906296
|
9010906296
90109-06296 BOLT |
90109-06296 |
US $1.61 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
from US $0.74 |
||
|
9018206005
|
9018206005
90182-06005 NUT W-WASHER |
90182-06005 |
US $1.61 |
||
|
9415010641
|
9415010641
94150-10641 Nut |
94150-10641 |
US $1.08 |
||
|
C2593
|
C2593
C2593-D1060 Bracket, Wireless Box, Fr[01.2004 -] NZE121,ZZE12# |
C2593-D1060 |
US $4.80 |
||
|
C8560
|
C8560
C8560-18030 Relay Assy, Lifter[01.2004 - 09.2005] NZE121,ZZE12# |
C8560-18030 |
US $797.89 |
||
| replacement | |||||
|
C8560
|
C8560
C8560-D1051 Relay Assy, Lifter[01.2004 - 09.2005] NZE121,ZZE12# |
C8560-D1051 |
US $502.32 |
||
|
C8560
|
C8560
C8560-D1050 Relay Assy, Lifter[09.2005 -] NZE121,ZZE12# |
C8560-D1050 |
US $800.80 |
||
| replacement | |||||
|
C8560
|
C8560
C8560-D1051 Relay Assy, Lifter[09.2005 -] NZE121,ZZE12# |
C8560-D1051 |
US $502.32 |
||
