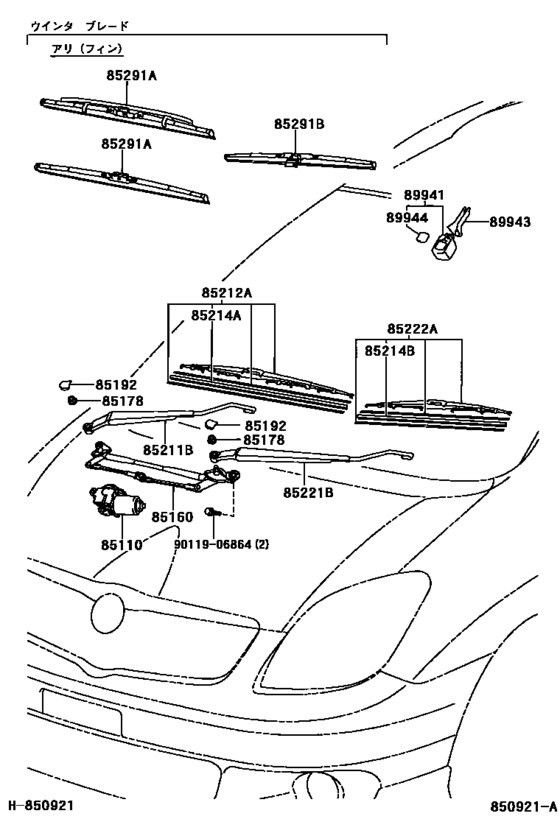

Windshield Wiper ([05.2001 - ] (0105- )) Diagram Toyota COROLLA SPACIO
- Year
- 2001 - 2007
- Sales region
- Japan
- Frame
- NZE121
- grade
- X
- ENGINE
- 1NZFE
- From
- 05.2001
- To
- 06.2007
- Seating Capacity
- 07S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-13080 Motor Assy, Windshield Wiper[05.2001 - 04.2003] NZE121,ZZE12# |
85110-13080 |
US $250.43 |
||
|
85110
|
85110
85110-13110 Motor Assy, Windshield Wiper[05.2001 - 04.2003] NZE121,ZZE12# ｶﾝﾚｲﾁ ｼﾖｳ |
85110-13110 |
US $425.88 |
||
|
85160
|
85160
85150-13070 Link Assy, Windshield Wiper[05.2001 - 04.2003] NZE121,ZZE12# |
85150-13070 |
US $123 |
||
|
85178
|
85178
90179-10223 Nut (For Front Wiper Arm Setting)[05.2001 - 04.2003] NZE121,ZZE12# |
90179-10223 |
from US $0.92 |
||
|
85192
|
85192
85292-13010 Cover, Windshield Wiper Arm[05.2001 - 04.2003] NZE121,ZZE12# |
85292-13010 |
from US $4.11 |
||
|
85211B
|
85211B
85211-13030 Arm, Front Wiper, Rh[05.2001 - 04.2003] NZE121,ZZE12# |
85211-13030 |
US $68 |
||
| replacement | |||||
|
85211B
|
85211B
85211-13060 Arm, Front Wiper, Rh[05.2001 - 04.2003] NZE121,ZZE12# |
85211-13060 |
US $83.64 |
||
|
85211B
|
85211B
85211-13060 Arm, Front Wiper, Rh[04.2003 -] NZE121,ZZE12# |
85211-13060 |
US $83.64 |
||
|
85212A
|
85212A
85212-13020 Blade, Fr Wiper, Rh[05.2001 - 04.2003] NZE121,ZZE12# |
85212-13020 |
US $71.93 |
||
| replacement | |||||
|
85212A
|
85212A
85212-48080 Blade, Fr Wiper, Rh[05.2001 - 04.2003] NZE121,ZZE12# |
85212-48080 |
US $42.81 |
||
|
85212A
|
85212A
85212-48080 Blade, Fr Wiper, Rh[04.2003 -] NZE121,ZZE12# |
85212-48080 |
US $42.81 |
||
|
85214A
|
85214A
85214-44070
Rubber, Wiper, Rh
[05.2001 - 06.2001] NZE121,ZZE122 |
85214-44070 |
— | ||
| replacement | |||||
|
85214A
|
85214A
85214-44140 Rubber, Wiper, Rh[05.2001 - 06.2001] NZE121,ZZE122 |
85214-44140 |
from US $13.77 |
||
|
85214A
|
85214A
85214-44130 Rubber, Wiper, Rh[06.2001 - 04.2003] NZE121,ZZE12# |
85214-44130 |
US $14.41 |
||
| replacement | |||||
|
85214A
|
85214A
85214-44140 Rubber, Wiper, Rh[06.2001 - 04.2003] NZE121,ZZE12# |
85214-44140 |
from US $13.77 |
||
|
85214A
|
85214A
85214-44140 Rubber, Wiper, Rh[04.2003 -] NZE121,ZZE12# |
85214-44140 |
from US $13.77 |
||
|
85214B
|
85214B
85214-44020
Rubber, Wiper, Lh
[05.2001 - 06.2001] NZE121,ZZE122 |
85214-44020 |
— | ||
| replacement | |||||
|
85214B
|
85214B
85214-50061 Rubber, Wiper, Rh[05.2001 - 06.2001] NZE121,ZZE122 |
85214-50061 |
from US $8.09 |
||
|
85214B
|
85214B
85214-50060
Rubber, Wiper, Lh
[04.2003 - 06.2006] NZE121,ZZE12# |
85214-50060 |
— | ||
| replacement | |||||
|
85214B
|
85214B
85214-50061 Rubber, Wiper, Rh[04.2003 - 06.2006] NZE121,ZZE12# |
85214-50061 |
from US $8.09 |
||
|
85214B
|
85214B
85214-50061 Rubber, Wiper, Rh[06.2006 -] NZE121,ZZE12# |
85214-50061 |
from US $8.09 |
||
|
85214B
|
85214B
85214-50130
Rubber, Wiper, Lh
[06.2001 - 04.2003] NZE121,ZZE12# |
85214-50130 |
— | ||
| replacement | |||||
|
85214B
|
85214B
85214-50061 Rubber, Wiper, Rh[06.2001 - 04.2003] NZE121,ZZE12# |
85214-50061 |
from US $8.09 |
||
|
85221B
|
85221B
85221-13040 Arm, Front Wiper, Lh[05.2001 - 04.2003] NZE121,ZZE12# |
85221-13040 |
US $80.08 |
||
| replacement | |||||
|
85221B
|
85221B
85221-13070 Arm, Front Wiper, Lh[05.2001 - 04.2003] NZE121,ZZE12# |
85221-13070 |
US $72.60 |
||
|
85221B
|
85221B
85221-13070 Arm, Front Wiper, Lh[04.2003 -] NZE121,ZZE12# |
85221-13070 |
US $72.60 |
||
|
85222A
|
85222A
85222-13040 Blade, Fr Wiper, Lh[04.2003 - 05.2006] NZE121,ZZE12# |
85222-13040 |
US $26.35 |
||
| replacement | |||||
|
85222A
|
85222A
85222-13041 Blade, Fr Wiper, Lh[04.2003 - 05.2006] NZE121,ZZE12# |
85222-13041 |
US $27.55 |
||
|
85222A
|
85222A
85222-13041 Blade, Fr Wiper, Lh[06.2006 -] NZE121,ZZE12# |
85222-13041 |
US $27.55 |
||
|
85222A
|
85222A
85222-52040 Blade, Fr Wiper, Lh[05.2001 - 04.2003] NZE121,ZZE12# |
85222-52040 |
US $26.35 |
||
| replacement | |||||
|
85222A
|
85222A
85222-13041 Blade, Fr Wiper, Lh[05.2001 - 04.2003] NZE121,ZZE12# |
85222-13041 |
US $27.55 |
||
|
85291A
|
85291A
85291-44060 Blade, Front Wiper, Winter, Rh[05.2001 - 04.2003] NZE121,ZZE12# ｱﾘ(ﾌｲﾝ) |
85291-44060 |
US $133.95 |
||
| replacement | |||||
|
85291A
|
85291A
85291-44090 Blade, Front Wiper, Winter, Rh[05.2001 - 04.2003] NZE121,ZZE12# ｱﾘ(ﾌｲﾝ) |
85291-44090 |
US $104.83 |
||
|
85291A
|
85291A
85291-44070 Blade, Front Wiper, Winter, Rh[05.2001 - 04.2003] NZE121,ZZE12# |
85291-44070 |
US $87.36 |
||
|
85291A
|
85291A
85291-44090 Blade, Front Wiper, Winter, Rh[04.2003 -] NZE121,ZZE12# ｱﾘ(ﾌｲﾝ) |
85291-44090 |
US $104.83 |
||
|
85291B
|
85291B
85291-44080 Blade Assy, Windshield Wiper[05.2001 - 04.2003] NZE121,ZZE12# |
85291-44080 |
from US $32.95 |
||
|
89941
|
89941
89941-33010 Sensor, Rain[04.2003 -] NZE121,ZZE12# |
89941-33010 |
US $267.90 |
||
|
89943
|
89943
89943-13010 Cover, Rain Sensor[04.2003 -] NZE121,ZZE12# |
89943-13010 |
US $33.20 |
||
|
89944
|
89944
89944-33010 Tape, Rain Sensor[04.2003 -] NZE121,ZZE12# |
89944-33010 |
from US $17.24 |
||
|
9011906864
|
9011906864
90119-06864 BOLT W-WASHER |
90119-06864 |
US $1.43 |
||
