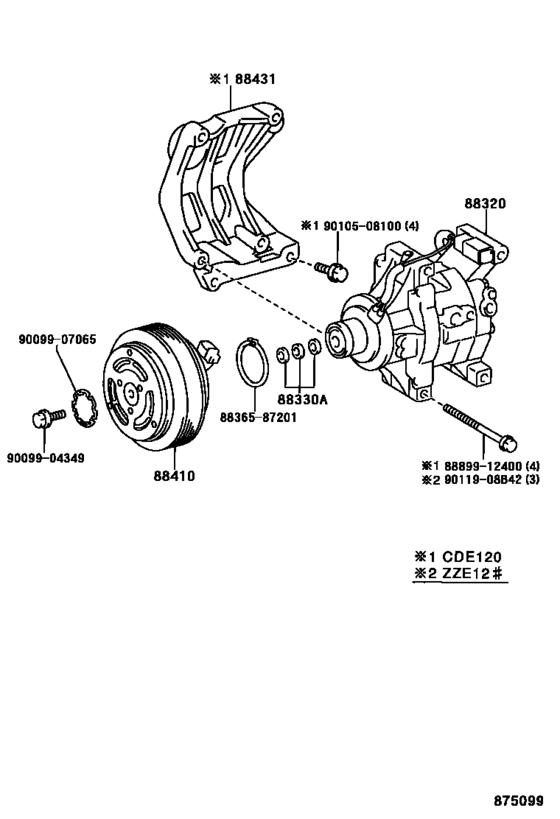

Heating & Air Conditioning - Compressor ([09.2001 - ] (0109- )) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 01.2004
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-1A481 Compressor Assy, Cooler[10.2001 - 07.2002] CDE120 |
88320-1A481 |
US $1,537.54 |
||
|
88320
|
88320
88320-1A550
Compressor Assy, Cooler
[07.2002 - 01.2004] CDE120 |
88320-1A550 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[09.2001 - 01.2004] CDE120,ZZE12# |
88335-14020 |
from US $1.24 |
||
|
88410
|
88410
88410-13010 Clutch Assy, MagnetMAGNET [10.2001 - 07.2002] CDE120 |
88410-13010 |
US $349.44 |
||
|
88410
|
88410
88410-13020
Clutch Assy, Magnet
[07.2002 - 01.2004] CDE120 |
88410-13020 |
— | ||
|
88431
|
88431
88431-13010
Bracket, Compressor Mounting, No.1
[10.2001 - 01.2004] CDE120 |
88431-13010 |
— | ||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.15 |
||
|
8836587201
|
8836587201
88365-87201 Ring, Snap |
88365-87201 |
from US $1.75 |
||
|
8889912400
|
8889912400
88899-12400
Bolt, Compressor, No.1
|
88899-12400 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.13 |
||
|
9010508100
|
9010508100
90105-08100 BOLT |
90105-08100 |
from US $1.19 |
