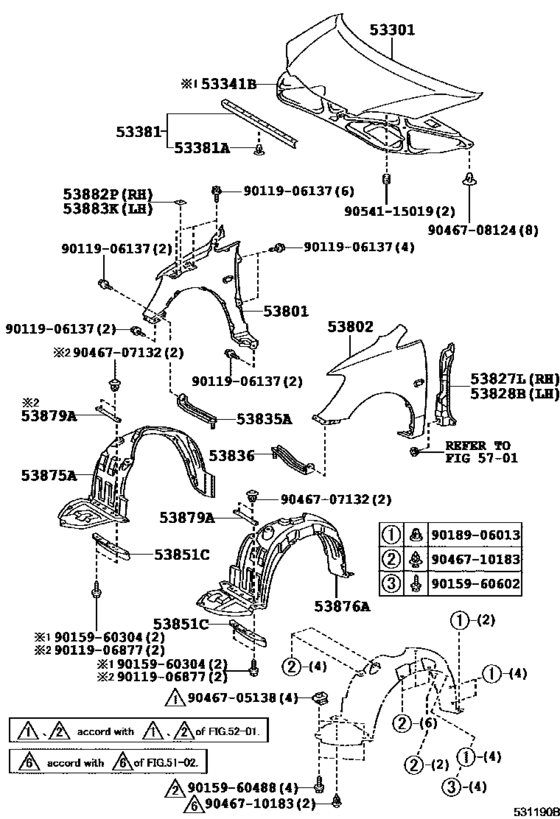

Hood & Front Fender ([09.2001 - ] (0109- )) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 01.2004
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301
|
53301
53301-13050 Hood Sub-Assy[09.2001 - 01.2004] CDE120,ZZE12# |
53301-13050 |
from US $269.33 |
||
|
53341B
|
53341B
53341-13010
Insulator, Hood
[09.2001 - 01.2004] CDE120,ZZE12# |
53341-13010 |
— | ||
|
53381
|
53381
53381-13020 Seal, Hood To Radiator Support[09.2001 - 01.2004] CDE120,ZZE12# |
53381-13020 |
US $22.28 |
||
|
53381A
|
53381A
90467-08011 Clip(For Headlamp Cover Seal)[09.2001 - 01.2004] CDE120,ZZE12# |
90467-08011 |
from US $0.33 |
||
| replacements | |||||
|
53381A
|
53381A
90467-08011-TH CLIP[09.2001 - 01.2004] CDE120,ZZE12# |
90467-08011-TH |
US $0.31 |
||
|
53381A
|
53381A
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [09.2001 - 01.2004] CDE120,ZZE12# |
90467-08011-83 |
US $3.60 |
||
|
53801
|
53801
53811-13100 Fender Sub-Assy, Front Rh[09.2001 - 01.2004] CDE120,ZZE12# |
53811-13100 |
from US $388.26 |
||
|
53802
|
53802
53812-13090 Fender Sub-Assy, Front Lh[09.2001 - 01.2004] CDE120,ZZE12# |
53812-13090 |
from US $388.26 |
||
|
53827L
|
53827L
53827-13050 Protector, Front Fender Side Panel, Rh[09.2001 - 01.2004] CDE120,ZZE12# |
53827-13050 |
US $39.17 |
||
|
53828B
|
53828B
53828-13030 Protector, Front Fender Side Panel, Lh[09.2001 - 01.2004] CDE120,ZZE12# |
53828-13030 |
US $39.17 |
||
|
53835A
|
53835A
53835-13030 Brace, Front Fender To Apron, Rh[09.2001 - 01.2004] CDE120,ZZE12# |
53835-13030 |
US $6.84 |
||
|
53836
|
53836
53836-13030 Brace, Front Fender To Extension, Lh[09.2001 - 01.2004] CDE120,ZZE12# |
53836-13030 |
US $6.84 |
||
|
53851C
|
53851C
53851-13020 Pad, Front Wheel Opening Extension, No.1[09.2001 - 01.2004] CDE120,ZZE12# |
53851-13020 |
US $21.55 |
||
|
53875A
|
53875A
53875-13020 Liner, Front Fender, Rh[09.2001 - 01.2004] CDE120,ZZE12# |
53875-13020 |
from US $80.08 |
||
|
53876A
|
53876A
53876-13020 Liner, Front Fender, Lh[09.2001 - 01.2004] CDE120,ZZE12# |
53876-13020 |
US $80.08 |
||
|
53879A
|
53879A
53879-13010 Retainer, Front Fender Liner[06.2002 - 01.2004] CDE120,ZZE12# |
53879-13010 |
US $13.26 |
||
|
53879A
|
53879A
53879-47010 Retainer, Front Fender Liner[09.2001 - 06.2002] CDE120,ZZE12# |
53879-47010 |
US $7.29 |
||
|
53882P
|
53882P
53882-16030 Pad, Rear Bumper, Center[09.2001 - 01.2004] CDE120,ZZE12# |
53882-16030 |
from US $0.72 |
||
|
53883K
|
53883K
53882-16030 Pad, Rear Bumper, Center[09.2001 - 01.2004] CDE120,ZZE12# |
53882-16030 |
from US $0.72 |
||
|
9011906137
|
9011906137
90119-06137 BOLT |
90119-06137 |
from US $0.68 |
||
|
9011906877
|
9011906877
90119-06877 BOLT WWASHER |
90119-06877 |
from US $0.68 |
||
|
9015960304
|
9015960304
90159-60304 SCREW |
90159-60304 |
from US $1.01 |
||
|
9015960488
|
9015960488
90159-60488 SCREW WWASHER |
90159-60488 |
from US $0.70 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.62 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.70 |
||
|
9046705138
|
9046705138
90467-05138 Clip(For Front Bumper Retainer) |
90467-05138 |
from US $2.05 |
||
|
9046707132
|
9046707132
90467-07132 Clip |
90467-07132 |
from US $0.90 |
||
|
9046708124
|
9046708124
90467-08124 Clip(For Hood Insulator) |
90467-08124 |
from US $1.56 |
||
|
9046710183
|
9046710183
90467-10183 Clip(For Luggage Compartment Trim Inner Cover) |
90467-10183 |
from US $0.84 |
||
|
9054115019
|
9054115019
90541-15019 Cushion, Hood Bumper |
90541-15019 |
from US $3.49 |
||
