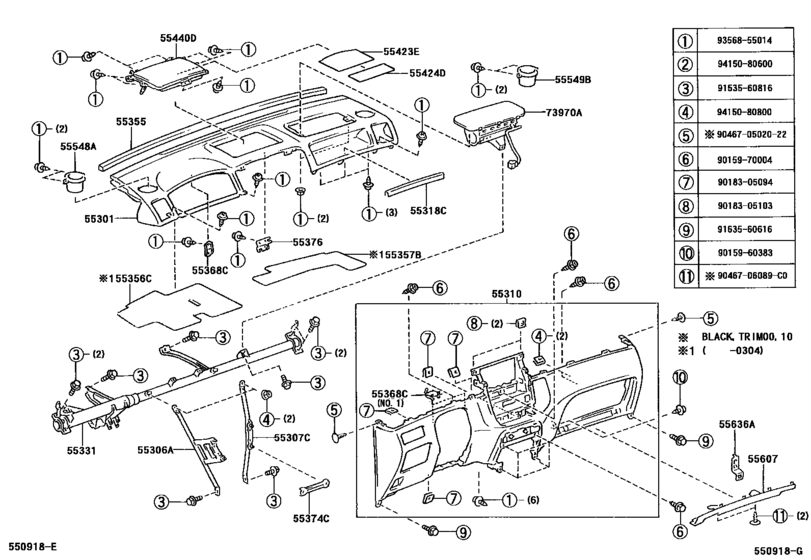

Instrument Panel & Glove Compartment ([10.2001 - ] (0110- )LHD) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 01.2004
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55301
|
55301
55300-13020-B0 Panel Sub-Assy, InstrumentINSTRUMENT [10.2001 - 01.2004] CDE120,ZZE12#..LHD..SOL DK.GRAY,TRIM0#,1#; CDE120,ZZE12#..LHD..TERRA DK.GRAY,TRIM1# |
55300-13020-B0 |
US $441.17 |
||
|
55306A
|
55306A
55306-13030 Brace Sub-Assy, Instrument Panel, No.1INSTRUMENT PANEL, NO.1 [10.2001 - 01.2004] CDE120,ZZE12#..LHD |
55306-13030 |
US $48.78 |
||
|
55307C
|
55307C
55307-13030 Brace Sub-Assy, Instrument Panel, No.2INSTRUMENT PANEL, NO.2 [10.2001 - 01.2004] CDE120,ZZE12#..LHD |
55307-13030 |
US $32.76 |
||
|
55310
|
55310
55310-13020-B1 Panel Assy, Instrument, LowerINSTRUMENT, LOWER [10.2001 - 01.2004] CDE120,ZZE12#..LHD DK.GRAY,TRIM1# |
55310-13020-B1 |
US $441.17 |
||
|
55318C
|
55318C
55317-13020-B0 Panel, Instrument Side, LhINSTRUMENT SIDE, LH [10.2001 - 01.2004] CDE120,ZZE12#..LHD..SOL DK.GRAY,TRIM0#,1#; CDE120,ZZE12#..LHD..TERRA DK.GRAY,TRIM1# |
55317-13020-B0 |
US $23.73 |
||
|
55331
|
55331
55330-13050 Reinforcement, Instrument PanelINSTRUMENT PANEL [10.2001 - 11.2001] CDE120,ZZE12#..LHD |
55330-13050 |
US $216.94 |
||
| replacement | |||||
|
55331
|
55331
55330-13051 Reinforcement, Instrument PanelINSTRUMENT PANEL [10.2001 - 11.2001] CDE120,ZZE12#..LHD |
55330-13051 |
US $216.94 |
||
|
55331
|
55331
55330-13051 Reinforcement, Instrument PanelINSTRUMENT PANEL [11.2001 - 01.2004] CDE120,ZZE12#..LHD |
55330-13051 |
US $216.94 |
||
|
55355
|
55355
55355-52012 Cushion, Instrument Panel, No.1[09.2001 - 01.2004] CDE120,ZZE12# |
55355-52012 |
US $12.08 |
||
|
55356C
|
55356C
55356-13060 Cushion, Instrument Panel, No.2INSTRUMENT PANEL, NO.2 [09.2002 - 04.2003] CDE120,ZZE12#..LHD |
55356-13060 |
US $52.42 |
||
|
55357B
|
55357B
55357-13060 Cushion, Instrument Panel, No.3INSTRUMENT PANEL, NO.3 [09.2002 - 04.2003] CDE120,ZZE12#..LHD |
55357-13060 |
US $31.89 |
||
|
55368C
|
55368C
55362-12050 Bracket, Meter Mounting[09.2001 - 01.2004] CDE120,ZZE12# NO.1 |
55362-12050 |
US $1.46 |
||
|
55368C
|
55368C
55368-13020 Bracket, Meter Mounting[09.2001 - 01.2004] CDE120,ZZE12# NO.2 |
55368-13020 |
US $4.95 |
||
|
55374C
|
55374C
55349-13010 Bracket, Instrument Panel Lower Mounting, No.1[09.2001 - 01.2004] CDE120,ZZE12#..MTM |
55349-13010 |
US $6.84 |
||
|
55376
|
55376
55376-13020 Bracket, Instrument Panel Mounting, No.1[09.2001 - 01.2004] CDE120,ZZE12# |
55376-13020 |
US $4.08 |
||
|
55423E
|
55423E
55423-13010 Cushion, Center Cluster, No.1CENTER CLUSTER, NO.1 [09.2001 - 01.2004] CDE120,ZZE12# |
55423-13010 |
US $37.56 |
||
|
55424D
|
55424D
55424-13020 Cushion, Center Cluster, No.2CENTER CLUSTER, NO.2 [09.2001 - 01.2004] CDE120,ZZE12# |
55424-13020 |
US $25.19 |
||
|
55440D
|
55440D
55440-13010-B0
Box Assy, Instrument Panel
[09.2001 - 02.2003] CDE120,ZZE12#..SOL DK.GRAY,TRIM0#,1#; CDE120,ZZE12#..TERRA DK.GRAY,TRIM1# |
55440-13010-B0 |
— | ||
| replacement | |||||
|
55440D
|
55440D
55440-13011-B0
Box Assy, Instrument Panel
[09.2001 - 02.2003] CDE120,ZZE12#..SOL DK.GRAY,TRIM0#,1#; CDE120,ZZE12#..TERRA DK.GRAY,TRIM1# |
55440-13011-B0 |
— | ||
|
55440D
|
55440D
55440-13011-B0
Box Assy, Instrument Panel
[02.2003 - 01.2004] CDE120,ZZE12#..SOL DK.GRAY,TRIM0#,1#; CDE120,ZZE12#..TERRA DK.GRAY,TRIM1# |
55440-13011-B0 |
— | ||
|
55548A
|
55548A
55548-13050-B0 Cover, Instrument Panel Hole[09.2001 - 01.2004] CDE120,ZZE12#..SOL DK.GRAY,TRIM0#,1#; CDE120,ZZE12#..TERRA DK.GRAY,TRIM1# |
55548-13050-B0 |
US $23.88 |
||
|
55549B
|
55549B
55549-13010-B0 Cover, Instrument Panel Hole, No.2[09.2001 - 01.2004] CDE120,ZZE12#..SOL DK.GRAY,TRIM0#,1#; CDE120,ZZE12#..TERRA DK.GRAY,TRIM1# |
55549-13010-B0 |
US $23.88 |
||
|
55607
|
55607
55607-13040-B0 Cover Sub-Assy, Instrument Panel Under, No.2INSTRUMENT PANEL UNDER, NO.2 [10.2001 - 01.2004] CDE120,ZZE12#..LHD DK.GRAY,TRIM1# |
55607-13040-B0 |
US $36.25 |
||
|
55636A
|
55636A
55637-13020 Bracket, Instrument Panel Under Cover, No.2INSTRUMENT PANEL UNDER COVER, NO.2 [10.2001 - 01.2004] CDE120,ZZE12#..LHD |
55637-13020 |
US $6.12 |
||
|
73970A
|
73970A
73970-13030-B0 Air Bag Assy, Instrument Panel PassengerINSTRUMENT PANEL PASSENGER [10.2001 - 01.2004] CDE120,ZZE12#..LHD..SOL DK.GRAY,TRIM0#,1#; CDE120,ZZE12#..LHD..TERRA DK.GRAY,TRIM1# |
73970-13030-B0 |
US $1,776.32 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.82 |
||
|
9015970004
|
9015970004
90159-70004 SCREW WWASHER |
90159-70004 |
US $0.69 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.94 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.61 |
||
|
9046706089C0
|
9046706089C0
90467-06089-C0 Clip, Instrument Panel |
90467-06089-C0 |
US $0.96 |
||
|
9153560816
|
9153560816
91535-60816 BOLT WWASHER |
91535-60816 |
US $1.05 |
||
|
9163560616
|
9163560616
91635-60616
BOLT WWASHER
|
91635-60616 |
— | ||
| replacement | |||||
|
9163560616
|
9163560616
91631-J0612 BRACKET |
91631-J0612 |
from US $0.72 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.66 |
||
|
9415080800
|
9415080800
94150-80800 NUT, FLANGE |
94150-80800 |
from US $0.78 |
||
|
904670502022
|
904670502022
90467-05020-22 Clip, Instrument Panel |
90467-05020-22 |
US $1.08 |
||
