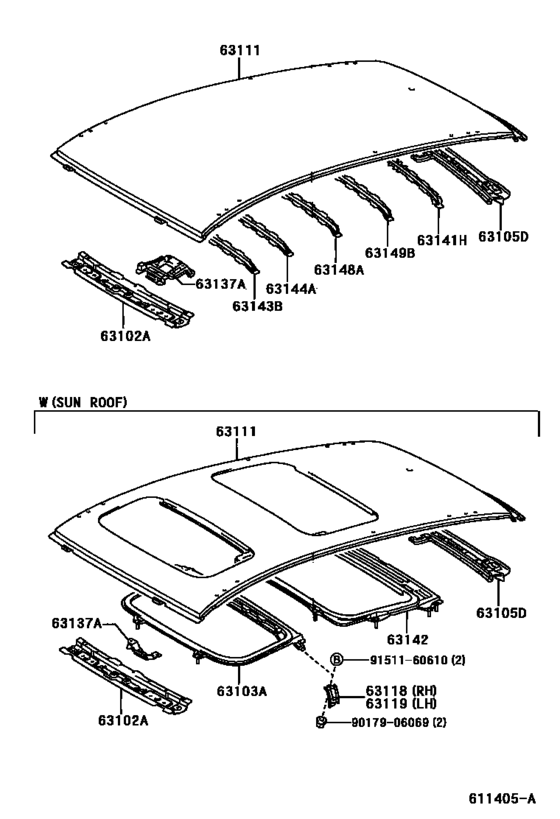

Roof Panel & Back Window Glass ([09.2001 - ] (0109- )) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 01.2004
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63102A
|
63102A
63132-13060 Panel Sub-Assy, Windshield Header[09.2001 - 01.2004] CDE120,ZZE12# |
63132-13060 |
US $77.17 |
||
|
63103A
|
63103A
63103-13020 Reinforcement Sub-Assy, Roof Panel[09.2001 - 01.2004] CDE120,ZZE12# |
63103-13020 |
US $157.25 |
||
|
63105D
|
63105D
63105-13180 Frame Sub-Assy, Back Window, Upper[09.2001 - 01.2004] CDE120,ZZE12# |
63105-13180 |
US $157.25 |
||
|
63111
|
63111
63111-13320 Panel, Roof[09.2001 - 01.2004] CDE120,ZZE12# W(SUN ROOF & BACK MONITOR) |
63111-13320 |
US $810.99 |
||
|
63111
|
63111
63111-13330 Panel, Roof[09.2001 - 01.2004] CDE120,ZZE12# W(ROOF RAIL & BACK MONITOR) |
63111-13330 |
US $810.99 |
||
|
63111
|
63111
63111-13340 Panel, Roof[09.2001 - 01.2004] CDE120,ZZE12# W(ROOF RAIL & BACK MONITOR & SUN ROOF) |
63111-13340 |
US $809.54 |
||
|
63111
|
63111
63111-13350 Panel, Roof[09.2001 - 01.2004] CDE120,ZZE12# W(BACK MONITOR) |
63111-13350 |
US $810.99 |
||
|
63111
|
63111
63111-13360 Panel, Roof[09.2001 - 01.2004] CDE120,ZZE12# |
63111-13360 |
US $810.99 |
||
|
63111
|
63111
63111-13370 Panel, Roof[09.2001 - 01.2004] CDE120,ZZE12# W(SUN ROOF) |
63111-13370 |
US $810.99 |
||
|
63111
|
63111
63111-13380 Panel, Roof[09.2001 - 01.2004] CDE120,ZZE12# W(ROOF RAIL) |
63111-13380 |
US $810.99 |
||
|
63111
|
63111
63111-13390 Panel, Roof[09.2001 - 01.2004] CDE120,ZZE12# W(SUN ROOF & ROOF RAIL) |
63111-13390 |
US $809.54 |
||
|
63118
|
63118
63118-13020 Support, Roof Panel, Rh[09.2001 - 01.2004] CDE120,ZZE12# |
63118-13020 |
US $7.28 |
||
|
63119
|
63119
63118-13020 Support, Roof Panel, Rh[09.2001 - 01.2004] CDE120,ZZE12# |
63118-13020 |
US $7.28 |
||
|
63137A
|
63137A
63137-13050 Bracket, Dome Lamp, No.1[09.2001 - 01.2004] CDE120,ZZE12# |
63137-13050 |
US $33.05 |
||
|
63137A
|
63137A
63137-13060 Bracket, Dome Lamp, No.1[09.2001 - 01.2004] CDE120,ZZE12# W(SUN ROOF) |
63137-13060 |
US $12.67 |
||
|
63141H
|
63141H
63141-13100 Reinforcement, Roof Panel, Center[09.2001 - 01.2004] CDE120,ZZE12# |
63141-13100 |
US $35.53 |
||
|
63142
|
63142
63142-13090 Reinforcement, Roof Panel, No.2[09.2001 - 01.2004] CDE120,ZZE12# |
63142-13090 |
US $157.25 |
||
|
63143B
|
63143B
63143-13060 Reinforcement, Roof Panel, No.3[09.2001 - 01.2004] CDE120,ZZE12# |
63143-13060 |
US $31.45 |
||
|
63144A
|
63144A
63144-13040 Reinforcement, Roof Panel, No.4[09.2001 - 01.2004] CDE120,ZZE12# |
63144-13040 |
US $30.58 |
||
|
63148A
|
63148A
63148-13040 Reinforcement, Roof Panel, No.7[09.2001 - 01.2004] CDE120,ZZE12# |
63148-13040 |
US $33.63 |
||
|
63149B
|
63149B
63149-13030 Reinforcement, Roof Panel, No.1 Rear[09.2001 - 01.2004] CDE120,ZZE12# |
63149-13030 |
US $32.32 |
||
|
9017906069
|
9017906069
90179-06069
Direct
|
90179-06069 |
— | ||
| replacement | |||||
|
9017906069
|
9017906069
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9151160610
|
9151160610
91511-60610
New Genuine Part
|
91511-60610 |
— | ||
| replacement | |||||
|
9151160610
|
9151160610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.97 |
||
