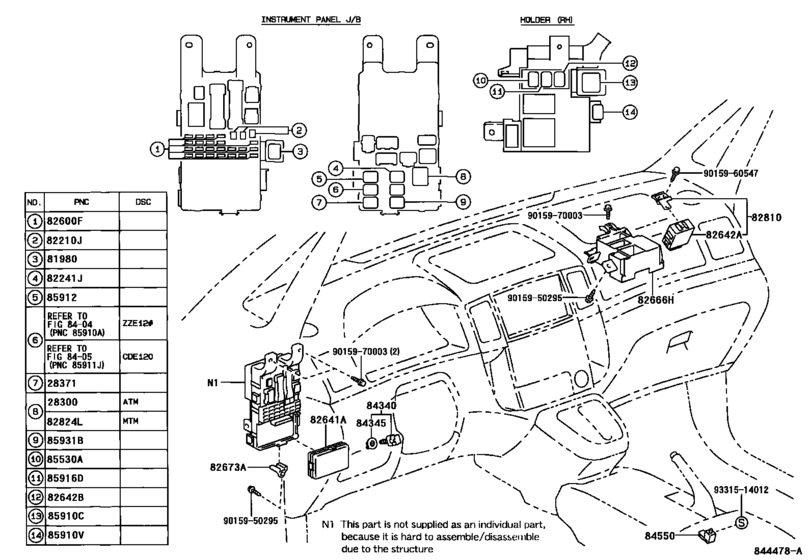

Switch & Relay & Computer ([09.2001 - ] COWL (0109- )LHD) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 01.2004
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28371
|
28371
90987-02020 Relay, Ignition, No.1[09.2001 - 01.2004] 1CDFTV,1ZZFE,3ZZFE..CDE120,ZZE12# |
90987-02020 |
US $46.53 |
||
|
81980
|
81980
81980-50030 Flasher Assy, Turn Signal[09.2001 - 01.2004] CDE120,ZZE12# |
81980-50030 |
from US $54.07 |
||
|
82210J
|
82210J
90982-08203 Fusible Link[10.2001 - 01.2004] CDE120 80A,TERMINAL:MALE |
90982-08203 |
from US $7.23 |
||
|
82210J
|
82210J
90982-08274 Fusible Link[10.2001 - 01.2004] CDE120 120A,TERMINAL:MALE |
90982-08274 |
from US $8.60 |
||
|
82210J
|
82210J
90982-08280 Fusible Link[07.2002 - 01.2004] CDE120,ZZE12#..LHD 30A,TERMINAL:FEMALE |
90982-08280 |
from US $3.88 |
||
|
82210J
|
82210J
90982-08281 Fusible Link[07.2002 - 01.2004] CDE120,ZZE12#..LHD 40A,TERMINAL:FEMALE |
90982-08281 |
from US $10.57 |
||
|
82210J
|
82210J
90982-08283 Fusible Link[09.2001 - 07.2002] CDE120,ZZE12# 30A,TERMINAL:FEMALE,TAIHEIYO |
90982-08283 |
from US $1.38 |
||
|
82210J
|
82210J
90982-08284 Fusible Link[09.2001 - 07.2002] ZZE12#;CDE120..LHD 40A,TERMINAL:FEMALE,TAIHEIYO |
90982-08284 |
from US $10.57 |
||
|
82210J
|
82210J
90982-08285 Fusible Link[10.2001 - 01.2004] CDE120 50A,TERMINAL:FEMALE |
90982-08285 |
from US $7.88 |
||
|
82210J
|
82210J
90982-08286 Fusible Link[10.2001 - 01.2004] CDE120 140A,TERMINAL:MALE |
90982-08286 |
from US $8.60 |
||
|
82241J
|
82241J
82241-02010 Wire, Relay[09.2001 - 01.2004] CDE120,ZZE12# |
82241-02010 |
US $4.08 |
||
|
82600F
|
82600F
90982-09007 Fusible Link[09.2001 - 01.2004] CDE120,ZZE12# 5A,MINI FUSE |
90982-09007 |
from US $0.55 |
||
|
82600F
|
82600F
90982-09009 Fusible Link[09.2001 - 01.2004] CDE120,ZZE12# 10A,MINI FUSE |
90982-09009 |
US $1.25 |
||
|
82600F
|
82600F
90982-09010 Fusible Link[09.2001 - 01.2004] CDE120,ZZE12# 15A,MINI FUSE |
90982-09010 |
from US $0.49 |
||
|
82600F
|
82600F
90982-09013 Fusible Link[09.2001 - 01.2004] CDE120,ZZE12# 30A,MINI FUSE |
90982-09013 |
from US $0.94 |
||
|
82641A
|
82641A
82641-12200 Relay, Integration No.1[09.2001 - 01.2004] CDE120,ZZE12#..TERRA |
82641-12200 |
US $122.30 |
||
| replacement | |||||
|
82641A
|
82641A
82641-12320 Relay, Integration No.1[09.2001 - 01.2004] CDE120,ZZE12#..TERRA |
82641-12320 |
from US $108.81 |
||
|
82641A
|
82641A
82641-13040 Relay, Integration No.1INTEGRATION W/DOOR CONTROL [09.2001 - 01.2004] CDE120,ZZE12# W(KEY LESS ENTRY) |
82641-13040 |
US $179.09 |
||
|
82642A
|
82642A
82642-12050 Relay, Running LightRUNNING LIGHT [10.2001 - 01.2004] CDE120,ZZE12#..LHD |
82642-12050 |
US $119.39 |
||
|
82642B
|
82642B
90987-02012 Relay, Ignition, No.1[10.2001 - 01.2004] CDE120,ZZE12#..LHD |
90987-02012 |
from US $26.54 |
||
|
82666H
|
82666H
82666-02100
Holder, Connector No.5
[10.2001 - 01.2004] CDE120,ZZE12#..LHD |
82666-02100 |
— | ||
|
82673A
|
82673A
82673-13040
Bracket, Junction Block
[10.2001 - 01.2004] CDE120,ZZE12#..LHD |
82673-13040 |
— | ||
|
82810
|
82810
82810-13060 Relay Assy, Running LightRUNNING LIGHT [10.2001 - 01.2004] CDE120,ZZE12#..LHD |
82810-13060 |
US $209.66 |
||
|
82824L
|
82824L
82824-30140 Connector, Wiring HarnessSHORT [09.2001 - 01.2004] CDE120,ZZE12#..MTM |
82824-30140 |
US $28.25 |
||
|
84340
|
84340
84340-19025
Switch Assy, Stop Lamp
[10.2001 - 01.2004] CDE120 |
84340-19025 |
— | ||
| replacement | |||||
|
84340
|
84340
84340-19026 SWITCH ASSY, STOP[10.2001 - 01.2004] CDE120 |
84340-19026 |
from US $20.38 |
||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[09.2001 - 01.2004] CDE120,ZZE12# |
84345-51010 |
from US $3.45 |
||
|
84550
|
84550
84550-33010 Switch Assy, Parking Brake[09.2001 - 01.2004] CDE120,ZZE12# |
84550-33010 |
from US $20.33 |
||
|
85530A
|
85530A
90987-02012 Relay, Ignition, No.1[09.2001 - 01.2004] CDE120,ZZE12# |
90987-02012 |
from US $26.54 |
||
|
85910C
|
85910C
90987-04010 Relay Assy (For Heater Blower Motor)[09.2001 - 01.2004] CDE120,ZZE12# |
90987-04010 |
from US $47.21 |
||
|
85910V
|
85910V
90987-02012 Relay, Ignition, No.1[10.2001 - 01.2004] CDE120,ZZE12#..LHD PART NUMBER LABEL=90987-02012 |
90987-02012 |
from US $26.54 |
||
|
85910V
|
85910V
90987-02020 Relay, Ignition, No.1[10.2001 - 01.2004] CDE120,ZZE12#..LHD PART NUMBER LABEL=90987-02020 |
90987-02020 |
US $46.53 |
||
|
85912
|
85912
90080-87008
Relay Assy, Circuit Opening (For Efi)
[09.2001 - 01.2004] CDE120,ZZE12# (L) |
90080-87008 |
— | ||
|
85912
|
85912
90987-02012 Relay, Ignition, No.1[09.2001 - 01.2004] CDE120,ZZE12# (J) |
90987-02012 |
from US $26.54 |
||
|
85916D
|
85916D
90987-02020 Relay, Ignition, No.1[09.2001 - 01.2004] CDE120,ZZE12# |
90987-02020 |
US $46.53 |
||
|
85931B
|
85931B
90987-02020 Relay, Ignition, No.1[10.2001 - 04.2002] CDE120..LHD |
90987-02020 |
US $46.53 |
||
|
9015950295
|
9015950295
90159-50295 New Genuine Part |
90159-50295 |
US $1.60 |
||
|
9015960547
|
9015960547
90159-60547 New Genuine Part |
90159-60547 |
US $0.70 |
||
|
9015970003
|
9015970003
90159-70003 Bolt, W/washer |
90159-70003 |
from US $0.52 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.78 |
||
