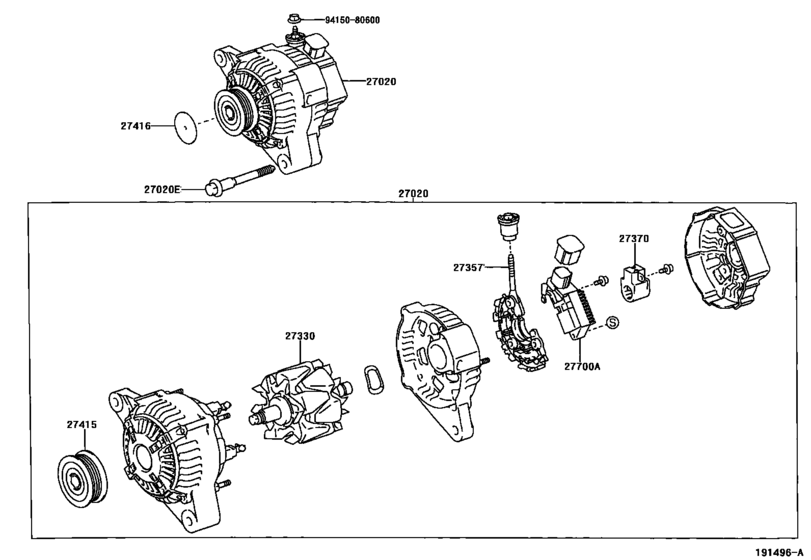

Alternator ([10.2001 - ] 12V 90,130A (0110- )1CDFTV) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- SOL
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 01.2004
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-27060 Alternator Assy[10.2001 - 01.2004] 1CDFTV..CDE120..LHD 12V 90A |
27060-27060 |
US $1,732.64 |
||
|
27020
|
27020
27060-27070 Alternator Assy[10.2001 - 01.2004] 1CDFTV..CDE120 12V 130A |
27060-27070 |
US $2,009.28 |
||
|
27020E
|
27020E
90901-05004 Bolt(For Alternator)[10.2001 - 01.2004] 1CDFTV..CDE120 |
90901-05004 |
US $8.15 |
||
|
27330
|
27330
27330-20130
Rotor Assy, Alternator
[10.2001 - 01.2004] 1CDFTV..CDE120 12V 130A |
27330-20130 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-33090 Rotor Assy, Alternator[10.2001 - 01.2004] 1CDFTV..CDE120 12V 130A |
27330-33090 |
US $193.94 |
||
|
27330
|
27330
27330-74550 Rotor Assy, Alternator[09.2001 - 01.2004] 1CDFTV..CDE120..LHD;1ZZFE,3ZZFE..ZZE12# 12V 80A,90A |
27330-74550 |
from US $176.47 |
||
|
27357
|
27357
27357-20130
Holder, Alternator, W/rectifier
[10.2001 - 01.2004] 1CDFTV..CDE120 12V 130A |
27357-20130 |
— | ||
|
27357
|
27357
27357-22070
Holder, Alternator, W/rectifier
[10.2001 - 01.2004] 1CDFTV..CDE120..LHD 12V 90A |
27357-22070 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[09.2001 - 01.2004] 1CDFTV..CDE120..LHD;1ZZFE,3ZZFE..ZZE12# |
27370-75060 |
from US $15.72 |
||
|
27415
|
27415
27415-27011
Pulley, Alternator W/clutch
[10.2001 - 01.2004] 1CDFTV..CDE120 |
27415-27011 |
— | ||
|
27416
|
27416
27416-27010 Cap, Alternator Pulley[10.2001 - 01.2004] 1CDFTV..CDE120 |
27416-27010 |
US $5.38 |
||
|
27700A
|
27700A
27700-27080 Regulator Assy, GeneratorGENERATOR [10.2001 - 01.2004] 1CDFTV..CDE120 12V 130A |
27700-27080 |
US $262.08 |
||
|
27700A
|
27700A
27700-64090 Regulator Assy, GeneratorGENERATOR [10.2001 - 01.2004] 1CDFTV..CDE120..LHD 12V 90A |
27700-64090 |
US $264.99 |
||
|
9415080600
|
9415080600
94150-80600 NUT FLANGE |
94150-80600 |
from US $0.66 |
||
