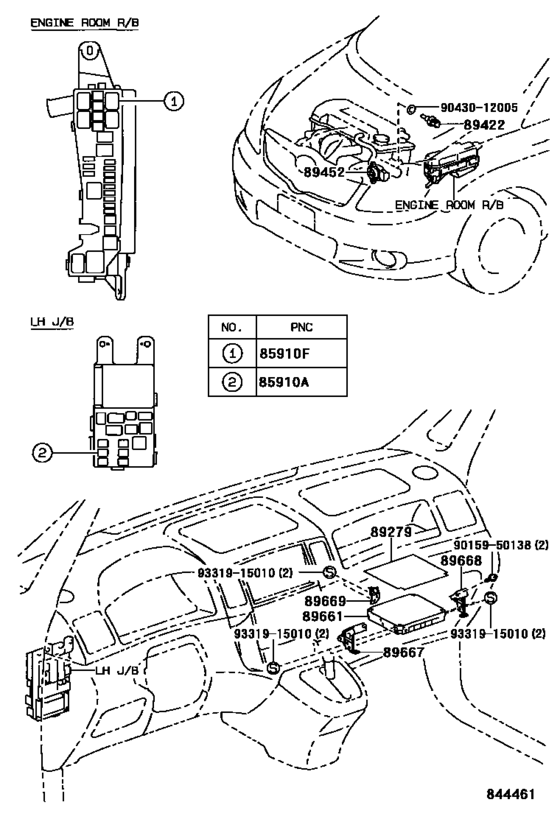

Electronic Fuel Injection System ([09.2001 - ] (0109- )LHD) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- SOL
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 01.2004
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89279
|
89279
89279-12150 Cover, Engine Control Computer[05.2003 - 01.2004] ZZE12#;CDE120..LHD |
89279-12150 |
US $5.53 |
||
|
89661
|
89661
89661-13120
Computer, Engine Control
[05.2003 - 01.2004] CDE120..LHD |
89661-13120 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-13121
Computer, Engine Control
[05.2003 - 01.2004] CDE120..LHD |
89661-13121 |
— | ||
|
89667
|
89667
89667-12190 Bracket, Engine Control Computer[05.2003 - 01.2004] CDE120,ZZE12#..LHD |
89667-12190 |
US $10.34 |
||
|
89668
|
89668
89668-12100 Bracket, Engine Control Computer, No.2[05.2003 - 01.2004] CDE120,ZZE12#..LHD |
89668-12100 |
US $11.21 |
||
|
89669
|
89669
89669-12030 Bracket, Engine Control Computer, No.3[05.2003 - 01.2004] ZZE12#;CDE120..LHD |
89669-12030 |
US $5.68 |
||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.25 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.68 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
