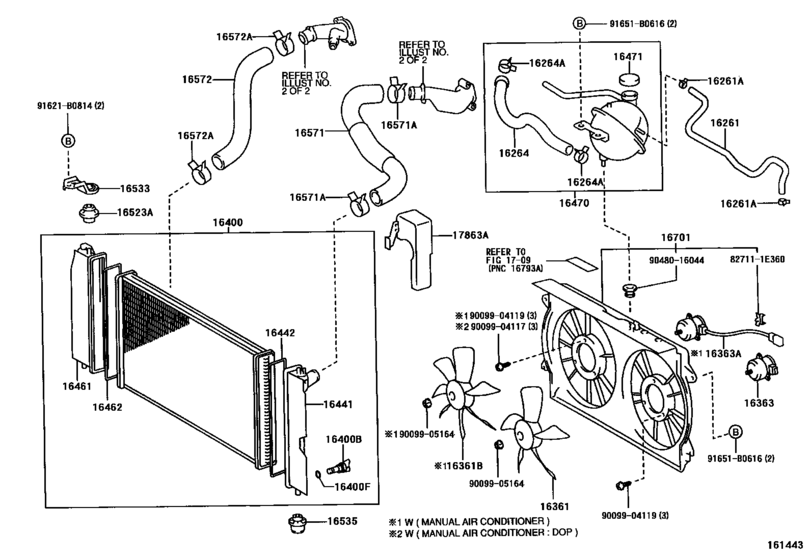

Radiator & Water Outlet ([10.2001 - ] (0110- )1CDFTV) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2004
- Sales region
- Europe
- Frame
- CDE120
- grade
- SOL
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 01.2004
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-27050 Hose, Water By-PassWATER BY-PASS [10.2001 - 01.2004] 1CDFTV..CDE120 |
16261-27050 |
US $12.08 |
||
|
16261A
|
16261A
90467-13050
Clamp Or Clip, Hose(For Water By-Pass Hose)
[10.2001 - 04.2002] 1CDFTV..CDE120 |
90467-13050 |
— | ||
| replacement | |||||
|
16261A
|
16261A
96135-51300 Clamp, Hose[10.2001 - 04.2002] 1CDFTV..CDE120 |
96135-51300 |
from US $2.13 |
||
|
16261A
|
16261A
96135-51300 Clamp, Hose[04.2002 - 01.2004] 1CDFTV..CDE120; 1ZZFE,3ZZFE..ZZE12# |
96135-51300 |
from US $2.13 |
||
|
16264
|
16264
16264-27040 Hose, Water By-Pass, No.2WATER BY-PASS, NO.2 [10.2001 - 01.2004] 1CDFTV..CDE120 |
16264-27040 |
US $14.27 |
||
|
16264A
|
16264A
90467-21010 Clip(For Ventilation Hose No.2)[10.2001 - 01.2004] 1CDFTV..CDE120 |
90467-21010 |
from US $2.54 |
||
|
16361
|
16361
16361-0G010 Fan[10.2001 - 01.2004] 1CDFTV..CDE120 |
16361-0G010 |
US $61.44 |
||
|
16361B
|
16361B
16361-0G020 Fan, No.2NO.2 [10.2001 - 01.2004] 1CDFTV..CDE120 |
16361-0G020 |
US $85.90 |
||
|
16363
|
16363
16363-23030 Motor, Cooling Fan[10.2001 - 06.2003] 1CDFTV..CDE120 |
16363-23030 |
US $282.46 |
||
| replacement | |||||
|
16363
|
16363
16363-28160 Motor, Cooling Fan[10.2001 - 06.2003] 1CDFTV..CDE120 |
16363-28160 |
from US $171.17 |
||
|
16363
|
16363
16363-28160 Motor, Cooling Fan[06.2003 - 01.2004] 1CDFTV..CDE120 |
16363-28160 |
from US $171.17 |
||
|
16363A
|
16363A
16363-27040 Motor, Cooling Fan, No.2COOLING FAN, NO.2 [10.2001 - 06.2003] 1CDFTV..CDE120 |
16363-27040 |
US $337.79 |
||
|
16363A
|
16363A
16363-27050
Motor, Cooling Fan, No.2
[06.2003 - 01.2004] 1CDFTV..CDE120 |
16363-27050 |
— | ||
|
16400
|
16400
16400-27040
Radiator Assy
[10.2001 - 01.2004] 1CDFTV..CDE120 |
16400-27040 |
— | ||
|
16400B
|
16400B
23322-54010 Plug,air(For Oil Cooler Drain Cock)[10.2001 - 01.2004] 1CDFTV..CDE120 |
23322-54010 |
from US $4.86 |
||
|
16400F
|
16400F
16492-21050 Ring, O(For Oil Cooler Drain Cock)[10.2001 - 01.2004] 1CDFTV..CDE120 |
16492-21050 |
from US $2.16 |
||
|
16441
|
16441
16441-27040 Tank, Radiator, UpperRADIATOR, UPPER [10.2001 - 01.2004] 1CDFTV..CDE120 |
16441-27040 |
US $44.84 |
||
|
16442
|
16442
16462-6A300 Ring, O(For Radiator Upper Tank)[10.2001 - 01.2004] 1CDFTV..CDE120 |
16462-6A300 |
from US $13.10 |
||
|
16461
|
16461
16461-27040 Tank, Radiator, LowerRADIATOR, LOWER [10.2001 - 01.2004] 1CDFTV..CDE120 |
16461-27040 |
US $44.84 |
||
|
16462
|
16462
16462-6A300 Ring, O(For Radiator Upper Tank)[10.2001 - 01.2004] 1CDFTV..CDE120 |
16462-6A300 |
from US $13.10 |
||
|
16470
|
16470
16470-27040
Tank Assy, Radiator Reserve
[10.2001 - 01.2004] 1CDFTV..CDE120 |
16470-27040 |
— | ||
| replacements | |||||
|
16470
|
16470
16475-51010
Cap Sub-Assy, Radiator Reserve Tank
[10.2001 - 01.2004] 1CDFTV..CDE120 |
16475-51010 |
— | ||
|
16470
|
16470
16480-0G020
Tank Assy, Radiator Reserve
[10.2001 - 01.2004] 1CDFTV..CDE120 |
16480-0G020 |
— | ||
|
16470
|
16470
90467-21010 Clip(For Ventilation Hose No.2)[10.2001 - 01.2004] 1CDFTV..CDE120 |
90467-21010 |
from US $2.54 |
||
|
16471
|
16471
16401-53010
Cap Sub-Assy, Radiator Reserve Tank
[10.2001 - 01.2004] 1CDFTV..CDE120 |
16401-53010 |
— | ||
| replacements | |||||
|
16471
|
16471
16475-51010
Cap Sub-Assy, Radiator Reserve Tank
[10.2001 - 01.2004] 1CDFTV..CDE120 |
16475-51010 |
— | ||
|
16471
|
16471
16475-28140 Cap Sub-Assy, Radiator Reserve Tank[10.2001 - 01.2004] 1CDFTV..CDE120 |
16475-28140 |
from US $20.16 |
||
|
16523A
|
16523A
16523-21020 Cushion, Radiator Support[10.2001 - 01.2004] 1CDFTV..CDE120 |
16523-21020 |
from US $2.85 |
||
|
16533
|
16533
16533-21020 Support, Radiator, Upper[10.2001 - 01.2004] 1CDFTV..CDE120 |
16533-21020 |
US $36.79 |
||
|
16535
|
16535
16535-27010 Support, Radiator, Lower[10.2001 - 01.2004] 1CDFTV..CDE120 |
16535-27010 |
US $21.40 |
||
|
16571
|
16571
16571-27050 Hose, Radiator, InletRADIATOR, INLET [10.2001 - 01.2004] 1CDFTV..CDE120 |
16571-27050 |
US $38.15 |
||
|
16571A
|
16571A
90467-41002
Clamp Or Clip, Hose(For Radiator Inlet)
[04.2002 - 01.2004] 1CDFTV..CDE120 |
90467-41002 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90466-41008 Clamp, Hose(For Radiator Hose)[04.2002 - 01.2004] 1CDFTV..CDE120 |
90466-41008 |
from US $4.17 |
||
|
16571A
|
16571A
90467-41007
Clamp Or Clip, Hose(For Radiator Inlet)
[10.2001 - 04.2002] 1CDFTV..CDE120 |
90467-41007 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90466-41008 Clamp, Hose(For Radiator Hose)[10.2001 - 04.2002] 1CDFTV..CDE120 |
90466-41008 |
from US $4.17 |
||
|
16572
|
16572
16572-27040 Hose, Radiator, OutletRADIATOR, OUTLET [10.2001 - 01.2004] 1CDFTV..CDE120 |
16572-27040 |
US $24.75 |
||
|
16572A
|
16572A
90467-41002
Clamp Or Clip, Hose(For Radiator Inlet)
[04.2002 - 01.2004] 1CDFTV..CDE120 |
90467-41002 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90466-41008 Clamp, Hose(For Radiator Hose)[04.2002 - 01.2004] 1CDFTV..CDE120 |
90466-41008 |
from US $4.17 |
||
|
16572A
|
16572A
90467-41007
Clamp Or Clip, Hose(For Radiator Inlet)
[10.2001 - 04.2002] 1CDFTV..CDE120 |
90467-41007 |
— | ||
| replacement | |||||
|
16572A
|
16572A
90466-41008 Clamp, Hose(For Radiator Hose)[10.2001 - 04.2002] 1CDFTV..CDE120 |
90466-41008 |
from US $4.17 |
||
|
16701
|
16701
16711-27120 Shroud Sub-Assy, Fan[10.2001 - 01.2004] 1CDFTV..CDE120 |
16711-27120 |
US $129.58 |
||
|
17863A
|
17863A
17863-27010 Separator, Air IntakeAIR INTAKE [10.2001 - 01.2004] 1CDFTV..CDE120 |
17863-27010 |
US $41.35 |
||
|
91621B0814
|
91621B0814
91621-B0814
Bolt (For Transmission Control Cable Bracket)
|
91621-B0814 |
— | ||
| replacement | |||||
|
91621B0814
|
91621B0814
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
|
91651B0616
|
91651B0616
91651-B0616 BOLT WWASHER |
91651-B0616 |
from US $0.84 |
||
|
827111E360
|
827111E360
82711-1E360 Clamp, Wiring Harness |
82711-1E360 |
US $1.08 |
||
|
9009904117
|
9009904117
90099-04117 Bolt, Radiator Side Support Plate |
90099-04117 |
from US $0.62 |
||
|
9009904119
|
9009904119
90099-04119 BOLT WASHER HEAD |
90099-04119 |
from US $0.55 |
||
|
9009905164
|
9009905164
90099-05164 Nut |
90099-05164 |
from US $0.83 |
||
|
9048016044
|
9048016044
90480-16044 Grommet |
90480-16044 |
US $1.74 |
||
