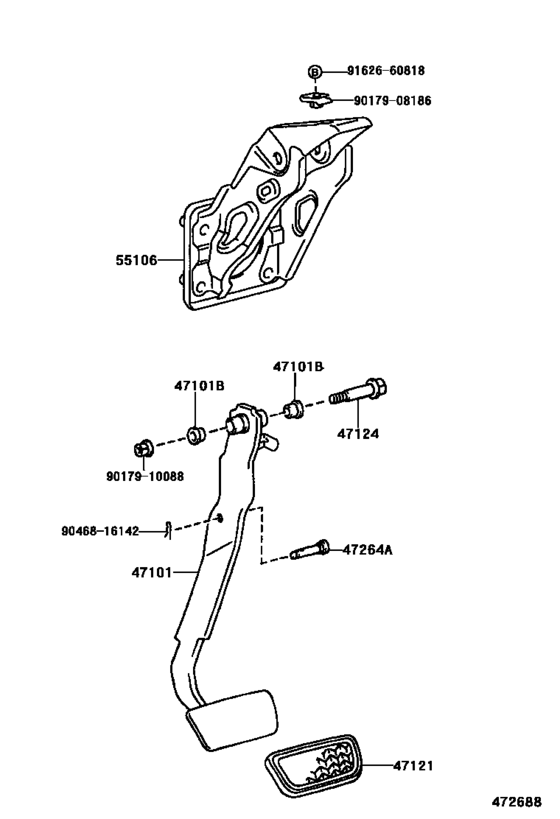

Brake Pedal & Bracket ([09.2001 - ] (0109- )) Diagram Toyota COROLLA VERSO
- Year
- 2001 - 2003
- Sales region
- Europe
- Frame
- CDE120
- grade
- TERRA
- ENGINE
- 1CDFTV
- TRANSMISSION
- MTM
- From
- 10.2001
- To
- 12.2003
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47101
|
47101
47101-12590 Pedal Sub-Assy, Brake[09.2001 - 01.2004] CDE120,ZZE12#..RHD..MTM |
47101-12590 |
US $35.24 |
||
|
47101B
|
47101B
90386-13015 Bush(For Clutch Pedal)[09.2001 - 01.2004] CDE120,ZZE12# |
90386-13015 |
from US $0.64 |
||
|
47121
|
47121
31321-52010 Pad, Brake Pedal[09.2001 - 01.2004] CDE120,ZZE12#..MTM |
31321-52010 |
from US $1.99 |
||
|
47124
|
47124
90109-10174 Shaft, Clutch Pedal[09.2001 - 01.2004] CDE120,ZZE12# |
90109-10174 |
US $2.48 |
||
|
47264A
|
47264A
47148-12070 Pin(For Push Rod)[09.2001 - 01.2004] CDE120,ZZE12# |
47148-12070 |
US $3.06 |
||
|
55106
|
55106
55106-13020 Support Sub-Assy, Brake Pedal[09.2001 - 01.2004] CDE120,ZZE12#..RHD |
55106-13020 |
US $45.43 |
||
|
9017908186
|
9017908186
90179-08186 New Genuine Part |
90179-08186 |
US $3.76 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $0.99 |
||
|
9046816142
|
9046816142
90468-16142 Clip(For Push Rod Clevis Pin) |
90468-16142 |
from US $0.82 |
||
|
9162660818
|
9162660818
91626-60818
Bolt (For Transmission Control Cable Bracket)
|
91626-60818 |
— | ||
| replacement | |||||
|
9162660818
|
9162660818
91621-J0814 Bolt (For Transmission Control Cable Bracket) |
91621-J0814 |
from US $0.80 |
||
